991104 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, CARB (SN: 020000 - 020999) Belts, Spindles, Idlers & Blades, 60" Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, CARB

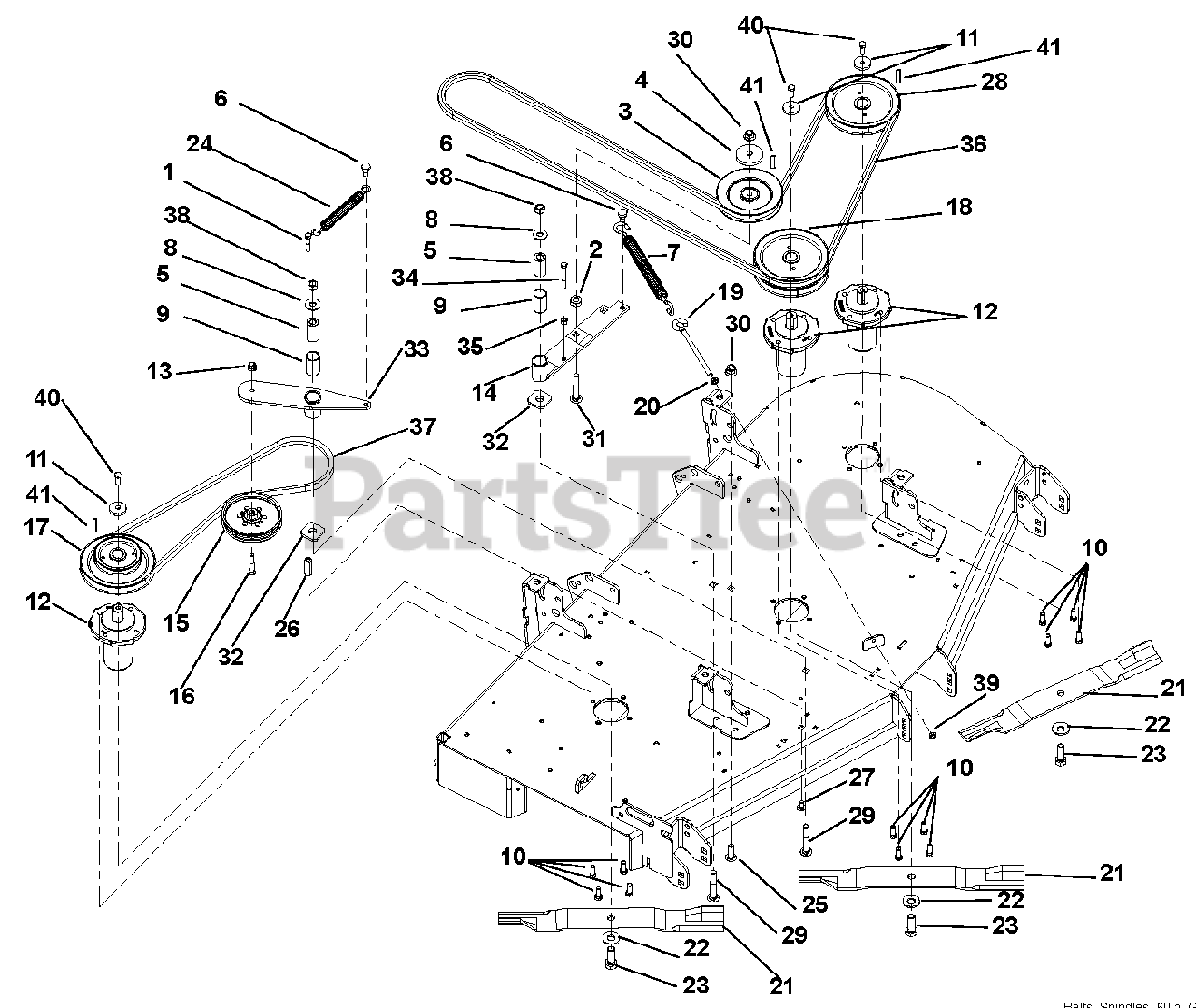

Belts, Spindles, Idlers & Blades, 60" Deck Parts Diagram

  • Title

1

Gravely 05957900

Bolt, Hex .38-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

2

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

0

3

Gravely 07300527

Sheave, .50" ID x 6.00" OD V-Idler

$53.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

5

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

6

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

7

Gravely 08300505

Spring, Extension (Deck Idler)

Note: (Deck Idler)

$25.99

$

In Stock, Qty 20+

0

8

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 04530500

Retainer, Sheave

$7.99

$

In Stock, Qty 20+

0

12

Gravely 59215400

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

13

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03774251

Weldment, Idler Arm

$68.99

$

In Stock, only 1 left!

0

15

Gravely D28050

Pulley, Flat Idler Engine to Deck
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

16

Gravely 05963300

Bolt, Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

17

Gravely 07329167

Pulley, Double 1" ID x 6.75" & 4.25" OD

$84.99

$

In Stock, Qty 7

0

18

Gravely 07328867

Pulley, Double 1" ID x 6.75" OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

19

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 09081200

Blade, 20.50" Mower

$29.99

$

In Stock, Qty 20+

0

Gravely 08866900

Blade, Mulch 20.50"

$37.99

$

In Stock, Qty 20+

0

22

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, Qty 9

0

23

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8 (Torque to 115-125 ft. lbs., 155 – 169 N-m)
(Superseded to 05901822)

Note: (Torque to 115-125 ft. lbs., 155 – 169 N-m)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

25

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread

$5.99

$

In Stock, only 1 left!

0

26

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

27

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07328967

Pulley, V, 1" ID x 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

29

Gravely 06200012

Bolt, Round Head Square Neck .50-13 x 3.25

$6.99

$

In Stock, only 1 left!

0

30

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00

$5.99

$

In Stock, Qty 19

0

32

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

33

Gravely 04519551

PT160 Deck Idler Arm Weldment, Black

$90.99

$

Usually ships in 4-12 days

0

34

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

35

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 07200510

Belt, 133.00 Wrapped Hex

$150.99

$

Usually ships in 4-12 days

0

37

Gravely 07200038

Belt, B 63.00 Raw Cogged

$67.99

$

In Stock, Qty 20+

0

38

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

39

Gravely 06537200

Nut, Lock Center Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 05963000

Bolt, Hex .38-16 x 2.75 Grade 8
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06611200

Key, Square .25 x .25 x 1.00

$2.99

$

In Stock, Qty 16

0
