991103 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, CARB (SN: 030000 - 039999) Tire Assembly Parts Diagram

Pro-Turn 52" Zero-Turn Mower, CARB

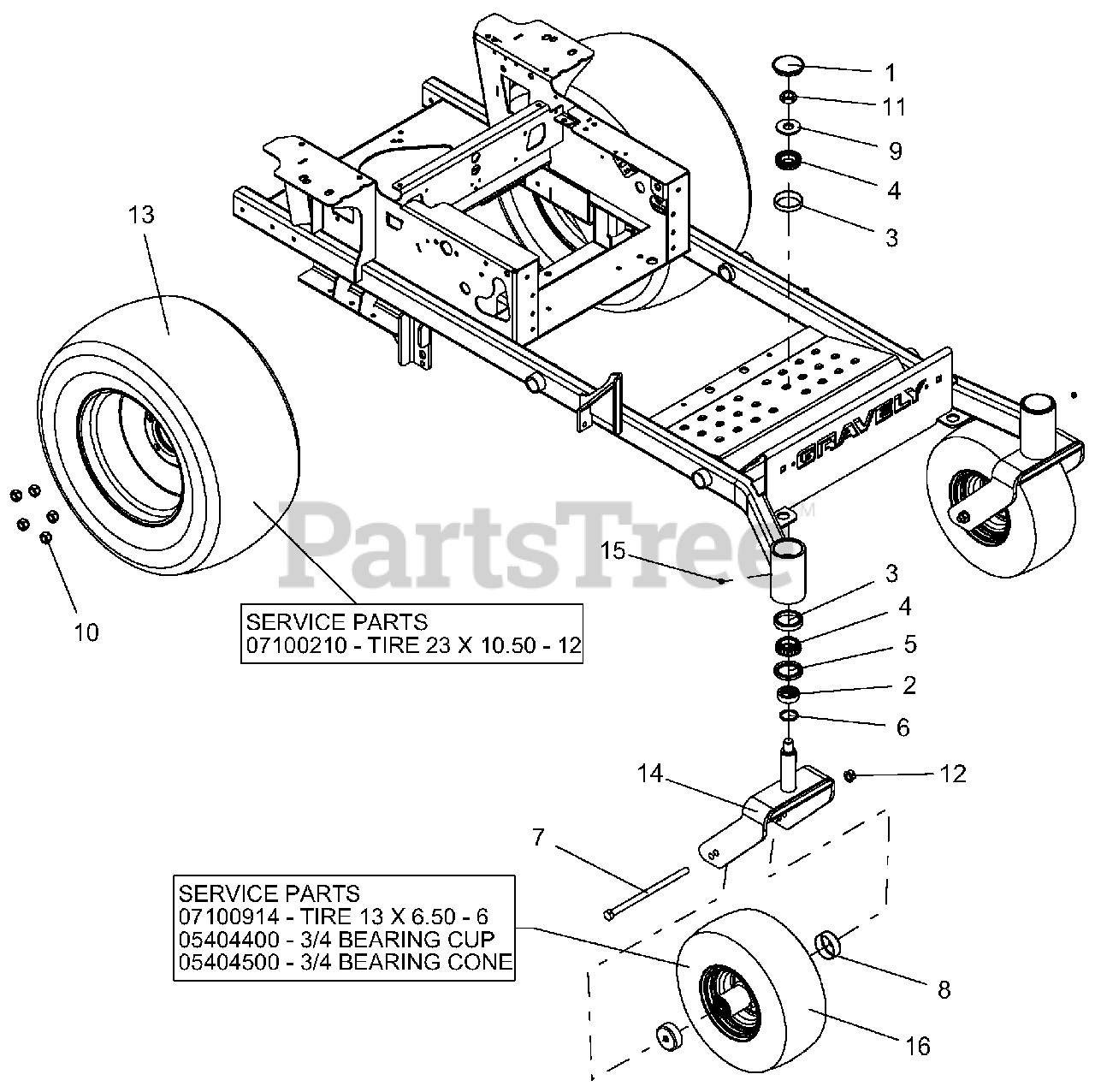

Tire Assembly Parts Diagram

  • Title

1

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

2

Gravely 04718600

SPCR, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 6

0

3

Gravely 05404600

BRG, CUP 2.328X.465

$13.99

$

In Stock, only 2 left!

0

4

Gravely 05404700

BRG, CONE 1.25 X .66

$20.99

$

In Stock, Qty 20+

0

5

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

6

Gravely 05600515

O-RING, .139 W X 1.234 ID

$2.49

$

In Stock, Qty 8

0

7

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

8

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

9

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06536900

@NUT-LK-CTR-JAM .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

12

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07100810

ASSM TIREWHEEL, 23X10-12
(Superseded to 07101116)

$290.99

$

In Stock, only 2 left!

0

14

Gravely 03924453

WMT, CASTER FORK - RED

$180.99

$

In Stock, only 1 left!

0

15

Gravely 07001723

PLUG, .250-28 X .185 HEX HEAD

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 07101025

TIRE/WHEEL, 13 X 6.50-6 SMOOTH

$136.99

$

In Stock, only 2 left!

0
