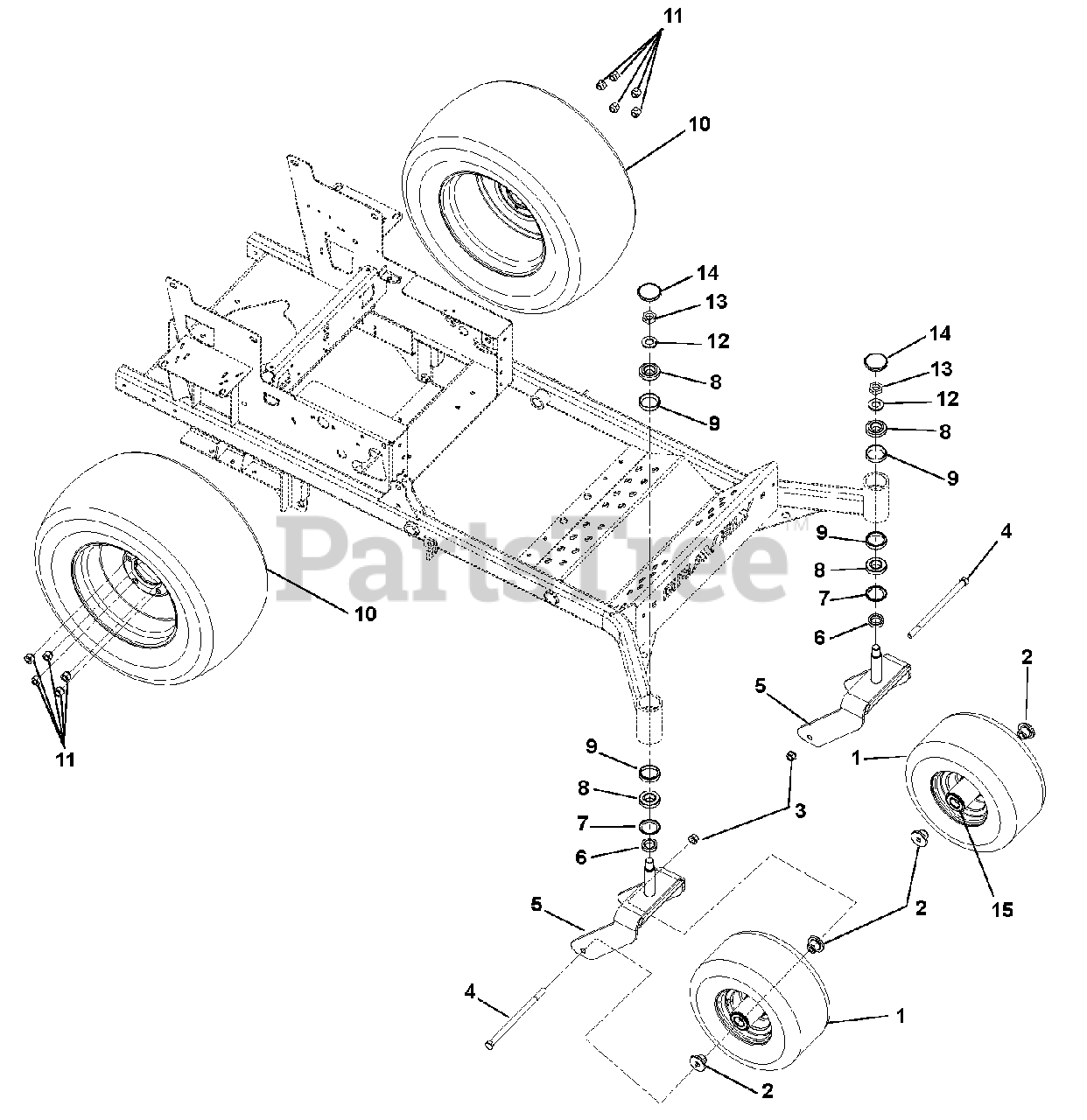

991102 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, CARB (SN: 021000 - 029999) Tire Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower, CARB

Tire Assembly Parts Diagram

  • Title

1

Gravely 07100903

Tire/Wheel Assembly, 13 x 6.50-6
(Superseded to 59103400)

$193.99

$

Usually ships in 4-12 days

0

Gravely 07100914

Tire, 13 x 6.50-6 Smooth

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 00675300

Spacer, Front Wheel

$7.99

$

In Stock, Qty 20+

0

3

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05961200

Bolt, Hex .50-13 x 9.00
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

5

Gravely 03924453

Fork

$180.99

$

In Stock, only 1 left!

0

6

Gravely 03760300

Spacer 1.258 x 1.75 x .550

$32.99

$

Usually ships in 4-12 days

0

7

Gravely 05600432

Seal, Oil 1.75 x 2.332 x .312

$11.99

$

In Stock, Qty 13

0

8

Gravely 05404700

Bearing, Cone 1.25 x .66

$20.99

$

In Stock, Qty 20+

0

9

Gravely 05404600

Bearing, Cup 2.328 x .465

$13.99

$

In Stock, only 2 left!

0

10

Gravely 07100810

Tire/Wheel Assembly, 23 x 10.50-12
(Superseded to 07101116)

$290.99

$

In Stock, only 2 left!

0

Gravely 07100210

Tire, 23 x 10.00-12
(Superseded to 07101043)

$

$

Not available

11

Gravely 06517600

Nut, Wheel .50-20 13/16 Across Flats, Automotive Type
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06439800

Washer, Flat Steel .812 x 2.00 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 06536900

Nut, Jam Center Lock .75-16

$5.99

$

In Stock, only 3 left!

0

14

Gravely 03925900

Cap, Dust

$11.99

$

In Stock, only 2 left!

0

15

Gravely 05435700

Bearing, 25 mm ID x 52 mm OD x 15 mm

$22.99

$

In Stock, Qty 19

0
