991102 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, CARB (SN: 020000 - 020999) Frame Parts Diagram

Pro-Turn 48" Zero-Turn Mower, CARB

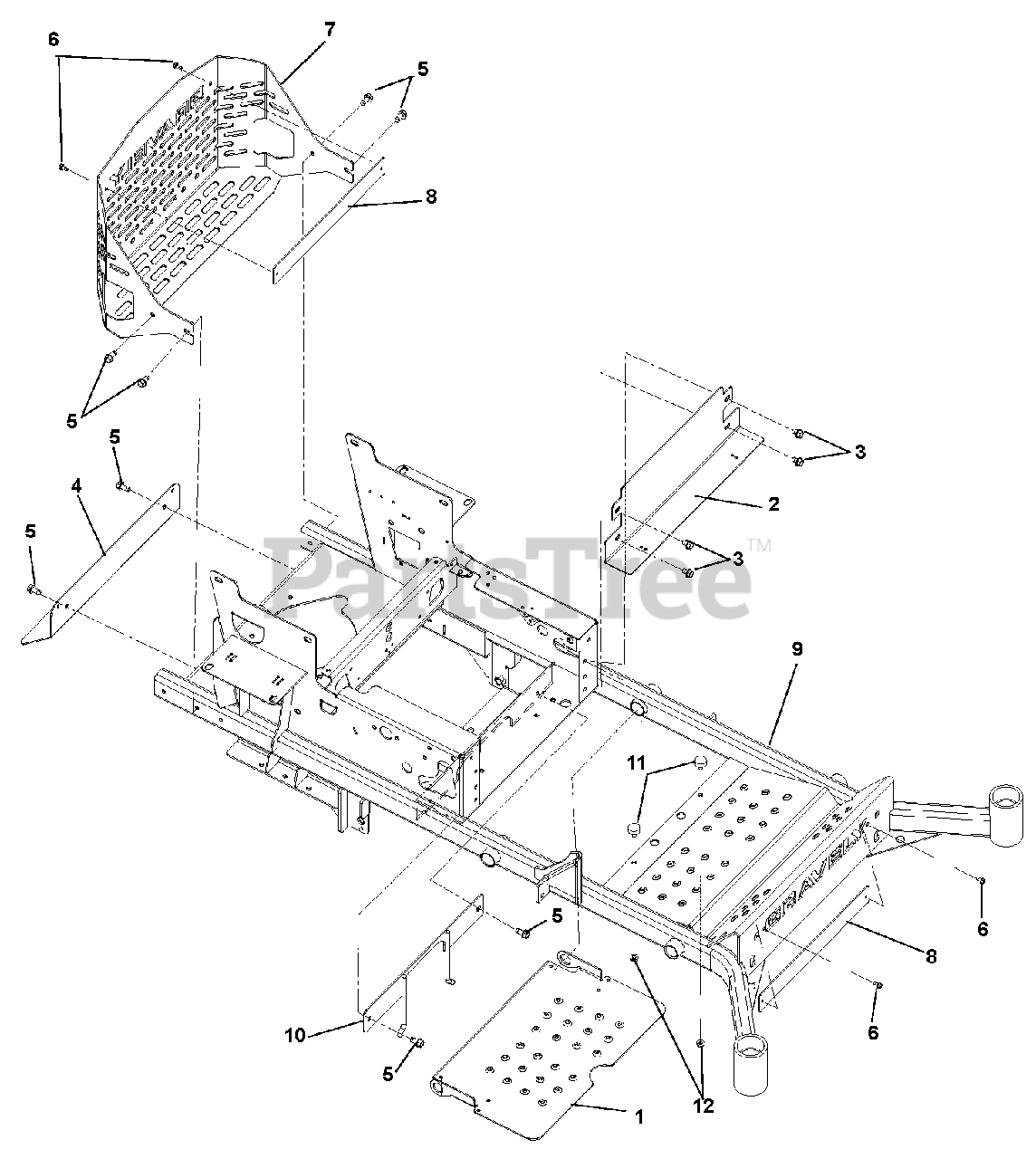

Frame Parts Diagram

  • Title

1

Gravely 04243851

Foot Plate

$

$

Not available

2

Gravely 04243953

Kick Plate

$58.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03948151

Muffler Heat Shield

$72.99

$

In Stock, only 1 left!

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03995253

Pro-Turn 100 Bumper

$174.99

$

Usually ships in 4-12 days

0

8

Gravely 03995751

Bumper Plate

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 04243253

Pro-Turn 100 60" Main Frame Weldment (991081, 097, 104)

Note: (991081, 097, 104)

$2344.99

$

Usually ships in 4-12 days

0

Gravely 04243153

Pro-Turn 100 48" – 52" Main Frame Weldment (991079, 080, 095, 096, 102, 103)

Note: (991079, 080, 095, 096, 102, 103)

$2344.99

$

Usually ships in 4-12 days

0

10

Gravely 04053651

PTO Belt Finger Weldment

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

12

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0
