991101 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki, CARB (SN: 035000 - 044999) Vapor Recovery Vent Lines (CARB Models) Parts Diagram

60" Zero-Turn Mower, Kawasaki, CARB

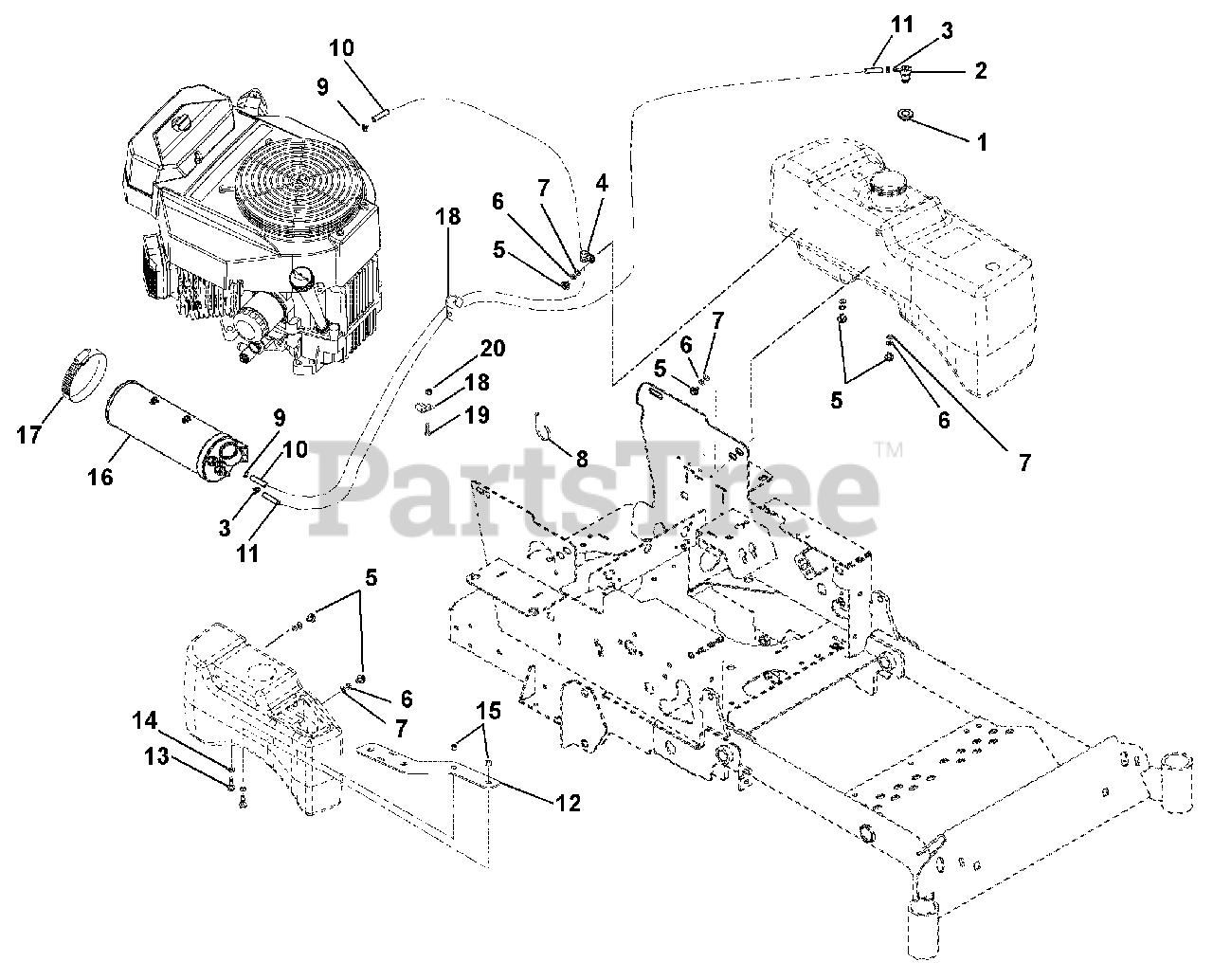

Vapor Recovery Vent Lines (CARB Models) Parts Diagram

  • Title

1

Gravely 04082700

Grommet

$3.49

$

In Stock, Qty 9

0

2

Gravely 04068910

Valve
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

3

Gravely 03278800

Hose, Clamp

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06908200

Clamp

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 05947800

Bolt, .31-18 x .62
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07517300

Tie, Cable LG 5.50

$

$

Not available

9

Gravely 04097700

Clamp, Spring .188

$

$

Not available

10

Gravely 03375900

Hose, Fuel .18"

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 03278100

Hose, Fuel .25"

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04546051

Plate, Canister Mount

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 07400007

Screw, Tapping .25-20 x 1.50 Hex Washer Head Thread Rolling

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 06426600

Washer, Flat Steel .281 x 1.000 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500012

Nut, Locking Nylon Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

16

Gravely 04545900

Canister, Carbon 9.36 Cap

$78.99

$

Usually ships in 4-12 days

0

17

Gravely 06940200

Clamp, Hose Worm 2.3/3.2 Stainless Steel #44

$

$

Not available

18

Gravely 06900036

Clamp, Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
