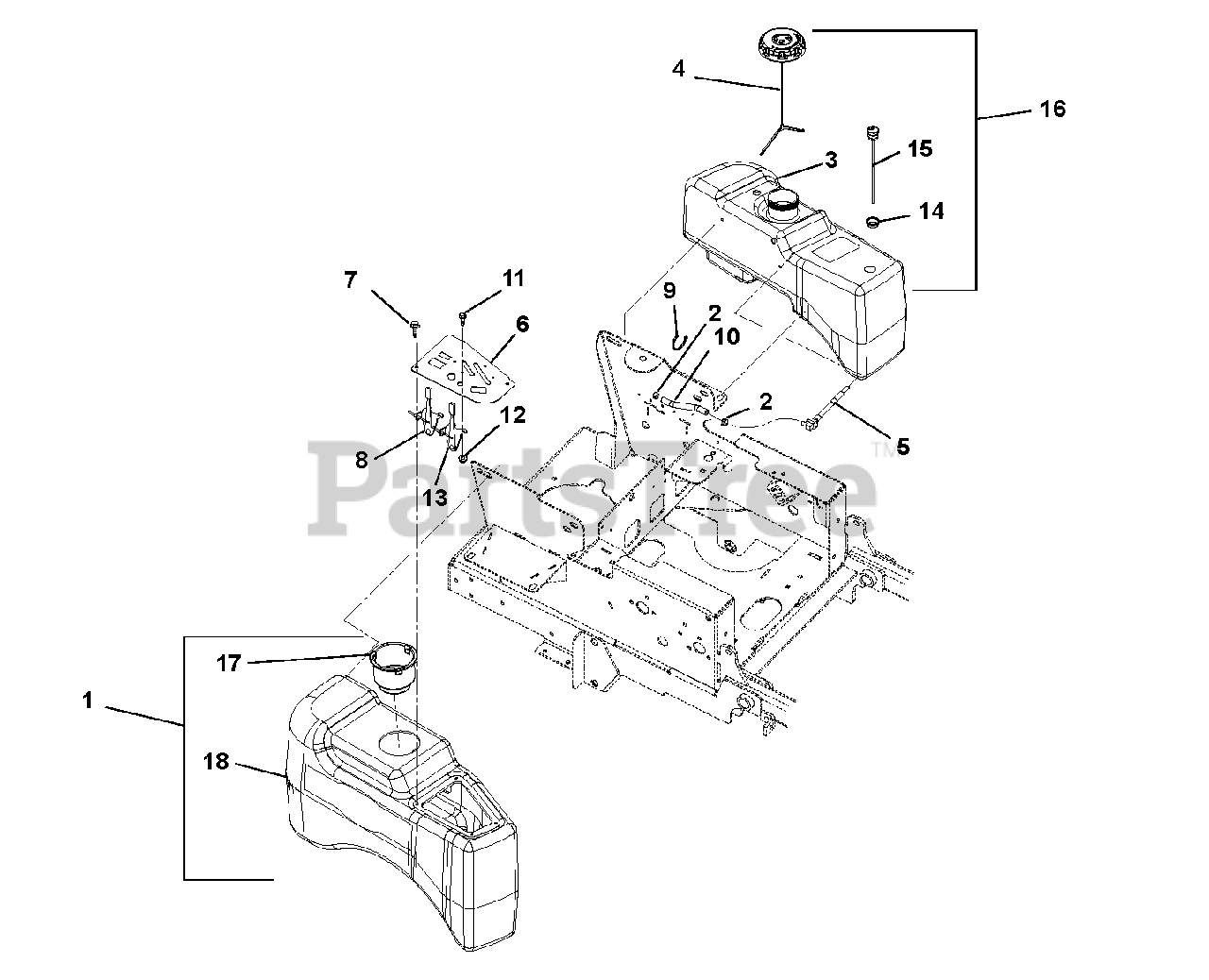

991098 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, Kawasaki, CARB (SN: 020000 - 029999) Fuel Tanks and Hoses Parts Diagram

44" Zero-Turn Mower, Kawasaki, CARB

Fuel Tanks and Hoses Parts Diagram

  • Title
1

Gravely 04685900

Assembly, Fender with Cupholder (Includes items 17 and 18)

Note: (Includes items 17 and 18)

$339.99

$

Usually ships in 4-12 days

0

2

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04391600

Tank, Fuel Left Hand
(Superseded to 04739000)

$594.99

$

Usually ships in 4-12 days

0

4

Gravely 04558000

Cap, Fuel Vent-in Autolock (991082, 083, 084, 090, 091)
(Superseded to 09190300)

Note: (991082, 083, 084, 090, 091)

$33.99

$

In Stock, Qty 20+

0

4

Gravely 04558100

Cap, Fuel Non-Vent Autolock (991098, 099, 100, 101)

Note: (991098, 099, 100, 101)

$22.99

$

Usually ships in 4-12 days

0

5

Gravely 04320900

Assembly, Tank Fuel Pick-up

$39.99

$

In Stock, Qty 20+

0

6

Gravely 04391851

Panel, Control

$

$

Not available

7

Gravely 06100213

Screw, Plastite .25 x 10 x .75 YZ
(Superseded to 06100231)

$1.49

$

In Stock, Qty 6

0

8

Gravely 06900422

Cable, Control (991082, 083, 084, 090, 098, 099, 100, 101)

Note: (991082, 083, 084, 090, 098, 099, 100, 101)

$39.99

$

In Stock, only 1 left!

0

8

Gravely 06900422

Cable, Control (991091)

Note: (991091)

$39.99

$

In Stock, only 1 left!

0

9

Gravely 07517300

Cable Tie

$

$

Not available

10

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06900320

Cable, Throttle Control (991090)

Note: (991090)

$52.99

$

In Stock, only 1 left!

0

14

Gravely 07500034

Grommet, Fuel Gauge

$6.49

$

In Stock, Qty 7

0

15

Gravely 07500029

Gauge, Remote Fuel 10.0"
(Superseded to 07500309)

$

$

Not available

16

Gravely 04334500

Assembly, Fuel Tank (Includes items 3, 4, 5, 14, 15 above and items 1, 2 on page 11)
(Superseded to 04739000)

Note: (Includes items 3, 4, 5, 14, 15 above and items 1, 2 on page 11)

$594.99

$

Usually ships in 4-12 days

0

17

Gravely 04192700

Cupholder

$

$

Not available

18

Gravely 04391700

Fender
(Superseded to 04685900)

$339.99

$

Usually ships in 4-12 days

0
