991097 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Engine - Kohler ECV740 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

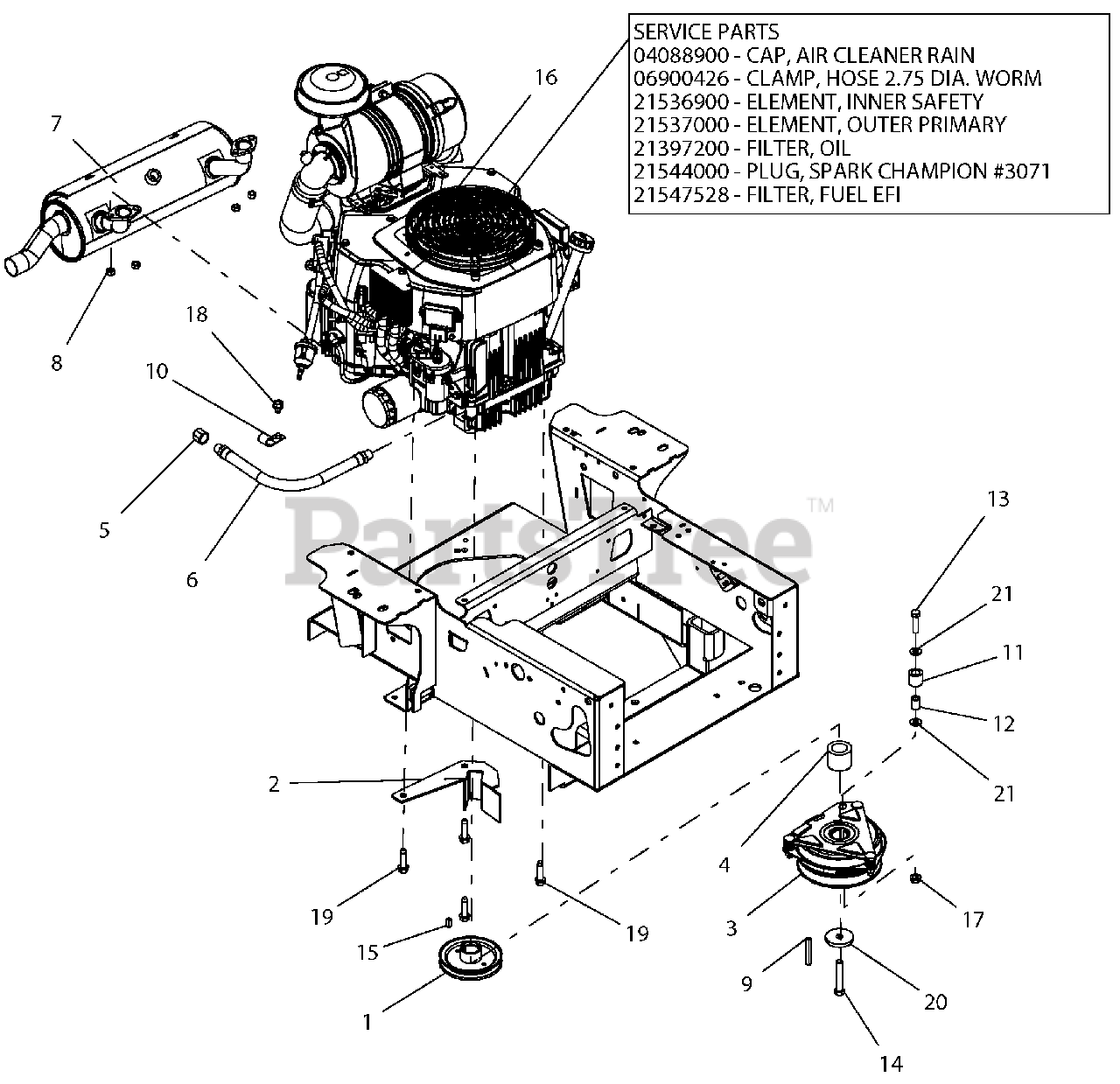

Engine - Kohler ECV740 Parts Diagram

  • Title

1

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE-BLACK
(Superseded to 07331600)

$

$

Not available

2

Gravely 03828051

WMT, 100I CLUTCH STOP - BLK

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

4

Gravely 03829700

SPACER, 1.125 X 1.75 X 1.40

$20.99

$

In Stock, only 1 left!

0

5

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

7

Gravely 04262200

MUFFLER, KOHLER EFI

$325.99

$

Usually ships in 4-12 days

0

8

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

9

Gravely 06610300

KEY, .25X.25X2.25

$2.99

$

In Stock, Qty 11

0

10

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

12

Gravely 08905500

BUSHING, SLV .407X.625X.813

$13.99

$

In Stock, only 1 left!

0

13

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

14

Gravely 05900036

BLT-HEX .44-20X2.50 GR5 EP80 YWZC

$13.99

$

In Stock, only 1 left!

0

15

Gravely 06602700

KEY-SQ .250X.250X.625

$3.99

$

In Stock, only 3 left!

0

16

Gravely 08201009

ENGINE, KOHLER EFI ECV740

$

$

Not available

17

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
