991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Seat Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

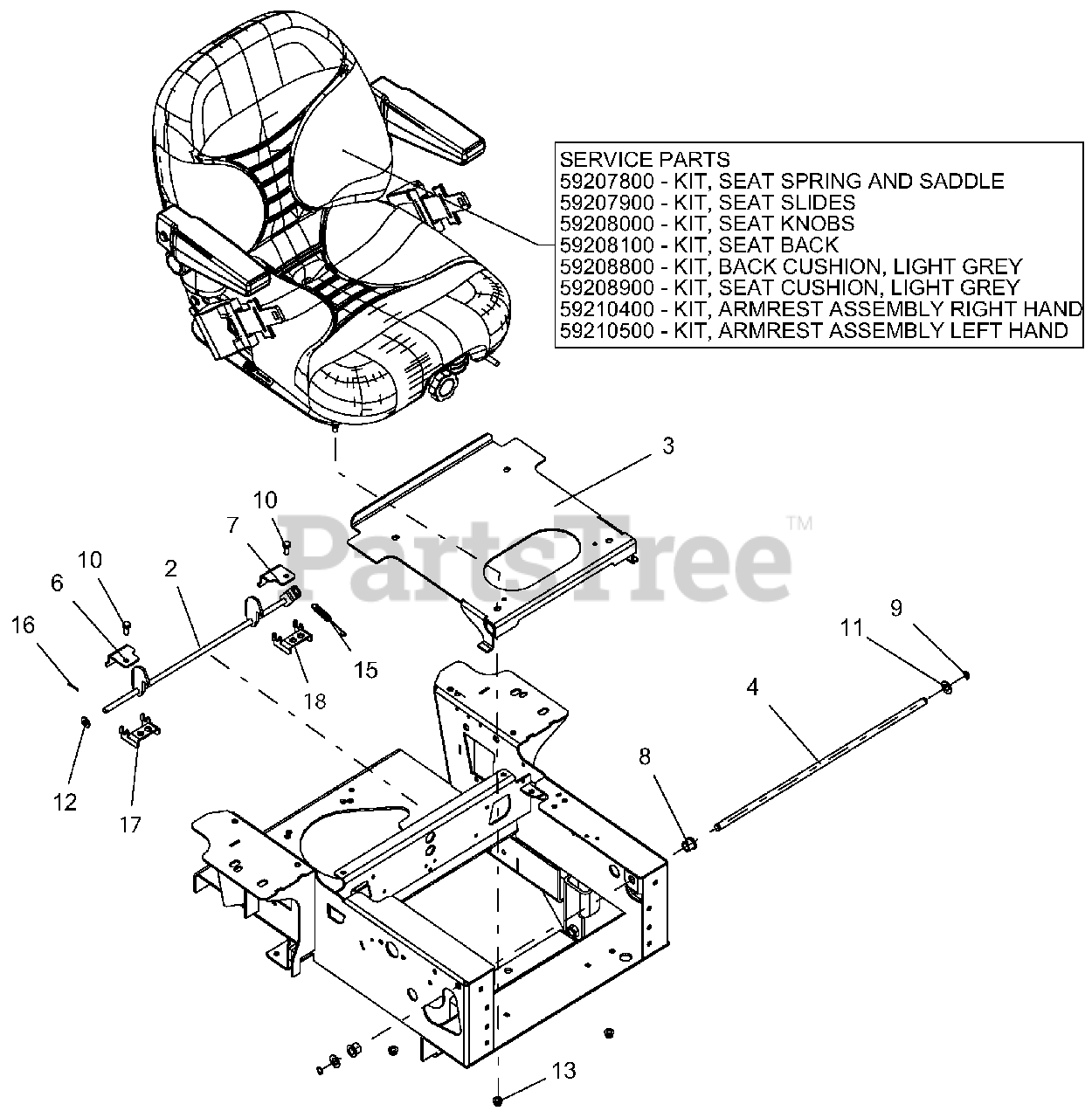

Seat Assembly Parts Diagram

  • Title

2

Gravely 03917751

WLDMT, PRO-TURN SEAT LATCH-BLACK

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 03933251

WLDMT, PRO-TURN 100 SEAT PLATE - BLK

$153.99

$

Usually ships in 4-12 days

0

4

Gravely 03837800

SHAFT, PT/PT100 SEAT PIVOT

$

$

Not available

6

Gravely 03917951

MOUNT, PT/PT100 RH TOP SEAT LATCH-BLACK

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 03918551

MOUNT, PT/PT100 LH TOP SEAT LATCH-BLACK

$

$

Not available

8

Gravely 05500901

BSHG, SHLDR EP .358-16X.30 HEX YZ

$5.99

$

In Stock, only 2 left!

0

9

Gravely 05717100

RG-RTNG-EXT .500x.050

$2.49

$

In Stock, Qty 8

0

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06425300

WSHR-FL-STL .531X1.000X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 08321100

SPRG, EXTENSION

$6.49

$

In Stock, Qty 6

0

16

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

17

Gravely 03930451

WLDMT, PT/PT100 RH SEAT LATCH MOUNT-BLACK

$22.99

$

Usually ships in 4-12 days

0

18

Gravely 03930551

WLDMT, PT/PT100 LH SEAT LATCH MOUNT-BLACK

$

$

Not available
