991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Fuel System - EFI Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

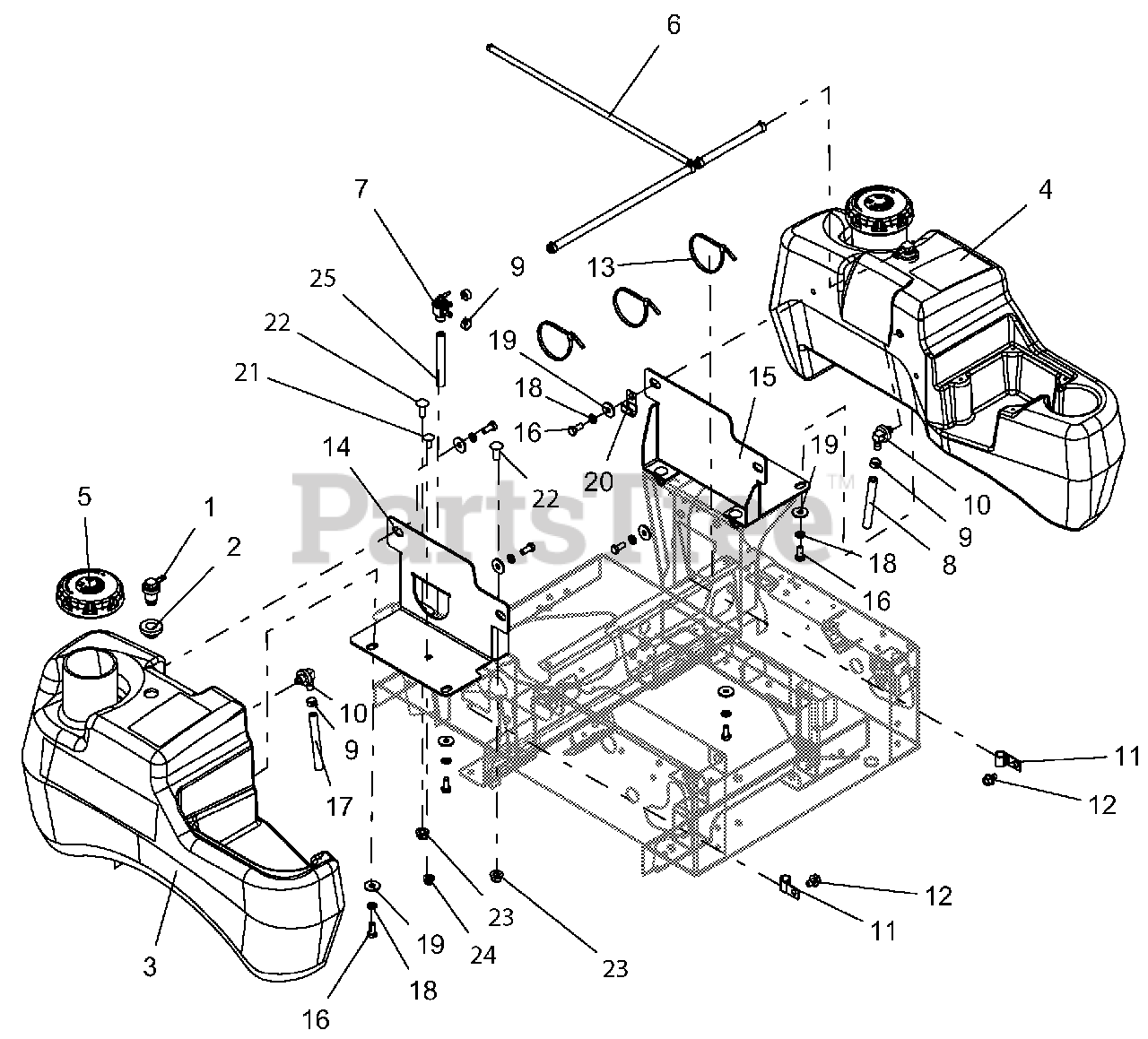

Fuel System - EFI Parts Diagram

  • Title

1

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

3

Gravely 04340600

TANK, GAS - RH MEDIUM GRAVELY

$271.99

$

Usually ships in 4-12 days

0

4

Gravely 04340700

TANK, GAS - LH MEDIUM GRAVELY

$271.99

$

Usually ships in 4-12 days

0

5

Gravely 04558000

CAP, FUEL VENT-IN AUTOLOCK
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

6

Gravely 04501400

PT100, KOHLER FUEL LINE ASSY

$

$

Not available

7

Gravely 09258200

VALVE, FUEL

$47.99

$

In Stock, Qty 20+

0

8

Gravely 03278100

.25 LOW-PERM GAS HOSE 40.00" LG - LH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04320900

ASS'Y, SMALL/ MED TANK FUEL PICK-UP

$39.99

$

In Stock, Qty 20+

0

11

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

14

Gravely 04517453

BRKT, RH MEDIUM FUEL TANK MTG (RED)

Note: (RED)

$

$

Not available

15

Gravely 04517553

BRKT, RH MEDIUM FUEL TANK MTG (RED)

Note: (RED)

$

$

Not available

16

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

.25 LOW-PERM GAS HOSE 18.50" LG - RH TANK TO VALVE

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06437500

WSHR-FL-STL .328X1.00X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

20

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 5

0

21

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 03278100

.25 LOW-PERM GAS HOSE 7.50" VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0
