991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Transmission - RH Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

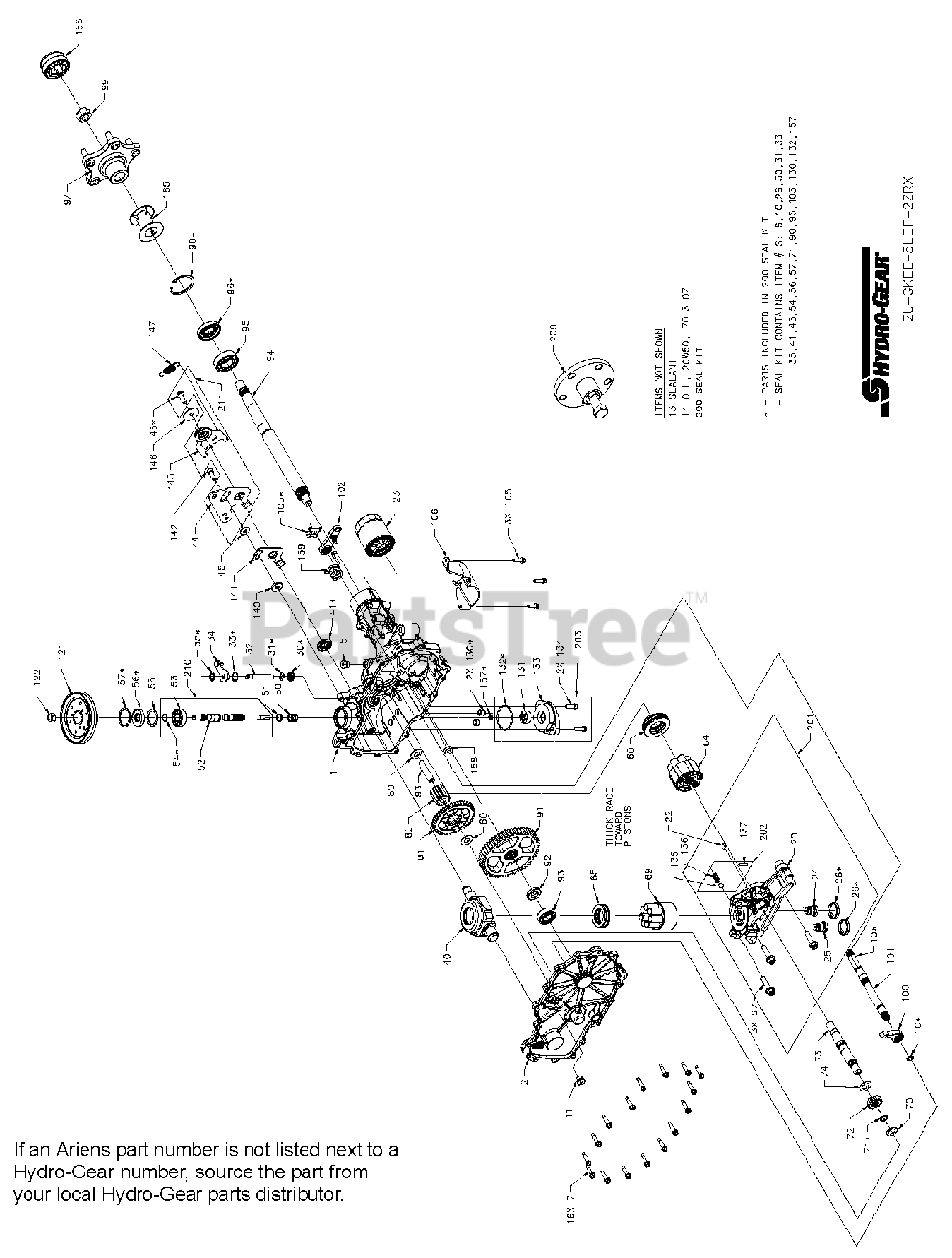

Transmission - RH Parts Diagram

  • Title

1

KIT, HOUSING,MAIN,RH,CHRG,CNTL

KIT, HOUSING,MAIN,RH,CHRG,CNTL

Note: HydroGear p/n:71984

$

$

Not available

HOUSING, MAIN, RH, CHRG, CNTL

HOUSING, MAIN, RH, CHRG, CNTL

Note: HydroGear p/n:

$

$

Not available

BUSHING, .624 x .719 x .562

BUSHING, .624 x .719 x .562

Note: HydroGear p/n:

$

$

Not available

BRG, JRNL .86 x .98 x .79

BRG, JRNL .86 x .98 x .79

Note: HydroGear p/n:

$

$

Not available

PIN, .25 x .375

PIN, .25 x .375

Note: HydroGear p/n:

$

$

Not available

-105

HFHCS 1/4-20 x .625

HFHCS 1/4-20 x .625

Note: HydroGear p/n:

$

$

Not available

-134

HFHCS 1/4-20 x .625

HFHCS 1/4-20 x .625

Note: HydroGear p/n:

$

$

Not available

2

KIT, COVER, SIDE, RH

KIT, COVER, SIDE, RH

Note: HydroGear p/n:71990

$

$

Not available

COVER, SIDE, RH

COVER, SIDE, RH

Note: HydroGear p/n:

$

$

Not available

5

PLUG 9/16-18 (METAL)

PLUG 9/16-18 (METAL)

Note: HydroGear p/n:9005110-5600

$

$

Not available

7

HFHCS 1/4-20 x 1.125"

HFHCS 1/4-20 x 1.125"

Note: HydroGear p/n:53246

$

$

Not available

10

O-RING - 111 .103 x 424

O-RING - 111 .103 x 424

Note: HydroGear p/n:51804

$

$

Not available

11

PLUG 9/16-18 (METAL)

PLUG 9/16-18 (METAL)

Note: HydroGear p/n:9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT

Note: HydroGear p/n:50928

$116.99

$

In Stock, only 1 left!

0

14

SYNTHETIC OIL, 15W50

SYNTHETIC OIL, 15W50

Note: HydroGear p/n:

$

$

Not available

22

PLATE, BYPASS

PLATE, BYPASS

Note: HydroGear p/n:51448

$

$

Not available

23

Gravely 21545100

FILTER, OIL

Note: HydroGear p/n:52114

$

$

Not available

26

SEAL, PLUG 1.250 x .250

SEAL, PLUG 1.250 x .250

Note: HydroGear p/n:52162

$

$

Not available

27

HFHCS 3/8-16 x 1.5 (PATCH)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: HydroGear p/n:52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 x .75 x .25

Note: HydroGear p/n:51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 8622500

RING, RET .375 EXTRNL

Note: HydroGear p/n:51628

$

$

Currently unavailable

32

ROD, BYPASS

ROD, BYPASS

Note: HydroGear p/n:52136

$

$

Not available

33

RING, RET .750 INTRNL

RING, RET .750 INTRNL

Note: HydroGear p/n:51627

$

$

Not available

34

ARM, BYPASS

ARM, BYPASS

Note: HydroGear p/n:51910

$

$

Not available

35

Gravely 21543848

RING, RTNG .375 EXT

Note: HydroGear p/n:51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: HydroGear p/n:51048

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 12 x 32 x 7

Note: HydroGear p/n:51140

$9.49

$

Usually ships in 4-12 days

0

45

WASHER .34 x .88 x .06

WASHER .34 x .88 x .06

Note: HydroGear p/n:44130

$

$

Not available

46

Gravely 21543854

TWHCS 5/16-24 x 1.00 (PATCH)

Note: HydroGear p/n:51812

$2.99

$

Usually ships in 4-12 days

0

50

SPRING, BLOCK

SPRING, BLOCK

Note: HydroGear p/n:2003014

$

$

Not available

51

Gravely 08609400

WASHER-FLAT .59 x .79 x .04

Note: HydroGear p/n:2003017

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23 x 1.56 x .04

Note: HydroGear p/n:50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 x 40 x 7

Note: HydroGear p/n:51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RETAINING

Note: HydroGear p/n:50329

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

BEARING, THRUST

Note: HydroGear p/n:51462

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

ASS'Y, CYLINDER BLOCK, 16cc

Note: HydroGear p/n:71579

$

$

Not available

65

BRG, THRUST PLASTIC CAGE

BRG, THRUST PLASTIC CAGE

Note: HydroGear p/n:53502

$

$

Not available

69

ASS'Y, BLOCK 7 PISTON

ASS'Y, BLOCK 7 PISTON

Note: HydroGear p/n:71971

$

$

Not available

70

WASHER .63 x 1.0 x .05

WASHER .63 x 1.0 x .05

Note: HydroGear p/n:44371

$

$

Not available

71

RING, RETAINING_.625

RING, RETAINING_.625

Note: HydroGear p/n:44145

$

$

Not available

72

GEAR, 13T, STEEL

GEAR, 13T, STEEL

Note: HydroGear p/n:52342

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: HydroGear p/n:52150

$

$

Not available

74

WASHER .72 x 1.16 x .04

WASHER .72 x 1.16 x .04

Note: HydroGear p/n:51069

$

$

Not available

80

Gravely 21543724

WASHER .5 x 1.0 x .03

Note: HydroGear p/n:50132

$

$

Not available

81

GEAR, 46T

GEAR, 46T

Note: HydroGear p/n:52343

$

$

Not available

82

GEAR, 11T, STEEL

GEAR, 11T, STEEL

Note: HydroGear p/n:52586

$

$

Not available

83

JACK SHAFT (PIN)

JACK SHAFT (PIN)

Note: HydroGear p/n:51083

$

$

Not available

90

RING, RET 2.06 INT

RING, RET 2.06 INT

Note: HydroGear p/n:50859

$

$

Not available

91

GEAR, 54T

GEAR, 54T

Note: HydroGear p/n:53327

$

$

Not available

92

SPACER, .750 x 1.320 x .257

SPACER, .750 x 1.320 x .257

Note: HydroGear p/n:53336

$

$

Not available

93

BEARING, BALL, .75 x 40 x 12

BEARING, BALL, .75 x 40 x 12

Note: HydroGear p/n:44121

$

$

Not available

94

SHAFT, AXLE

SHAFT, AXLE

Note: HydroGear p/n:53527

$

$

Not available

95

Gravely 8614000

BRG, BALL 25.4 x 52 x 15

Note: HydroGear p/n:50771

$

$

Currently unavailable

96

Gravely 08614300

SEAL, LIP 1.000 x 2.049 x .375

Note: HydroGear p/n:50772

$16.99

$

In Stock, only 1 left!

0

97

KIT, HUB, 5 BOLT

KIT, HUB, 5 BOLT

Note: HydroGear p/n:71691

$

$

Not available

HUB, TAPER 3.56, 5 BOLT

HUB, TAPER 3.56, 5 BOLT

Note: HydroGear p/n:

$

$

Not available

STUD, 1/2-20 x 1.5 (RIB NECK)

STUD, 1/2-20 x 1.5 (RIB NECK)

Note: HydroGear p/n:

$

$

Not available

99

8621100

NUT, HEX LOCK 3/4-16

Note: HydroGear p/n:50863

$

$

Not available

100

PAWL, BRAKE

PAWL, BRAKE

Note: HydroGear p/n:52776

$

$

Not available

101

SHAFT, BRAKE

SHAFT, BRAKE

Note: HydroGear p/n:52640

$

$

Not available

102

KIT, HANDLE, ACTUATING

KIT, HANDLE, ACTUATING

Note: HydroGear p/n:71980

$

$

Not available

103

CLIP, RETAINING

CLIP, RETAINING

Note: HydroGear p/n:52027

$

$

Not available

105

SCREW, HEX FLANGE 1/4-20 x .625

SCREW, HEX FLANGE 1/4-20 x .625

Note: HydroGear p/n:53464

$

$

Not available

106

GUARD, FILTER, RH

GUARD, FILTER, RH

Note: HydroGear p/n:52257

$

$

Not available

121

PULLEY, 4.5 x 1.625

PULLEY, 4.5 x 1.625

Note: HydroGear p/n:53218

$

$

Not available

122

Gravely 21543703

NUT,HEX JAM 1/2-20 W/ PATCH

Note: HydroGear p/n:44133

$4.99

$

In Stock, only 4 left!

0

130

TUBE, CONNECTING

TUBE, CONNECTING

Note: HydroGear p/n:52157

$

$

Not available

131

GEROTOR ASSEMBLY (1.9 cc/rev)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: HydroGear p/n:50273

$

$

Not available

132

Gravely 21544005

O-RING, -137, 0.103 x 2.050

Note: HydroGear p/n:52250

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

COVER, CHARGE PUMP

Note: HydroGear p/n:53468

$

$

Not available

134

SCREW, HEX FLANGE 1/4-20 x .625

SCREW, HEX FLANGE 1/4-20 x .625

Note: HydroGear p/n:53464

$

$

Not available

140

SPACER .320 x 1.005 x .179

SPACER .320 x 1.005 x .179

Note: HydroGear p/n:52527

$

$

Not available

141

ARM, NEUTRAL RIGHT

ARM, NEUTRAL RIGHT

Note: HydroGear p/n:51945

$

$

Not available

142

SHCS 5/16-24 x 1 PATCH

SHCS 5/16-24 x 1 PATCH

Note: HydroGear p/n:51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

Note: HydroGear p/n:51950

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTNSN RTN-34LBS

Note: HydroGear p/n:51833

$

$

Not available

157

Gravely 21544001

SEAL, LIP 8 x 12 x 3 VC

Note: HydroGear p/n:53456

$

$

Not available

158

MAGNET, RING

MAGNET, RING

Note: HydroGear p/n:51100

$

$

Not available

159

SPRING, TORSION CCW

SPRING, TORSION CCW

Note: HydroGear p/n:53429

$

$

Not available

165

TUBE, AXLE 2.04

TUBE, AXLE 2.04

Note: HydroGear p/n:53496

$

$

Not available

200

KIT, SEAL

KIT, SEAL

Note: HydroGear p/n:71976

$

$

Not available

-10

O-RING - 111 .103 x 424

O-RING - 111 .103 x 424

Note: HydroGear p/n:

$

$

Not available

-26

SEAL, PLUG 1.250 x .250

SEAL, PLUG 1.250 x .250

Note: HydroGear p/n:

$

$

Not available

-30

SEAL, LIP .375 x .75 x .25

SEAL, LIP .375 x .75 x .25

Note: HydroGear p/n:

$

$

Not available

-31

RING, RET .375 EXTRNL

RING, RET .375 EXTRNL

Note: HydroGear p/n:

$

$

Not available

-33

RING, RET .750 INTRNL

RING, RET .750 INTRNL

Note: HydroGear p/n:

$

$

Not available

-35

RING, RTNG .375 EXT

RING, RTNG .375 EXT

Note: HydroGear p/n:

$

$

Not available

-41

SEAL, LIP 12 x 32 x 7

SEAL, LIP 12 x 32 x 7

Note: HydroGear p/n:

$

$

Not available

-46

TWHCS 5/16-24 x 1.00 (PATCH)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: HydroGear p/n:

$

$

Not available

54

RING, RET. WIRE .561

RING, RET. WIRE .561

Note: HydroGear p/n:

$

$

Not available

-56

SEAL, LIP 17 x 40 x 7

SEAL, LIP 17 x 40 x 7

Note: HydroGear p/n:

$

$

Not available

-57

RING, RETAINING

RING, RETAINING

Note: HydroGear p/n:

$

$

Not available

-71

RING, RETAINING_.625

RING, RETAINING_.625

Note: HydroGear p/n:

$

$

Not available

-90

RING, RET 2.06 INT

RING, RET 2.06 INT

Note: HydroGear p/n:

$

$

Not available

-96

SEAL, LIP 1.000 x 2.049 x .375

SEAL, LIP 1.000 x 2.049 x .375

Note: HydroGear p/n:

$

$

Not available

-103

CLIP, RETAINING

CLIP, RETAINING

Note: HydroGear p/n:

$

$

Not available

-130

TUBE, CONNECTING

TUBE, CONNECTING

Note: HydroGear p/n:

$

$

Not available

-132

O-RING, -137, 0.103 x 2.050

O-RING, -137, 0.103 x 2.050

Note: HydroGear p/n:

$

$

Not available

-157

SEAL, LIP 8 x 12 x 3 VC

SEAL, LIP 8 x 12 x 3 VC

Note: HydroGear p/n:

$

$

Not available

201

KIT, CENTER SECTION, RH, CHRG

KIT, CENTER SECTION, RH, CHRG

Note: HydroGear p/n:71972

$

$

Not available

20

CENTER SECTION, RH, CHRG

CENTER SECTION, RH, CHRG

Note: HydroGear p/n:

$

$

Not available

-22

PLATE, BYPASS

PLATE, BYPASS

Note: HydroGear p/n:

$

$

Not available

24

SHOCK VALVE ASSEMBLY 220 BAR

SHOCK VALVE ASSEMBLY 220 BAR

Note: HydroGear p/n:

$

$

Not available

25

SHOCK VALVE ASSEMBLY 220 BAR

SHOCK VALVE ASSEMBLY 220 BAR

Note: HydroGear p/n:

$

$

Not available

-27

HFHCS 3/8-16 x 1.5 (PATCH)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: HydroGear p/n:

$

$

Not available

BEARING, JOURNAL .50 x .59 x .50

BEARING, JOURNAL .50 x .59 x .50

Note: HydroGear p/n:

$

$

Not available

135

BALL 7/16

BALL 7/16

Note: HydroGear p/n:

$

$

Not available

136

SPRING, RELIEF

SPRING, RELIEF

Note: HydroGear p/n:

$

$

Not available

137

PIN, SPRING .125 x .875

PIN, SPRING .125 x .875

Note: HydroGear p/n:

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: HydroGear p/n:71436

$

$

Not available

203

KIT, CHARGE PUMP

KIT, CHARGE PUMP

Note: HydroGear p/n:71977

$

$

Not available

-131

GEROTOR ASSEMBLY (1.9 cc/rev)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: HydroGear p/n:

$

$

Not available

-133

COVER, CHARGE PUMP

COVER, CHARGE PUMP

Note: HydroGear p/n:

$

$

Not available

-134

HFHCS 1/4-20 x .75

HFHCS 1/4-20 x .75

Note: HydroGear p/n:

$

$

Not available

209

HUB PULLER, 5 BOLT

HUB PULLER, 5 BOLT

Note: HydroGear p/n:71784

$

$

Not available

210

KIT, INPUT SHAFT

KIT, INPUT SHAFT

Note: HydroGear p/n:71978

$

$

Not available

52

SHAFT, INPUT

SHAFT, INPUT

Note: HydroGear p/n:

$

$

Not available

53

BRG, BALL 17 x 40 x 12

BRG, BALL 17 x 40 x 12

Note: HydroGear p/n:

$

$

Not available

54

RING, RET WIRE .561 ID

RING, RET WIRE .561 ID

Note: HydroGear p/n:

$

$

Not available

211

KIT, RTN, CW

KIT, RTN, CW

Note: HydroGear p/n:71597

$

$

Not available

44

ARM, CONTROL, RH

ARM, CONTROL, RH

Note: HydroGear p/n:

$

$

Not available

145

ASSEMBLY, RTN, CW

ASSEMBLY, RTN, CW

Note: HydroGear p/n:

$

$

Not available
