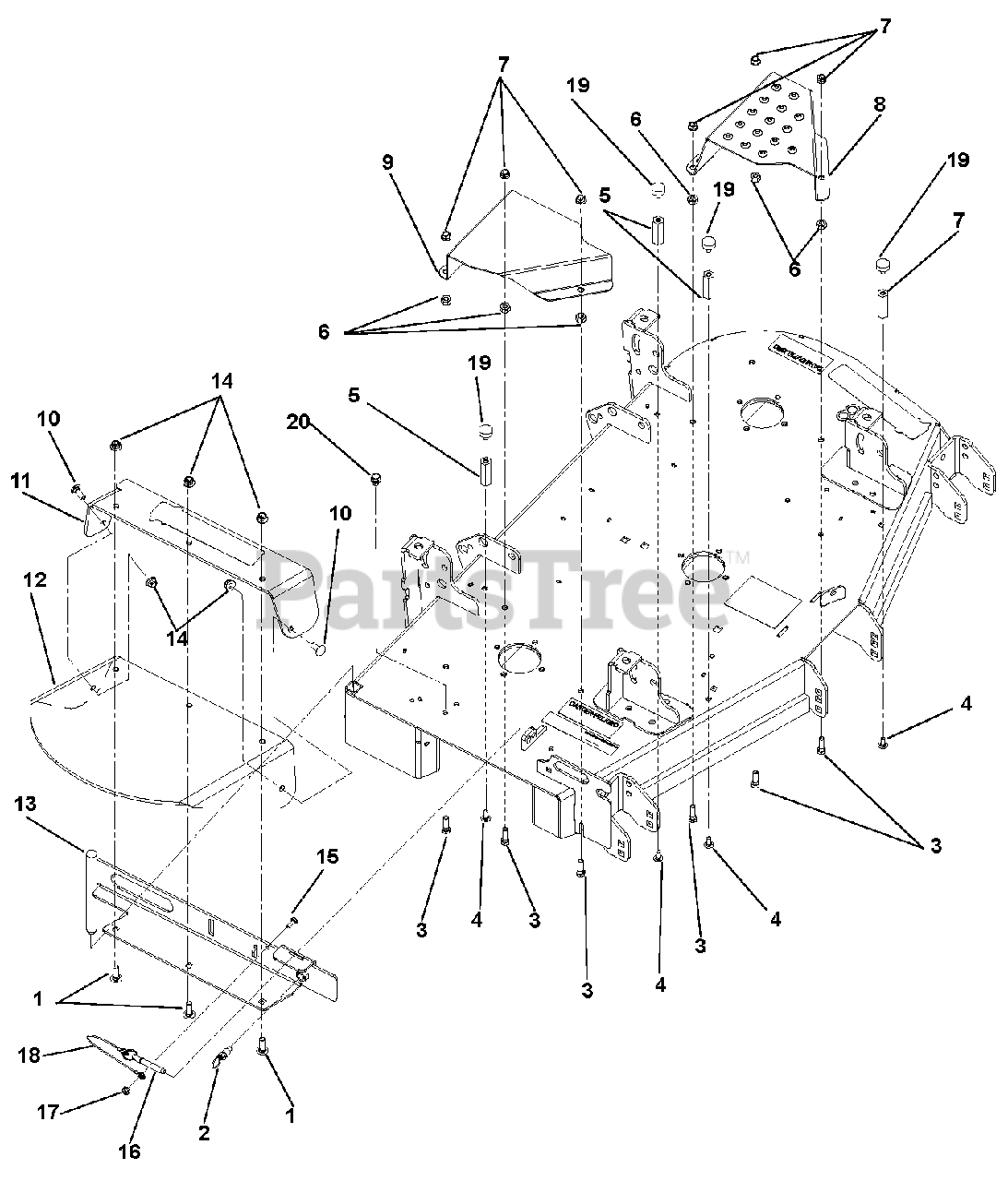

991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Discharge Chute And Belt Covers Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

Discharge Chute And Belt Covers Parts Diagram

  • Title

1

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07000037

Pull Pin

$10.99

$

In Stock, only 1 left!

0

3

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

6

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03977151

Guard, Left Hand Deck Belt, 44 – 52 (991079, 080, 095, 096)

Note: (991079, 080, 095, 096)

$90.99

$

In Stock, only 1 left!

0

Gravely 03977251

Guard, Left Hand Deck Belt, 60 (991081)

Note: (991081)

$71.99

$

In Stock, only 2 left!

0

9

Gravely 04051251

Guard, Right Hand Spindle Sheave, 44 – 52 (991079, 095)

Note: (991079, 095)

$60.99

$

Usually ships in 4-12 days

0

Gravely 03982151

Guard, Right Hand Deck Belt, 44 – 52 (991080, 096)

Note: (991080, 096)

$49.99

$

Usually ships in 4-12 days

0

Gravely 03982251

Guard, Right Hand Deck Belt, 60 – 66 (991081)

Note: (991081)

$60.99

$

Usually ships in 4-12 days

0

10

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

11

Gravely 00472353

Rubber Discharge Chute Support

$110.99

$

Usually ships in 4-12 days

0

12

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

13

Gravely 00472453

Weldment, Discharge Chute Support, 48" (991079, 095)
(Superseded to 04757453)

Note: (991079, 095)

$112.99

$

Usually ships in 4-12 days

0

Gravely 00472553

Weldment, Discharge Chute Support, 52" – 60" (991080, 081, 096)
(Superseded to 04727953)

Note: (991080, 081, 096)

$129.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05946800

Bolt, Hex .25-20 x .75 (991079, 095)
(Superseded to 05901716)

Note: (991079, 095)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 01593500

Pin, Spring Ball .375OD x 1.50 (991079, 095)

Note: (991079, 095)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06543500

Nut, Locking Top Flange .25-20 (991079, 095)
(Superseded to 06500903)

Note: (991079, 095)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06900321

Cable, 6.0 Lanyard, Nylon (991079, 095)

Note: (991079, 095)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

20

Gravely 07412900

Screw, Self Tapping .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
