991090 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, Kawasaki (SN: 060000 & Above) Control Panel - Kawasaki Parts Diagram

44" Zero-Turn Mower, Kawasaki

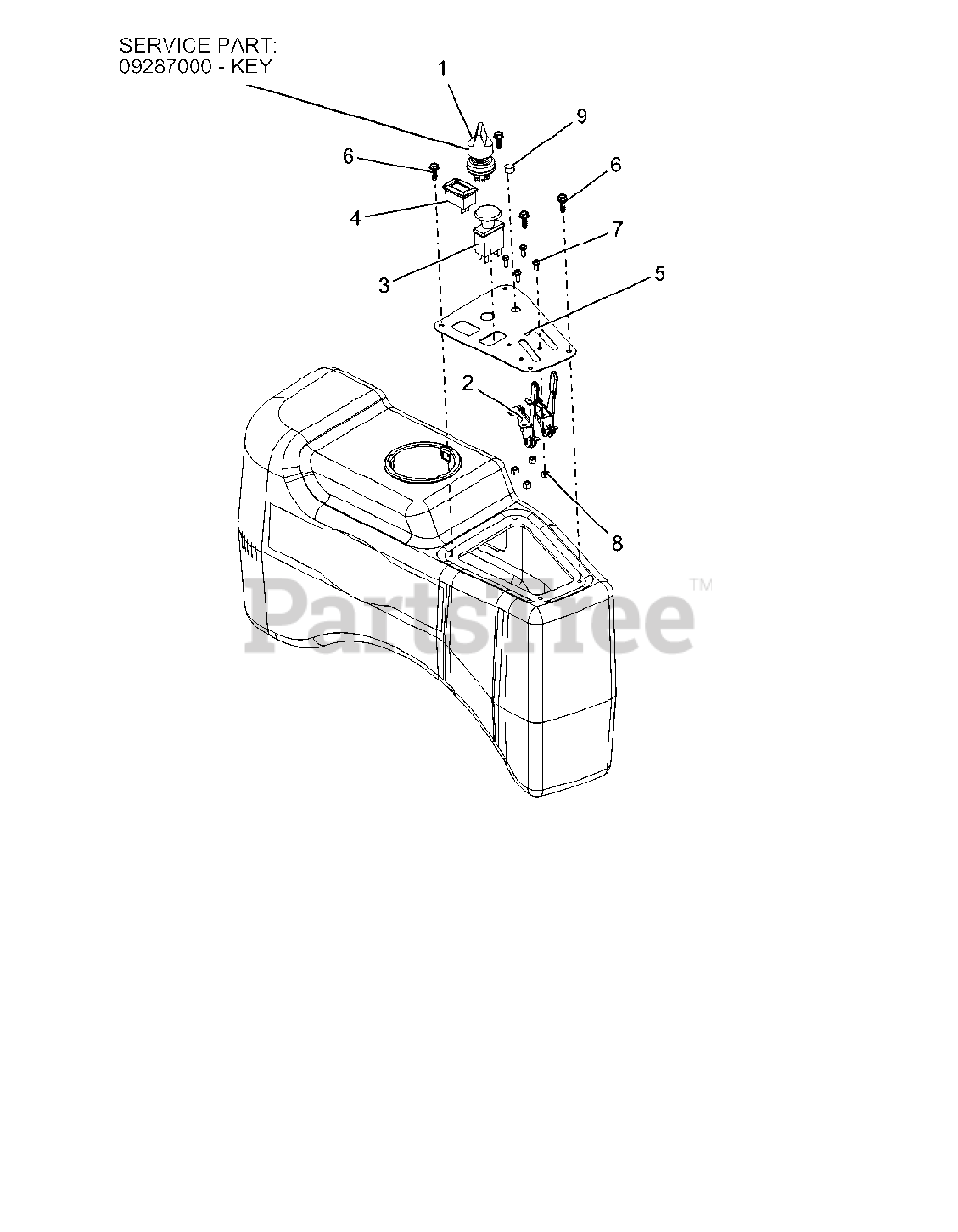

Control Panel - Kawasaki Parts Diagram

  • Title
1

Gravely 04331700

SWITCH, IGNITION

$43.99

$

In Stock, Qty 11

0

1

Gravely 09287000

KEY

Note: SERVICE PART

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900422

CABLE, CONTROL

$39.99

$

In Stock, only 1 left!

0

3

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

4

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 04391851

PANEL, INSTRUMENT-BLACK

$

$

Not available

6

Gravely 06100213

SCR-PLASTITE .25-10X.75 YWZC
(Superseded to 06100231)

$1.49

$

In Stock, Qty 6

0

7

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07527800

PLUG, HOLE .50 DIA

$

$

Not available
