991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 050000 & Above) Belts, Spindles, Idlers And Blades - 44" Parts Diagram

Compact-Pro 44" Zero-Turn Mower

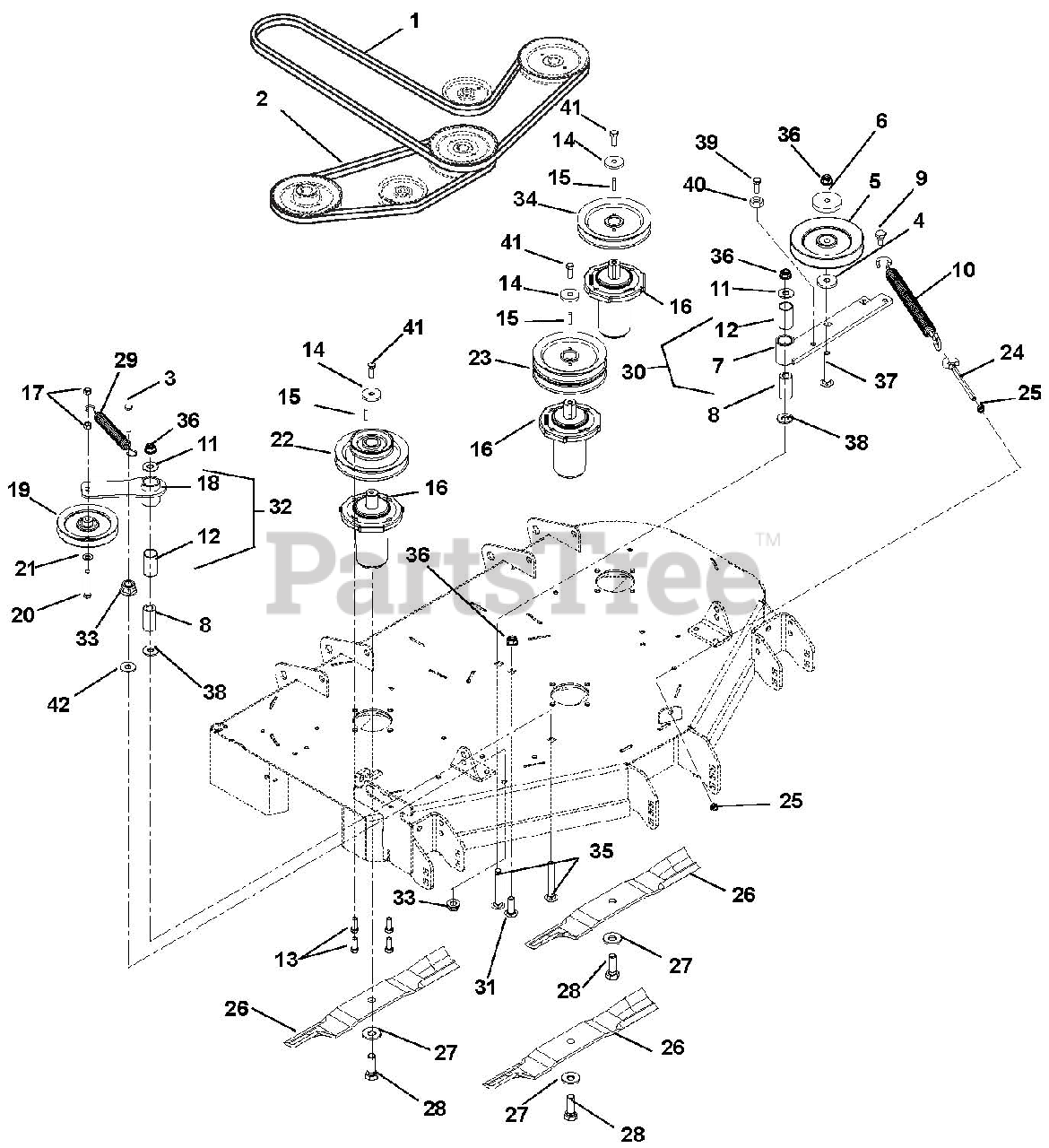

Belts, Spindles, Idlers And Blades - 44" Parts Diagram

  • Title

1

Gravely 07200026

Belt, BB 120.50 Wrapped Hex

Note: (PTO Belt)

$133.99

$

In Stock, only 4 left!

0

2

Gravely 07200035

Belt, B 51.18 Raw Cogged

Note: (Deck Belt)

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

0

5

Gravely 07300527

Sheave, .50" ID x 6.00" OD V-Idler

$53.99

$

In Stock, Qty 20+

0

6

Gravely 00450100

Cap, Idler Bearing Sealing

$14.99

$

In Stock, only 1 left!

0

7

Gravely 03774251

Idler Pivot Arm Weldment – Black

$68.99

$

In Stock, only 1 left!

0

8

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

9

Gravely 07000034

Bolt, Shoulder EP .38-16 x .30 Hex

$3.99

$

In Stock, only 1 left!

0

10

Gravely 08300505

Spring, Extension

Note: (PTO Deck Idler)

$25.99

$

In Stock, Qty 20+

0

11

Gravely 06430200

Washer, Flat Steel .531 x 1.25 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

13

Gravely 05900013

Bolt, Hex .38-16 x 1.00
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04530500

Retainer, Sheave

$7.99

$

In Stock, Qty 20+

0

15

Gravely 06611200

Key, Square .25 x .25 x 1 RC 40-50

$2.99

$

In Stock, Qty 16

0

16

Gravely 59215400

Spindle Assembly
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

17

Gravely 06529600

Nut, Locking, Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03774100

Idler, Pivot Arm
(Superseded to 03774151)

$51.99

$

In Stock, only 1 left!

0

19

Gravely 07340100

V-Idler, .38" ID x 5" OD
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

20

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07329467

Pulley, Double 1" ID x 5.75" & 3.50" OD

$100.99

$

In Stock, only 1 left!

0

23

Gravely 07329267

Pulley, Double 1" ID x 5.75" OD
(Superseded to 07329200)

$80.99

$

In Stock, only 1 left!

0

24

Gravely 07000030

Bolt, .38-16 x 4.00 .62 Diameter Eye
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00450200

Blade, 16.19" Mower

$29.99

$

In Stock, Qty 20+

0

27

Gravely 06445700

Washer, Bellville .63 x 1.625 x.14

$4.99

$

In Stock, Qty 9

0

28

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 08300507

Spring, Extension (Deck Belt Idler)
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

30

Gravely 03796300

Assembly, PTO Idler Pivot Arm
(Superseded to 59218300)

Note: (Includes item 7 and item 12)

$79.99

$

Usually ships in 4-12 days

0

31

Gravely 06200006

Bolt, Round Head Square Neck .50-13 x 1.5, Full Thread, Grade 5

$5.99

$

In Stock, only 1 left!

0

32

Gravely 03796400

Assembly, Idler Pivot Arm

Note: (Includes item 12 and item 18)

$62.99

$

Usually ships in 4-12 days

0

33

Gravely 06534900

Nut, Spin Lock-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 07329367

Sheave, Single 1.0" ID x 5.75" OD
(Superseded to 07329300)

$68.99

$

In Stock, Qty 18

0

35

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

36

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06224900

Bolt, Round Head Square Neck .50-13 x 3.00 Grade 5

$5.99

$

In Stock, Qty 19

0

38

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

39

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

40

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 05963000

Bolt, Hex .38-16 x 2.75 Grade 8
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0
