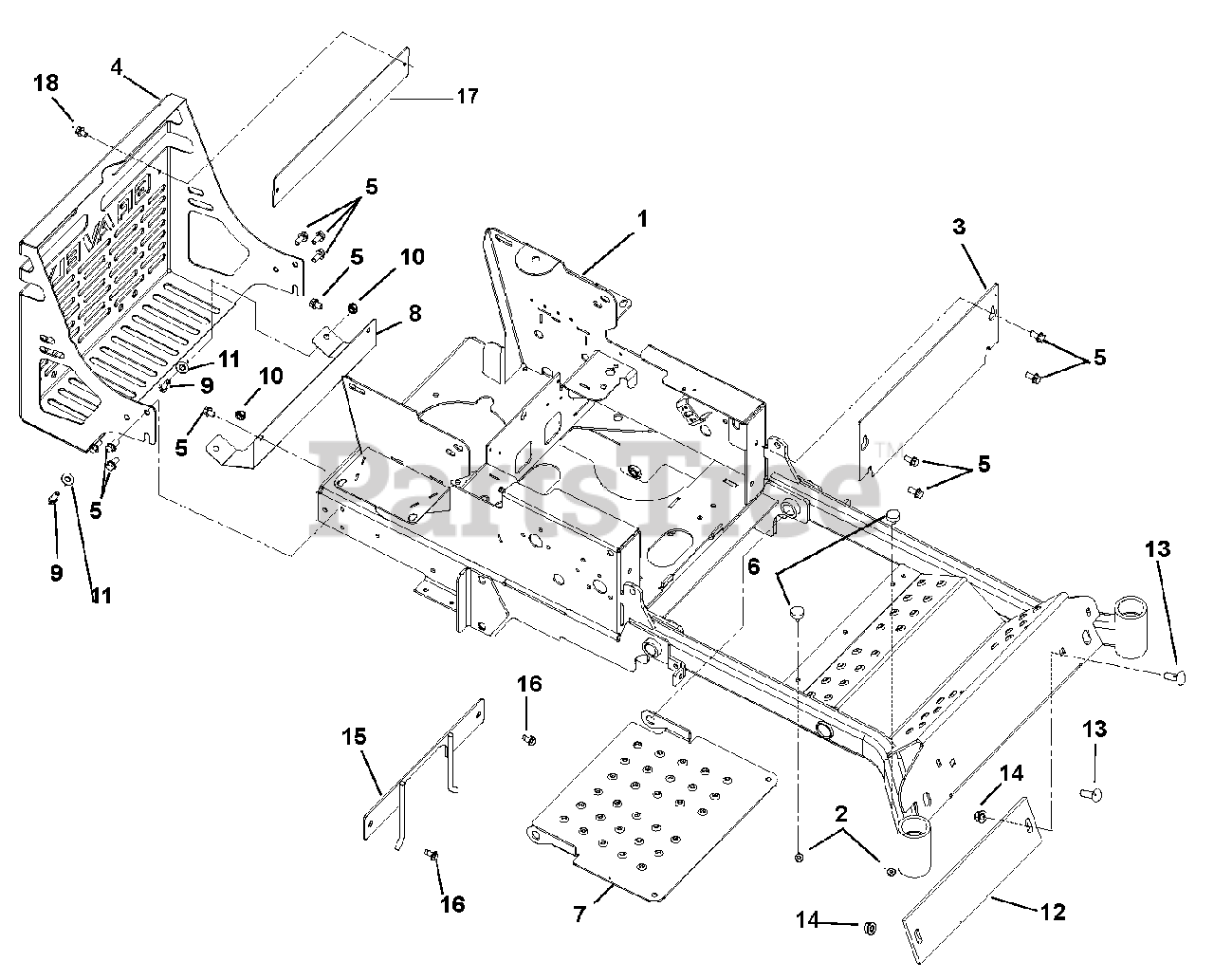

991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 000101 - 019999) Frame Parts Diagram

Compact-Pro 44" Zero-Turn Mower

Frame Parts Diagram

  • Title

1

3782353

Weldment, 44"HD Frame

$

$

Not available

2

Gravely 6530400

Nut, Spin Lock Flange .312-18

$

$

Not available

3

2989053

Kick Plate

$

$

Not available

4

3996053

Bumper,

$

$

Not available

5

Gravely 7415400

Screw, Tapping .38-16 x .75 Hex Washer Head

$

$

Not available

6

Gravely 7533600

Bumper, Rubber

$

$

Not available

7

298951

Panel, Inspection

$

$

Not available

8

462351

Heat Shield

$

$

Not available

9

Gravely 5948700

Bolt, Hex .38-16 x 1.00 Grade 5

$

$

Not available

10

Gravely 6545500

Nut, Nyloc Flange .38-16

$

$

Not available

11

6435900

Washer, Flat Steel .438 x 1.00 x .083

$

$

Not available

12

1922851

Counterweight CZ Front

$

$

Not available

13

6224800

Bolt, Round Head Square Neck .50-13 x 1.25 Grade 5

$

$

Not available

14

6500010

Nut .50-13 Nyloc Flange

$

$

Not available

15

4053651

Weldment, PTO Belt Finger

$

$

Not available

16

Gravely 7415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread

$

$

Not available

17

3948251

Bumper Backing Plate

$

$

Not available

18

7412000

Screw, Tapping .25-20 x .50 Hex Washer Head

$

$

Not available
