991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 000101 - 019999) Engine And Clutch Parts Diagram

Compact-Pro 44" Zero-Turn Mower

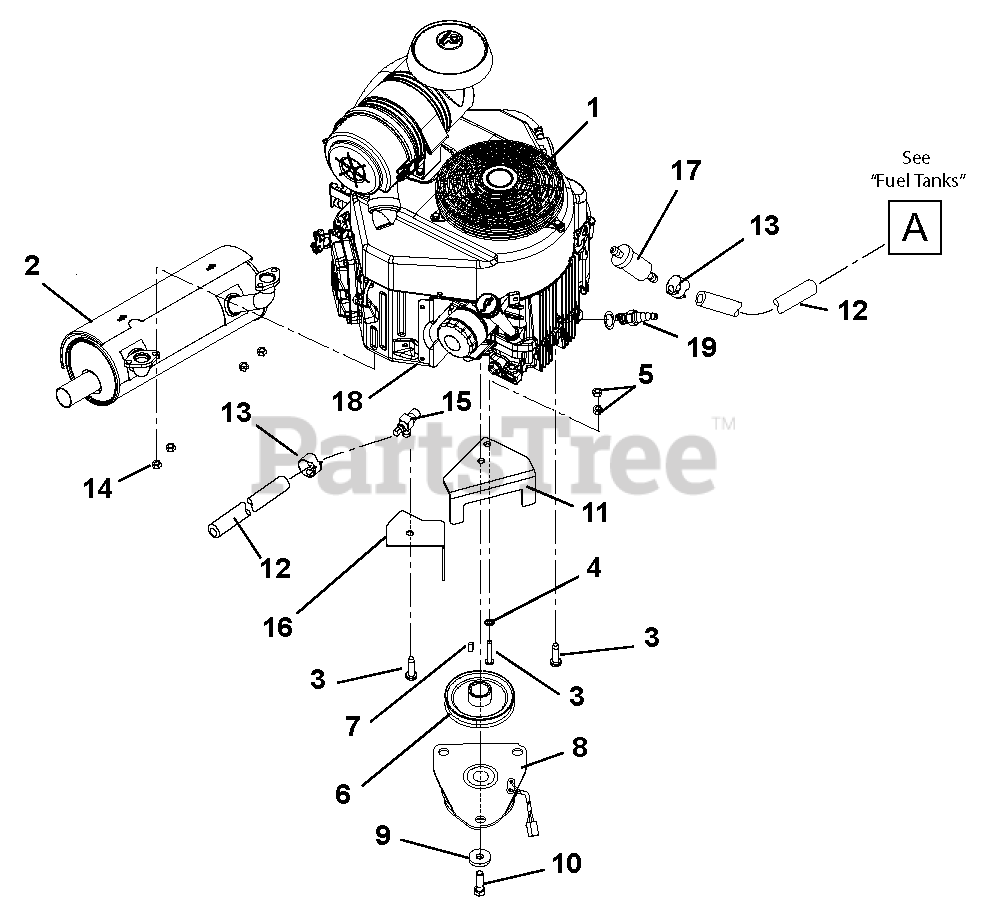

Engine And Clutch Parts Diagram

  • Title
1

Gravely 08200526

ENGINE, KAWASAKI FX600

$

$

Not available

2

Gravely 03971600

MUFFLER, KAWASAKI

$180.99

$

In Stock, only 1 left!

0

3

Gravely 05900125

BOLT, HEX .38-16 X 1.25 FTHG5
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06307200

WASHER, LOCKING-EXT .326 X .599 X .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 06529800

NUT, LOCKING-CENTER .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE
(Superseded to 07331600)

$

$

Not available

7

Gravely 06602700

KEY, SQUARE .25 X .625 X .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, Qty 5

0

8

Gravely 03789900

CLUTCH, OGURA GT1A

$349.99

$

In Stock, only 3 left!

0

9

Gravely 06443600

WASHER, FLAT STEEL .469 X 2.00 X .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

10

Gravely 05901426

BOLT, HEX .44-20 X 2.00 GRADE 5 EP80

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 03766851

ANCHOR, OGURA CLUTCH

$37.99

$

Usually ships in 4-12 days

0

12

Gravely 03278100

HOSE, GAS LINE LOW PERM

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06500018

NUT, TOP LOCK M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

15

Gravely 00429000

DRAIN, .50 OIL

$39.99

$

In Stock, only 1 left!

0

16

Gravely 03772951

GUARD, CLUTCH WIRE

$31.99

$

Usually ships in 4-12 days

0

17

Gravely 21438400

FUEL FILTER, KAWASAKI

$

$

Not available

18

Gravely 21535800

OIL FILTER, KAWASAKI
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

19

Gravely 21533600

SPARK PLUG, KAWASAKI

$4.99

$

In Stock, Qty 20+

0

20

Gravely 21538200

AIR FILTER, KAWASAKI

$21.99

$

In Stock, Qty 20+

0

21

Gravely 21538300

PRE-FILTER

$11.99

$

Usually ships in 4-12 days

0
