991088 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 060000 & Above) Vent Lines - Non-CARB Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

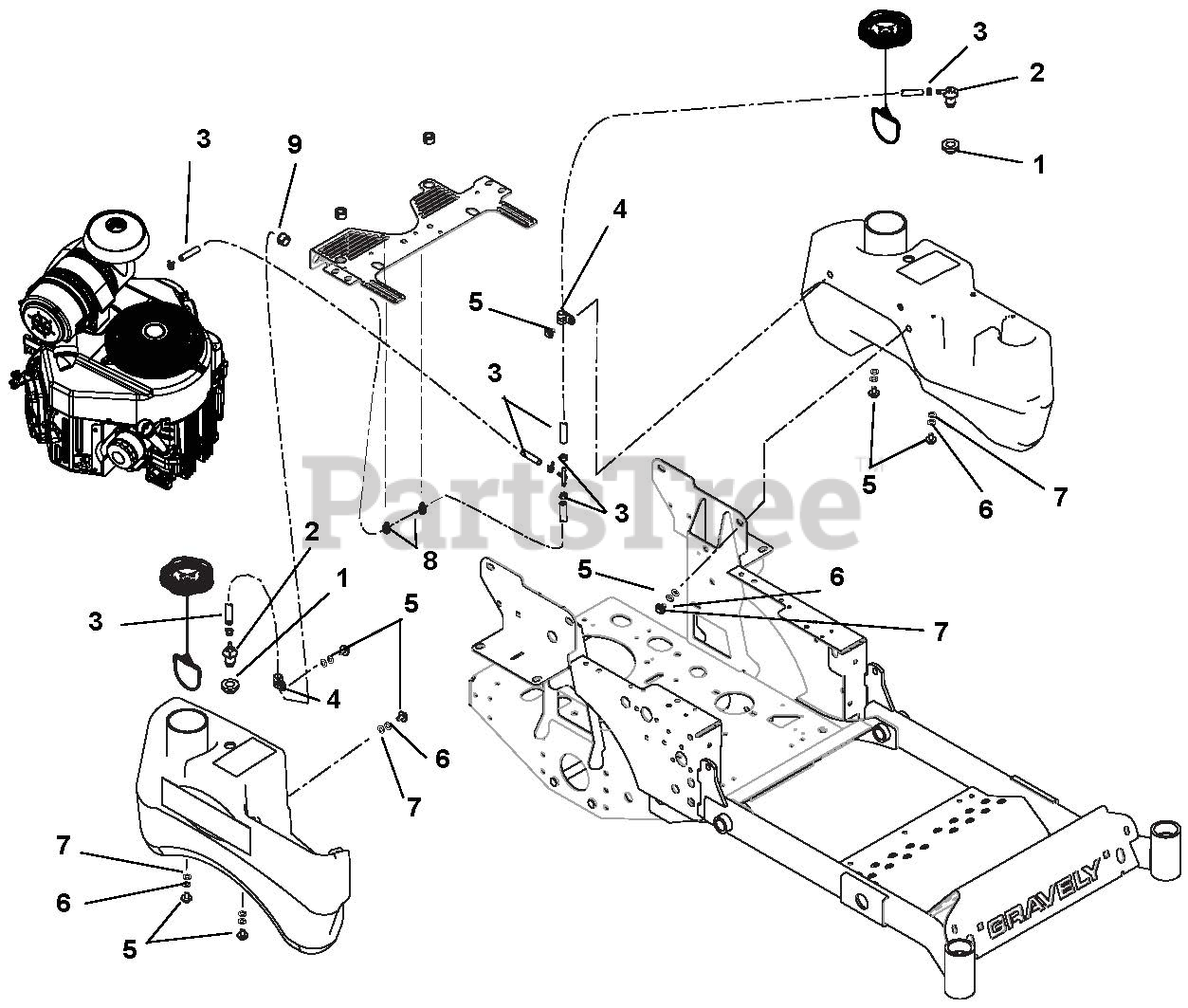

Vent Lines - Non-CARB Parts Diagram

  • Title

1

Gravely 04815500

Grommet, 2-way
(Superseded to 04082700)

$3.49

$

In Stock, Qty 9

0

2

Gravely 04068910

Valve, 2-way
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

3

Gravely 04835400

CP34, Fuel Line Assembly

$24.99

$

In Stock, only 1 left!

0

4

Gravely 06908200

Clamp

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 05947800

Bolt, .31-18 x .62
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00367900

Clip, Routing

$1.49

$

In Stock, only 1 left!

0

9

Gravely 07500126

Bushing, Snap

$3.99

$

In Stock, only 2 left!

0
