991088 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 041000 - 049999) Transmission Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

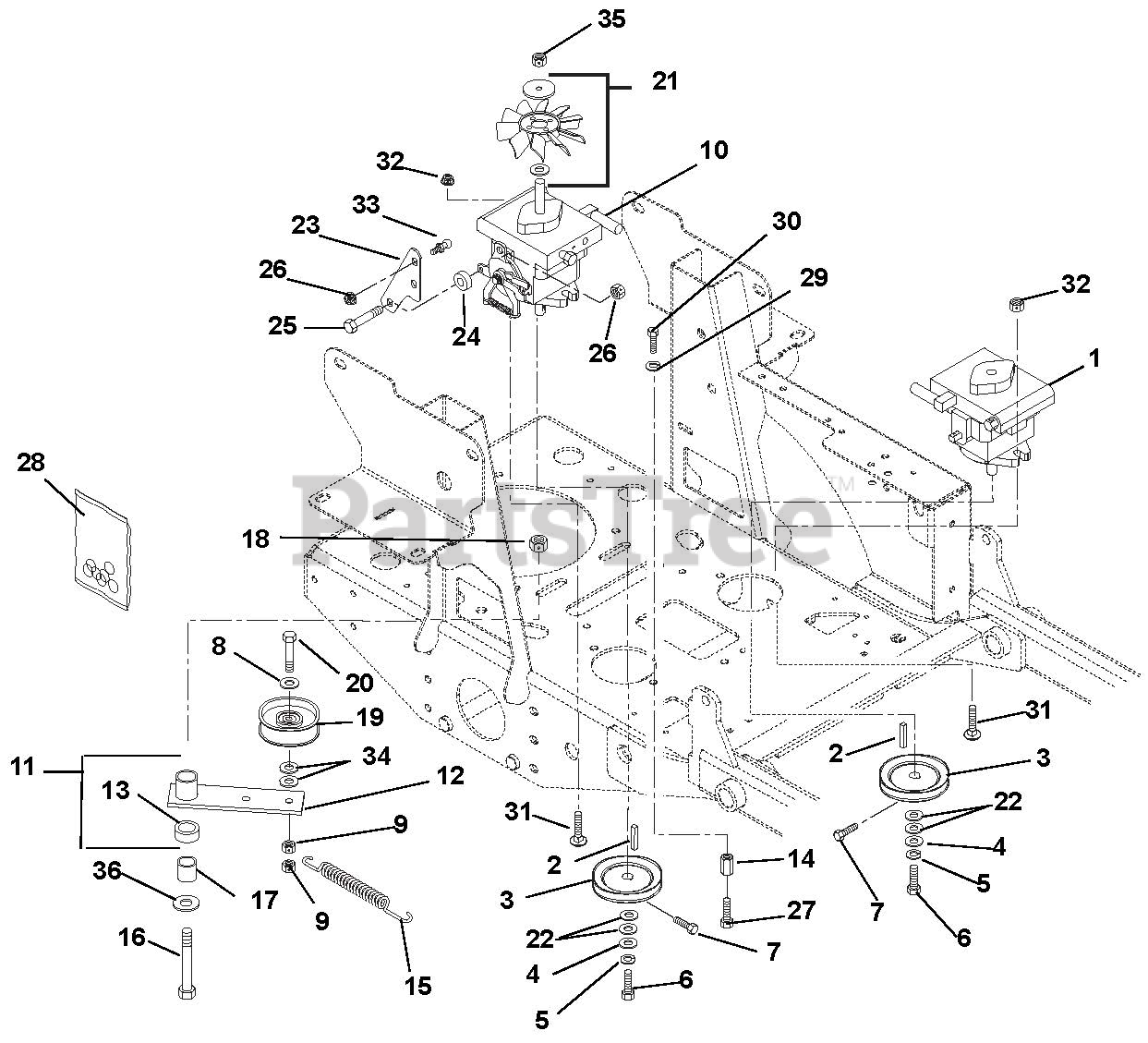

Transmission Parts Diagram

  • Title

1

Gravely 09297600

Pump, Hydraulic BDP-10A Left Hand

$963.99

$

Usually ships in 4-12 days

0

2

Gravely 06607500

Key, Straight 5mm x 25mm x 5mm

$3.99

$

In Stock, only 2 left!

0

3

Gravely 07318900

Sheave 4.0 x .199

$51.99

$

In Stock, only 2 left!

0

4

Gravely 06426600

Washer, Flat Steel .281 x 1.00 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

Washer, Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05900017

Bolt, Hex M6 x 1.00 x 12 Epoxy 30

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

8

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06529600

Nut, Nyloc Flange .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09285200

Pump, Hydraulic BDP-10A Right Hand

$1047.99

$

Usually ships in 4-12 days

0

11

Gravely 09219000

Assembly, Idler Arm Guard Drive

Note: (Includes 12 & 13)

$100.99

$

In Stock, only 1 left!

0

12

Gravely 09217051

Weldment, Idler Arm Ground Drive
(Superseded to 09217000)

$111.99

$

Usually ships in 4-12 days

0

13

Gravely 05500123

Bearing, 1.00 x 1.12 x .75
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

15

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

16

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

17

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

18

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07312500

Idler, Flat 4.00 x .38 I.D.
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

20

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 03368800

Fan, Cooling

$32.99

$

Usually ships in 4-12 days

0

22

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 09282900

Bracket, Return to Neutral/Damper

$7.99

$

Usually ships in 4-12 days

0

24

Gravely 02513500

Spacer .344 x 1.00 x .375

$

$

Not available

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

26

Gravely 06545400

Nut, Nyloc Flange .312-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05900041

Bolt, Hex .38-16 x 1.50 Grade 5

$

$

Not available

28

Gravely 59203600

Kit, Pump Seal (BDP-10A)

Note: (One kit required for each pump)

$77.99

$

Usually ships in 4-12 days

0

29

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06224500

Bolt, Round Head Square Neck .44-14 x 1.50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 06500009

Nut, Nyloc Flange .44-14
(Superseded to 06500811)

$5.99

$

In Stock, only 1 left!

0

33

Gravely 04091700

Stud, Ball

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

35

Gravely 06537000

Nut, Center Lock .31-24

$

$

Not available

36

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0
