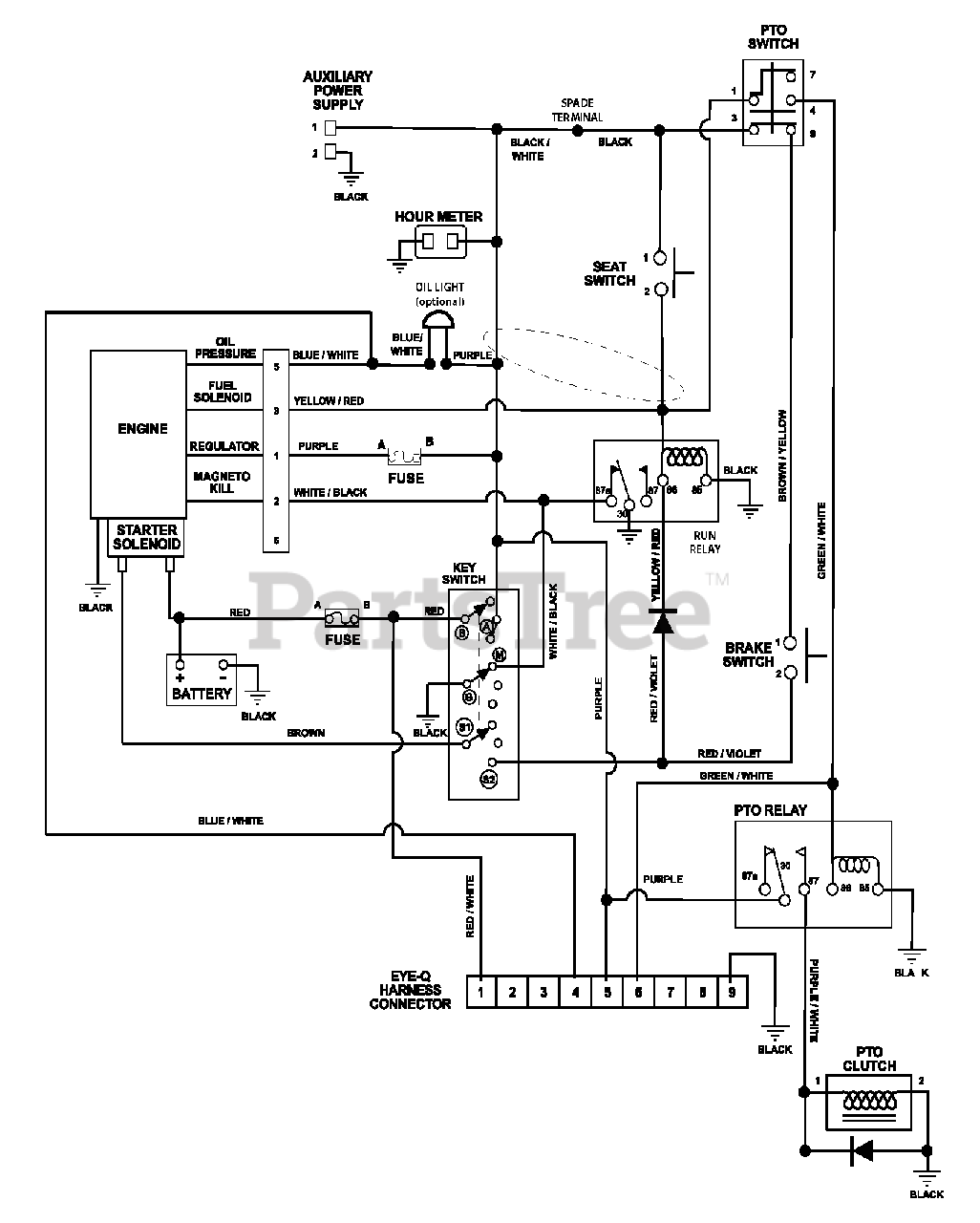

991088 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 020000 - 040999) Wiring Diagram Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

Wiring Diagram Parts Diagram
