991087 - Ariens Max-Zoom 60" Zero-Turn Mower, 24hp Kawasaki (SN: 060000 & Above) Chute And Belt Covers - 60" Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 24hp Kawasaki

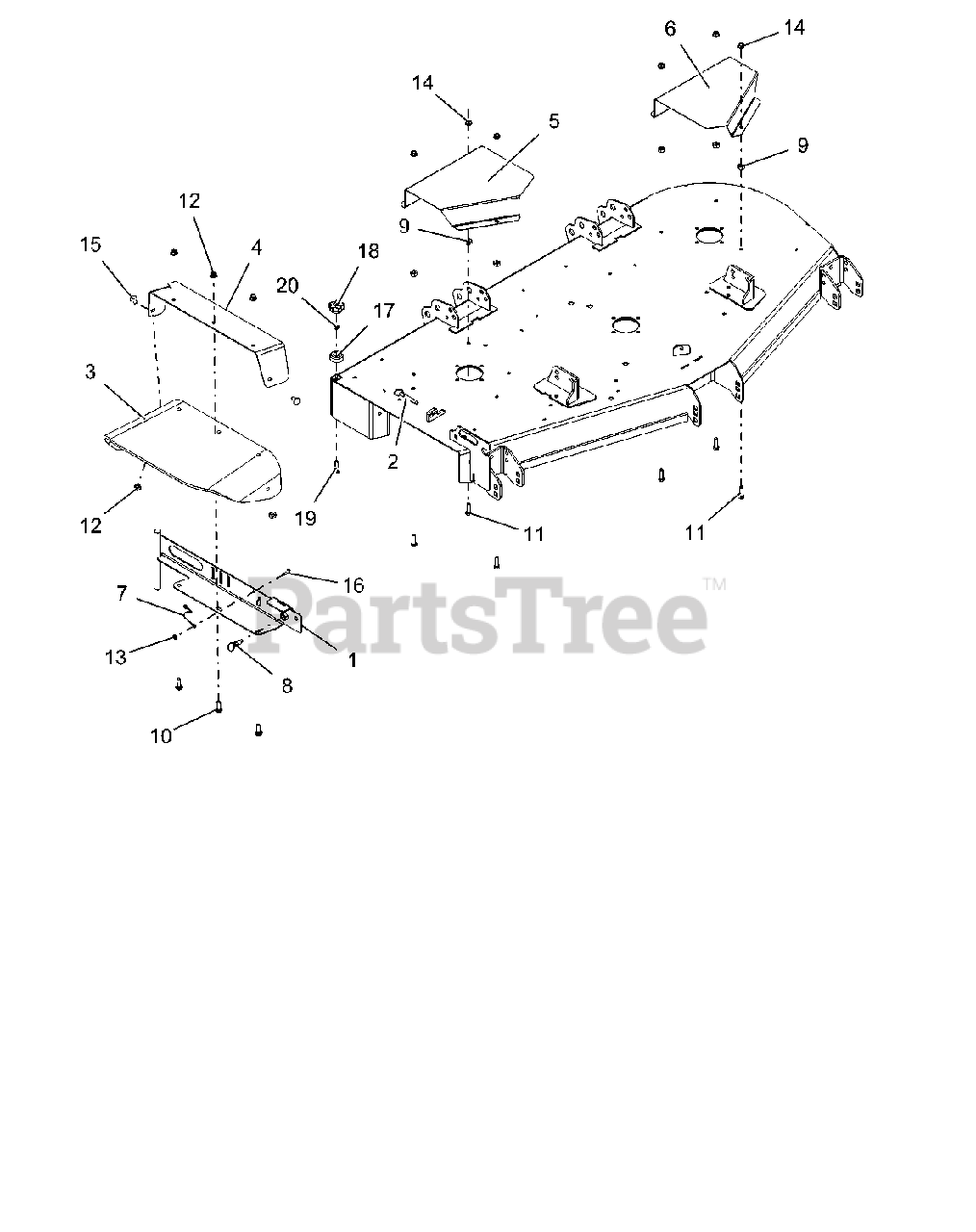

Chute And Belt Covers - 60" Parts Diagram

  • Title

1

Ariens 04727959

WLDMT, DISCHARGE CHUTE 52"-60"

$103.99

$

Usually ships in 4-12 days

0

2

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 15

0

4

Ariens 59106800

CHT SPPRT MTG BRKT W/SAFETY

$

$

Not available

5

Ariens 04728559

GUARD, DECK 60"-66" RH

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 04728659

GUARD, DECK 60"-66" LH

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 06900321

CABLE, 6.0 LANYARD, NYLON

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0

9

Ariens 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

11

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

16

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0

19

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
