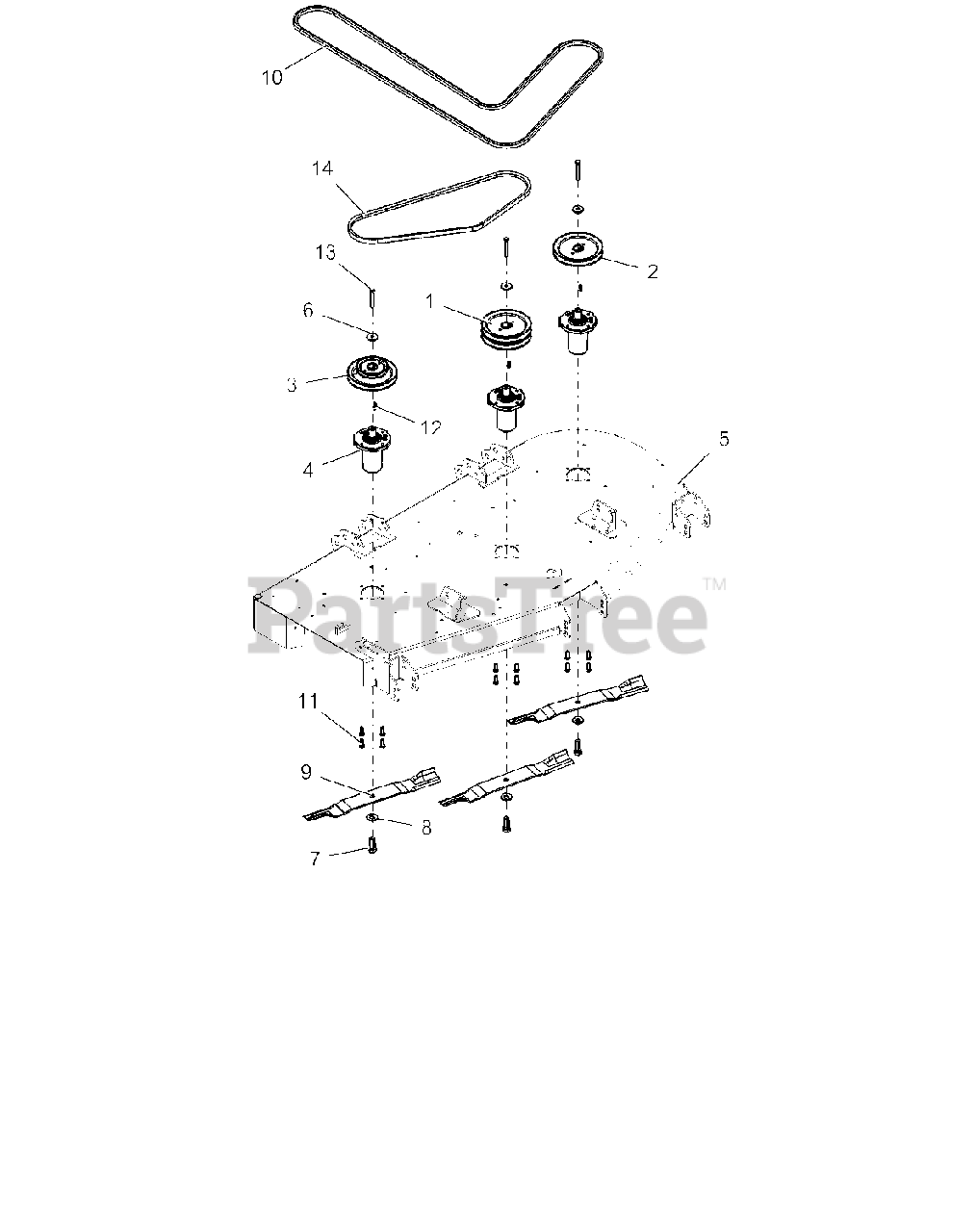

991087 - Ariens Max-Zoom 60" Zero-Turn Mower, 24hp Kawasaki (SN: 045000 - 049999) Deck Belts Spindles And Blades - 60 Inch Parts Diagram

Max-Zoom 60" Zero-Turn Mower, 24hp Kawasaki

Deck Belts Spindles And Blades - 60 Inch Parts Diagram

  • Title

1

Ariens 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

2

Ariens 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

3

Ariens 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

$84.99

$

In Stock, Qty 7

0

4

Ariens 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

5

Ariens 59102700

KIT,DECK - 60" W/SAFETY DECALS

$896.99

$

Usually ships in 4-12 days

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

9

Ariens 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

10

Ariens 07200028

HEX BELT, BB-WRAPPED

$133.99

$

In Stock, Qty 5

0

11

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07200038

V-BELT, B-COGGED

$67.99

$

In Stock, Qty 20+

0
