991086 - Ariens Max-Zoom 52" Zero-Turn Mower, 24hp Kawasaki (SN: 020000 - 029999) Vapor Recovery Vent Lines Parts Diagram

Max-Zoom 52" Zero-Turn Mower, 24hp Kawasaki

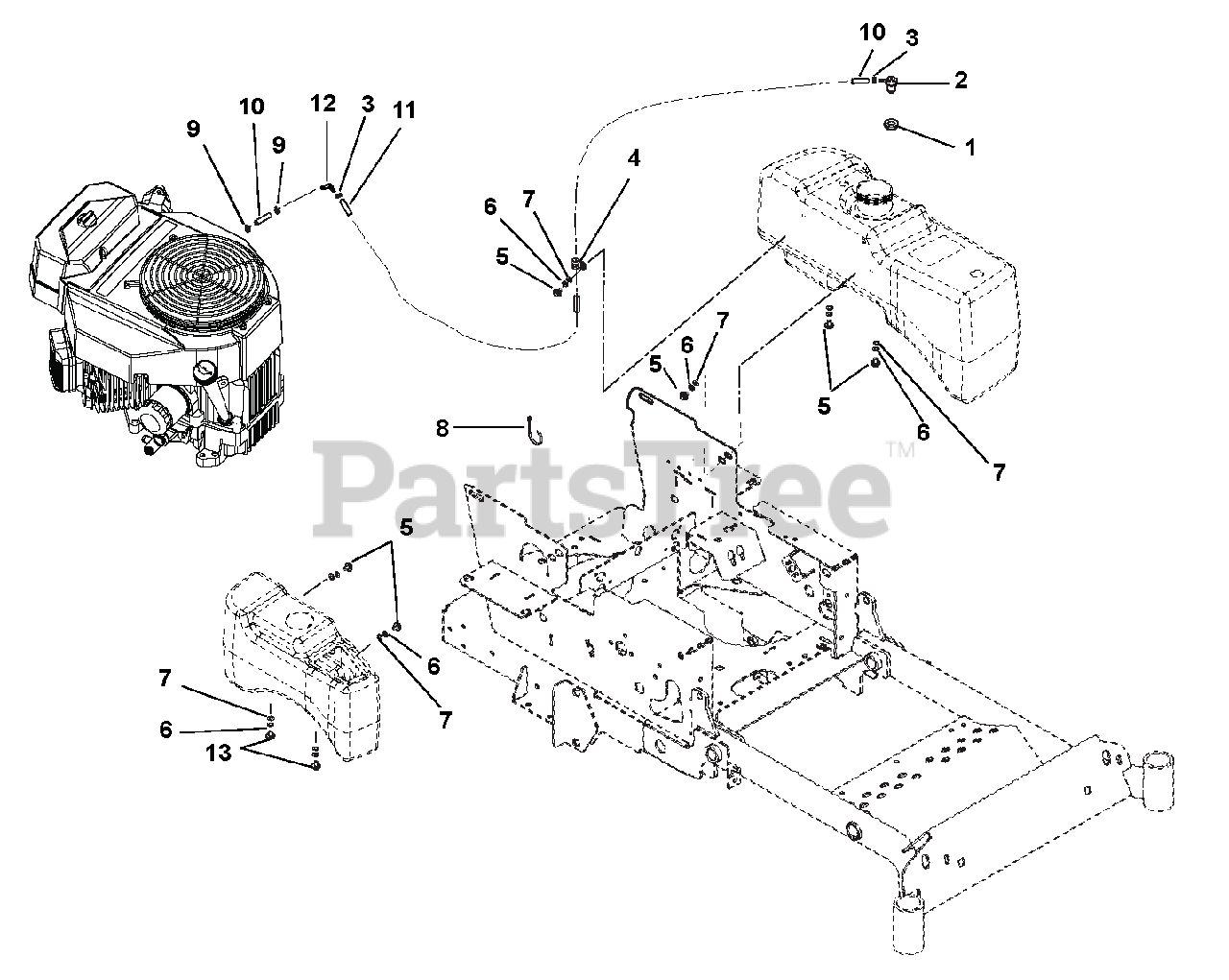

Vapor Recovery Vent Lines Parts Diagram

  • Title

1

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

$3.49

$

In Stock, Qty 9

0

2

Ariens 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

9

Ariens 04097700

CLAMP-HOSE, SPRING .188

$

$

Not available

10

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

12

Ariens 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$1.49

$

In Stock, Qty 6

0
