991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 060000 & Above) Deck Lift - Left Hand Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

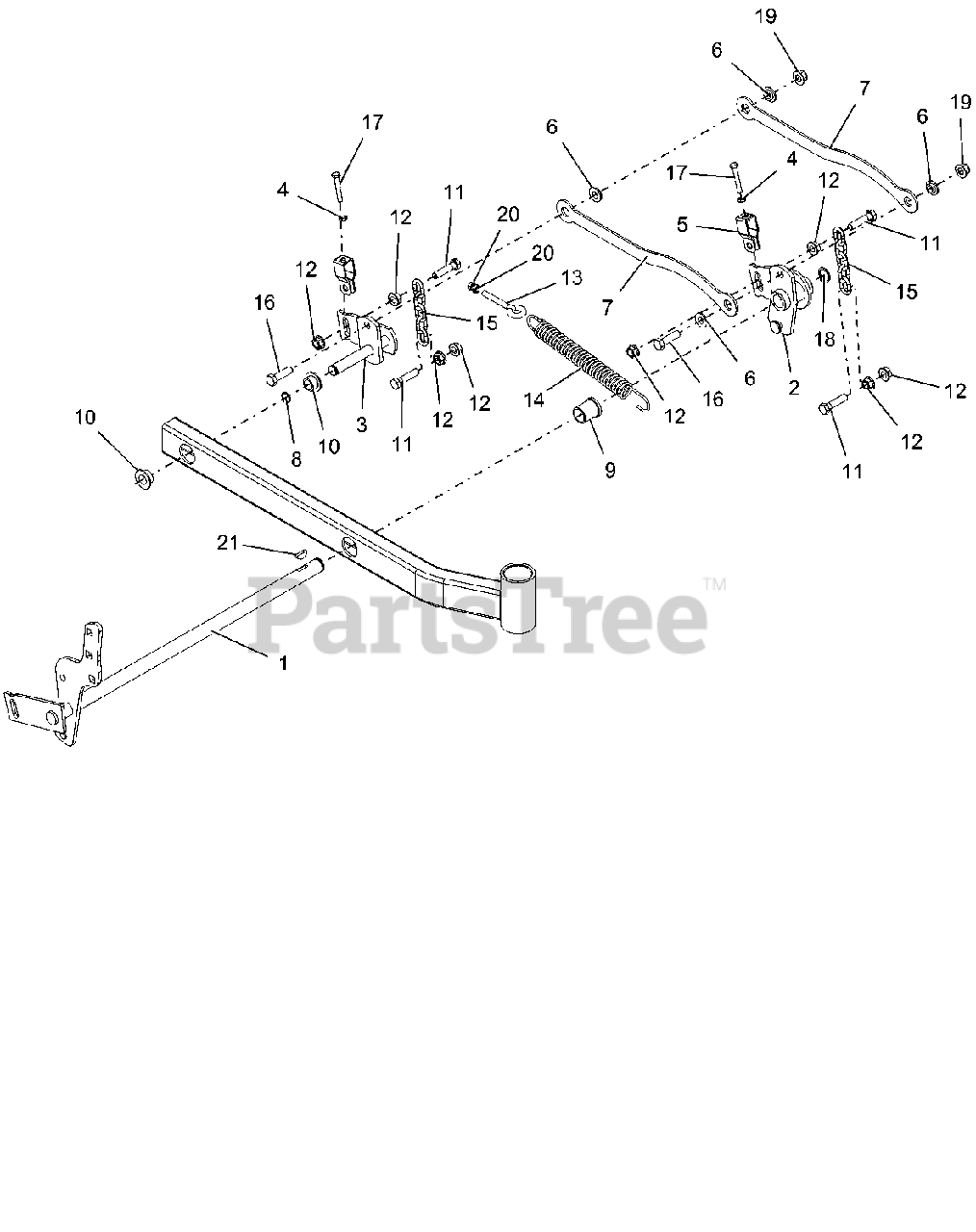

Deck Lift - Left Hand Parts Diagram

  • Title

1

Ariens 04798200

WLDMT, FRONT RH DECK LIFT ARM

$148.99

$

Usually ships in 4-12 days

0

2

Ariens 04798300

WLDMT, FRONT LH DECK LIFT ARM

$112.99

$

Usually ships in 4-12 days

0

3

Ariens 04798000

WLDMT, REAR LH DECK LIFT ARM

$

$

Not available

4

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 00442800

BRKT, DECK LEVELING

$9.49

$

In Stock, only 2 left!

0

6

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.49

$

In Stock, Qty 20+

0

7

Ariens 04798400

LINK, DECK LIFT

$

$

Not available

8

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

9

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

10

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

11

Ariens 05900022

BLT, HEX M12-1.75X50 CLS8.8 YZ

$3.99

$

In Stock, only 1 left!

0

12

Ariens 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.49

$

In Stock, only 1 left!

0

13

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

15

Ariens 09284700

CHAIN, LINK

$6.49

$

Usually ships in 4-12 days

0

16

Ariens 05970600

@BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 05980900

BLT-HEX .312-18X2.00 FTH GR5YZ
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

18

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

19

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 18

0
