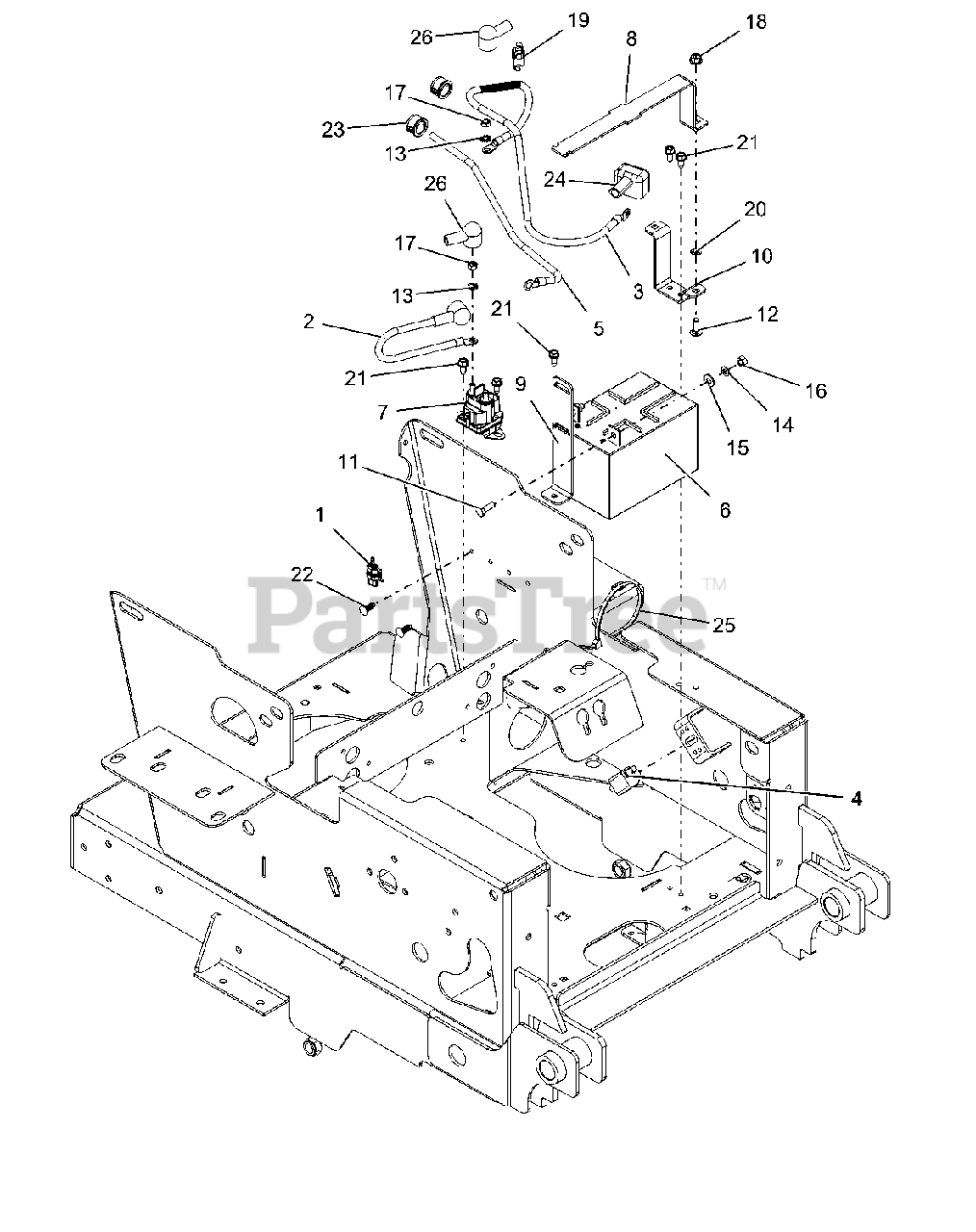

991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 050000 - 059999) Electrical Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

Electrical Parts Diagram

  • Title

1

Ariens 04781600

HARNESS,WIRE(SEALED SOLENOID)

$113.99

$

Usually ships in 4-12 days

0

2

Ariens 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 04783400

CABLE,POS W/(2)1/4 RING 21.5LG

$9.49

$

Usually ships in 4-12 days

0

4

Ariens 03252300

SWITCH, SINGLE POLE N.O.

$13.99

$

In Stock, only 1 left!

0

5

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

6

Ariens 04738800

BATTERY, 12V 12A-190CCA

$129.99

$

In Stock, Qty 20+

0

7

Ariens 04781700

SOLENOID, STARTER (SEALED)

$44.99

$

In Stock, only 1 left!

0

8

Ariens 04870351

BRKT-BATTERY HOLD-DOWN

$26.99

$

In Stock, only 1 left!

0

9

Ariens 04870451

MOUNT-BATTERY HOLD-DOWN-RH

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 04870551

MOUNT-BATTERY HOLD-DOWN-LH

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

12

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 10

0

13

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

14

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

17

Ariens 06539800

NUT-HEX M6X1.0 YWZC
(Superseded to 06500925)

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 07001622

CLIP,T,.31-.38,

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 16

0

23

Ariens 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

24

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

25

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

26

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0
