991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 050000 - 059999) Deck Belts Spindles And Blades - 48-Inch Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

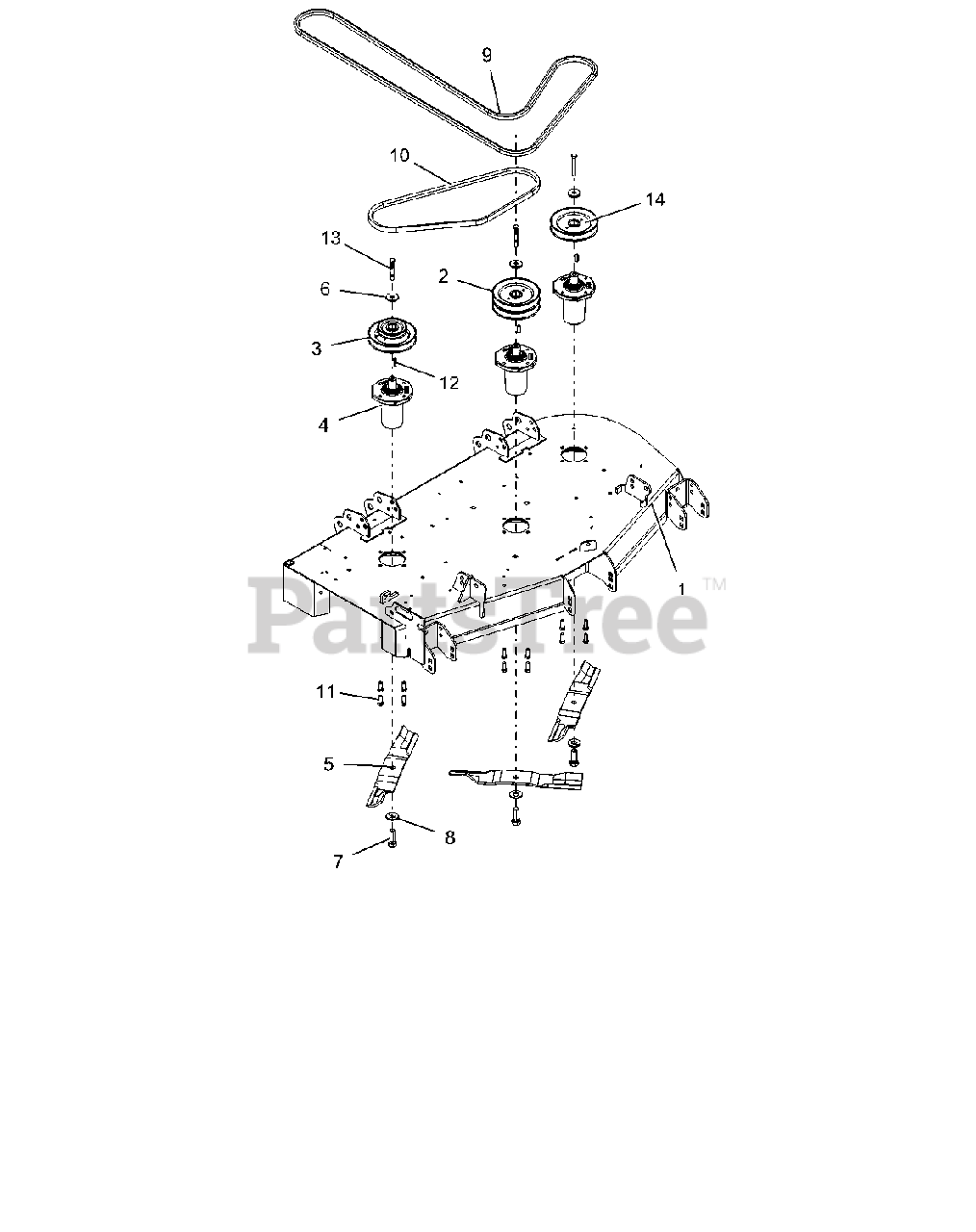

Deck Belts Spindles And Blades - 48-Inch Parts Diagram

  • Title

1

Ariens 59102900

KIT,DECK - 48" W/SAFETY DECALS

$813.99

$

Usually ships in 4-12 days

0

2

Ariens 07329267

PULLEY, DOUBLE-1"ID X 5.75"OD
(Superseded to 07329200)

$80.99

$

In Stock, only 1 left!

0

3

Ariens 07329467

PULLEY, DBL-1"IDX5.75"&3.50"OD

$100.99

$

In Stock, only 1 left!

0

4

Ariens 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

5

Ariens 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

9

Ariens 07200025

HEX BELT, BB-WRAPPED

$113.99

$

Usually ships in 4-12 days

0

10

Ariens 07200035

V-BELT, B-COGGED

$54.99

$

Usually ships in 4-12 days

0

11

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

13

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

$68.99

$

In Stock, Qty 18

0
