991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 045000 - 049999) Steering Controls Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

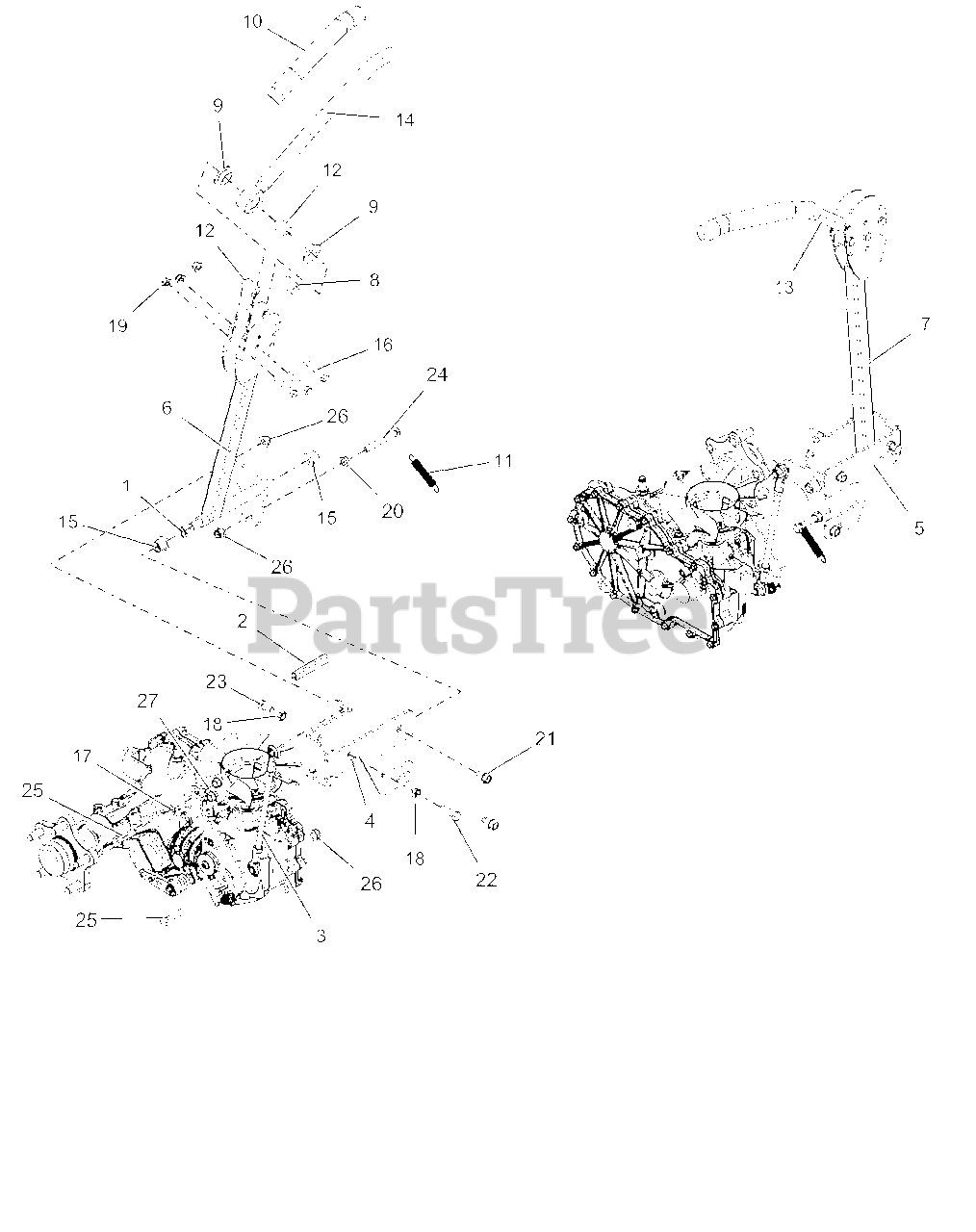

Steering Controls Parts Diagram

  • Title

1

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 03251700

ASM, STEERING LINKAGE

$

$

Not available

4

Ariens 03752751

RH STEERING STOP BRKT - BLK

$82.99

$

Usually ships in 4-12 days

0

5

Ariens 03754751

BRKT, LH STEERING STOP

$87.99

$

Usually ships in 4-12 days

0

6

Ariens 04762951

WMT-RH PT/PT100 CONTROL ARM-BL

$109.99

$

In Stock, only 1 left!

0

7

Ariens 04763051

WMT-LH PT/PT100 CONTROL ARM-BL

$155.99

$

Usually ships in 4-12 days

0

8

Ariens 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

10

Ariens 07500222

GRIP-HANDLEBAR .750IDX11.125LG

$7.99

$

In Stock, only 1 left!

0

11

Ariens 08300516

SPRING,EXT,.061X.50X3.0

$14.99

$

In Stock, only 2 left!

0

12

Ariens 09235400

SPACER .328 X .76 X 1.01

$

$

Not available

13

Ariens 09235500

HANDLE WLDMT LH

$90.99

$

In Stock, only 1 left!

0

14

Ariens 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

15

Ariens 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

16

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

17

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

25

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

26

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
