991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 030000 - 044999) Mounting Arms Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

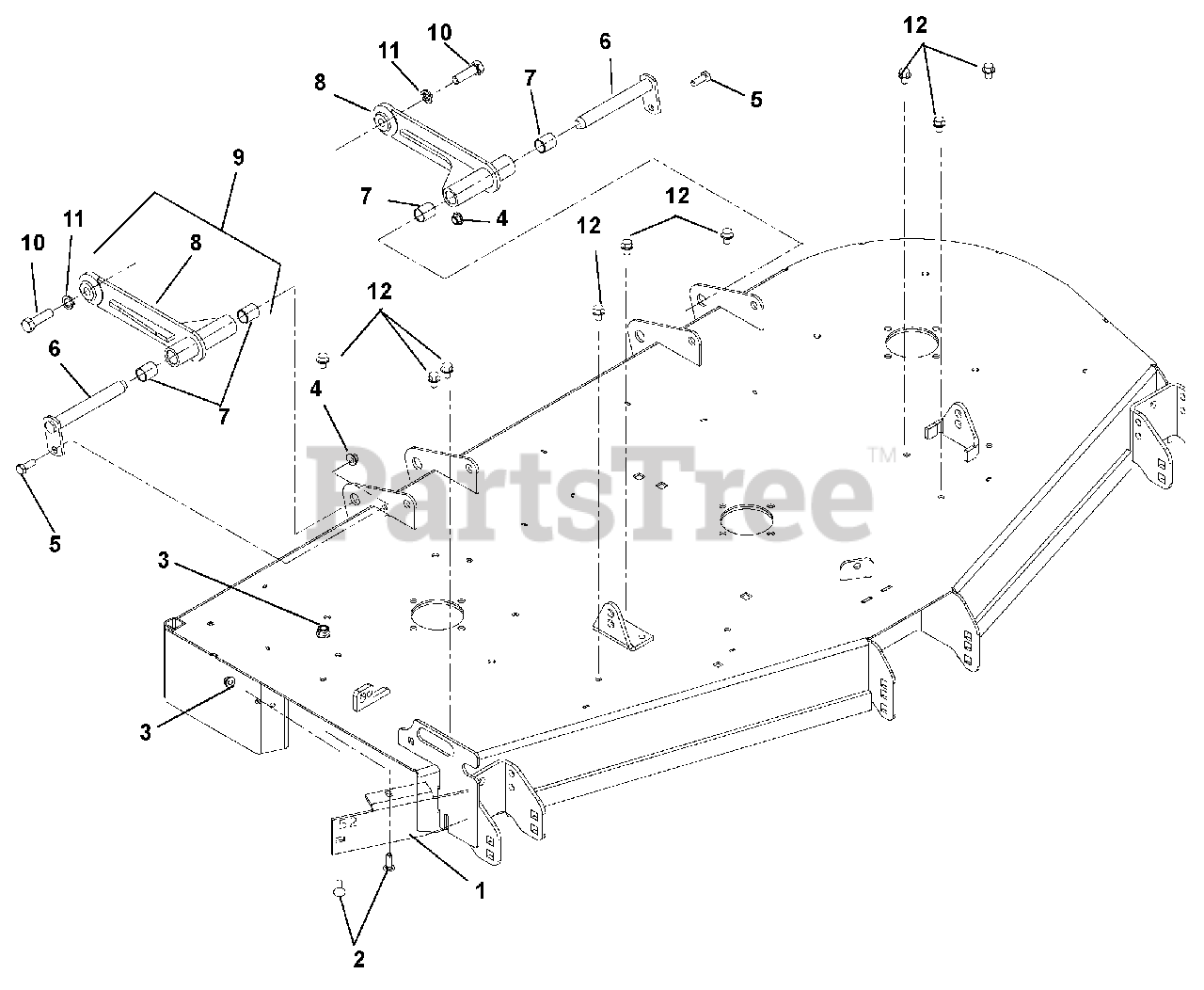

Mounting Arms Parts Diagram

  • Title

1

Ariens 04389359

BAFFLE, DISCHARGE 44/48

Note: (991085)

$62.99

$

Usually ships in 4-12 days

0

Ariens 04389559

BAFFLE, DISCHARGE, 60"

Note: (991087)

$34.99

$

In Stock, only 1 left!

0

Ariens 04389459

BAFFLE, DISCHARGE, 52"

Note: (991086)

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

7

Ariens 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

8

Ariens 02989151

DECK PUSHER ARM WMT - BLACK

$108.99

$

Usually ships in 4-12 days

0

9

Ariens 03251800

DECK PUSHER ARM ASSEMBLY

Note: (Includes items 7 and 8)

$125.99

$

In Stock, only 2 left!

0

10

Ariens 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
