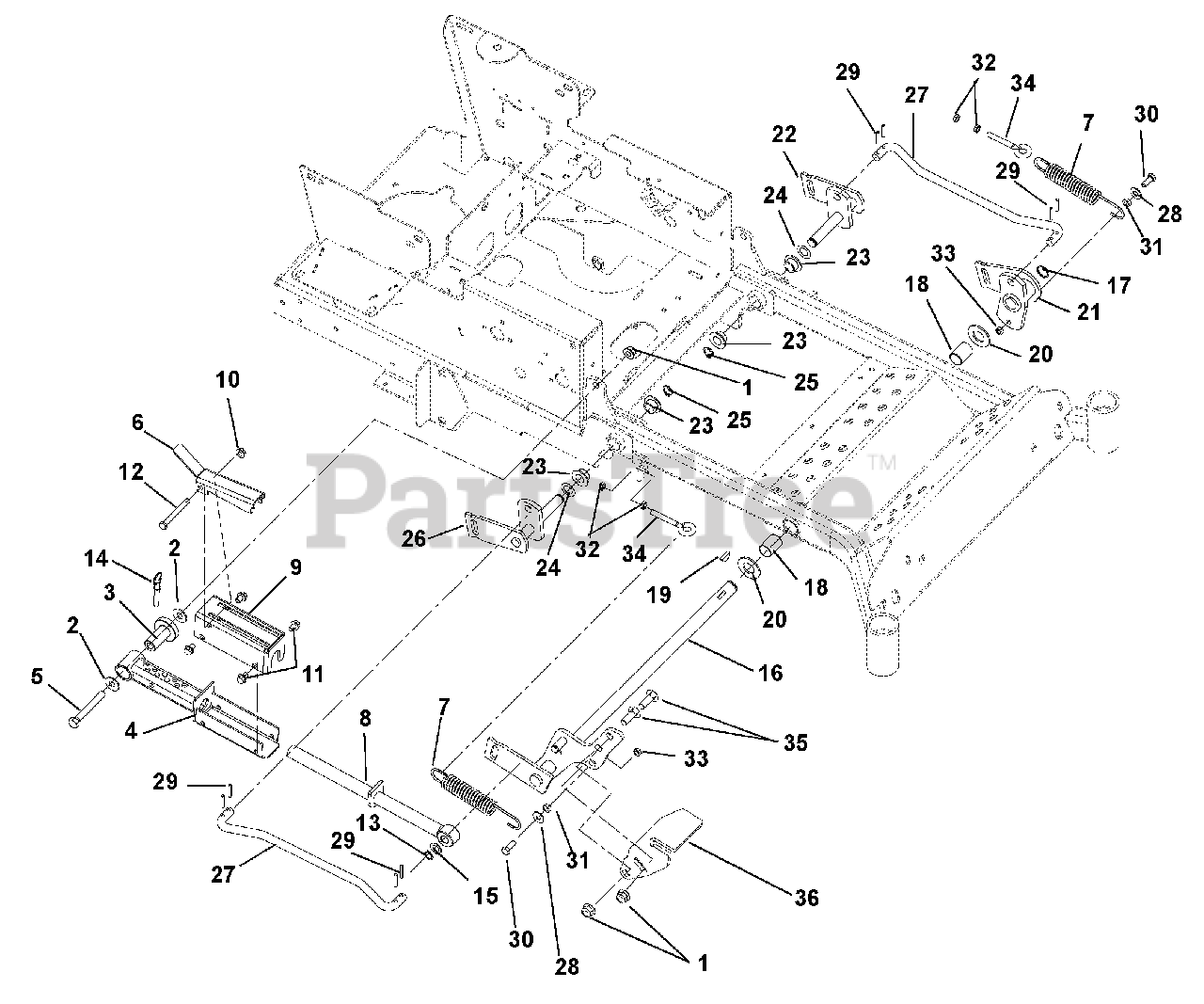

991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 030000 - 044999) Mechanical Lift Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

Mechanical Lift Parts Diagram

  • Title

1

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 07000031

BEARING, PEDESTAL

$80.99

$

In Stock, only 1 left!

0

4

Ariens 09286251

WMT, MECHANICAL LIFT

$216.99

$

Usually ships in 4-12 days

0

5

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 09299651

LOCK-UP, MECH LIFT

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

8

Ariens 09291500

WMT, MECH. LIFT SHAFT (.62)

$150.99

$

Usually ships in 4-12 days

0

9

Ariens 09299451

WMT, MECH LIFT COVER

$45.99

$

Usually ships in 4-12 days

0

10

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 04277300

WMT,DECK LIFT,ADJ FOOT PEDAL

$177.99

$

Usually ships in 4-12 days

0

17

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

18

Ariens 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$6.99

$

In Stock, only 3 left!

0

19

Ariens 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

20

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

21

Ariens 00441000

WMT, LH FRONT MOWER LIFT

$99.99

$

Usually ships in 4-12 days

0

22

Ariens 00481600

WMT, LH REAR LIFT ARM (100)

$66.99

$

Usually ships in 4-12 days

0

23

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

24

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

25

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

26

Ariens 00481500

WMT, RH REAR LIFT ARM (100)

$83.99

$

Usually ships in 4-12 days

0

27

Ariens 04063000

ROD-LIFT ASSIST 16.35"

$

$

Not available

28

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05800001

PIN-ROLL .250X1.25 STNLESS STL

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

32

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

35

Ariens 06223100

@BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

36

Ariens 04392651

PEDAL, FOOT

$64.99

$

Usually ships in 4-12 days

0
