991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 030000 - 044999) Frame Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

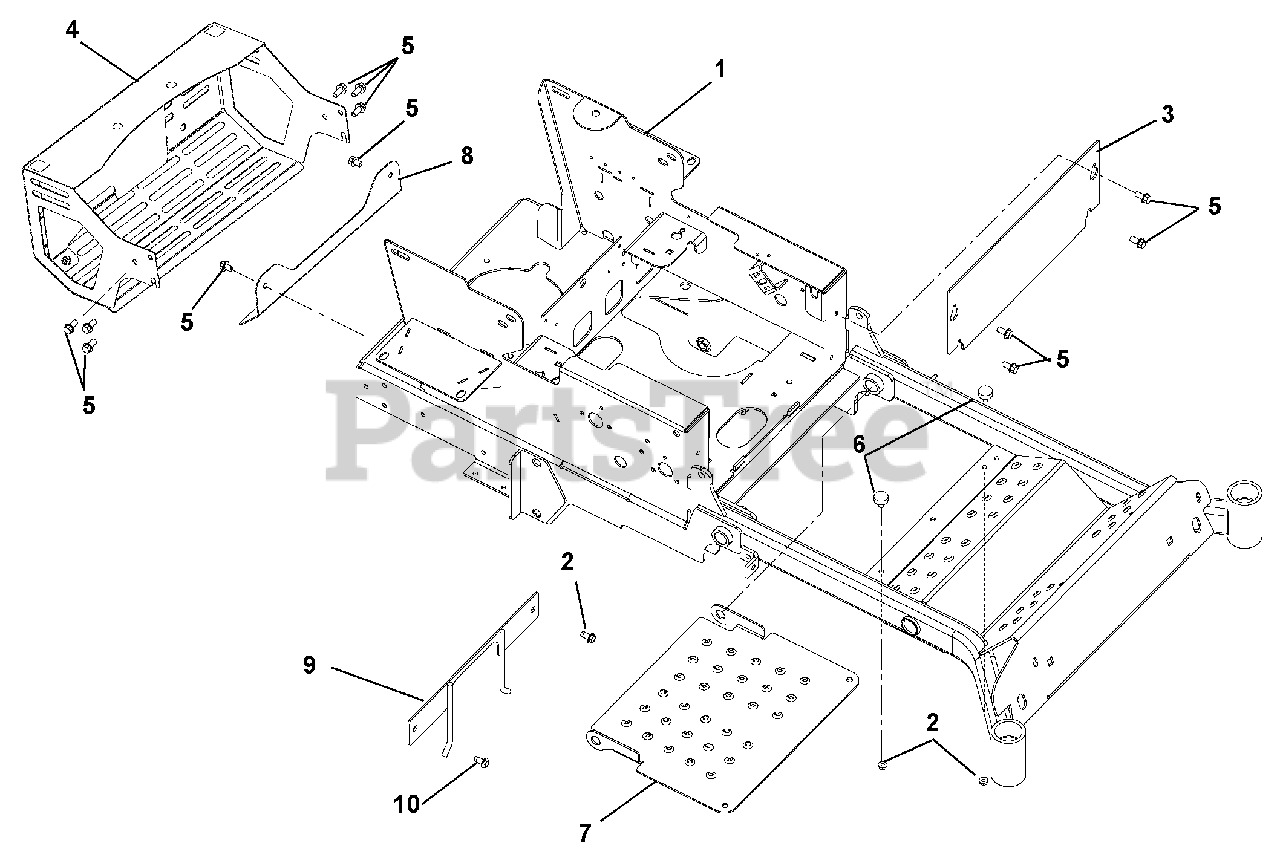

Frame Parts Diagram

  • Title
1

Ariens 03975051

WLDMT, 48" HD FRAME

Note: (991085)

$1739.99

$

Usually ships in 4-12 days

0

Ariens 03974951

WLDMT, 52/60" HD FRAME

Note: (991086, 087)

$2106.99

$

Usually ships in 4-12 days

0

2

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 02989059

PLATE, KICK

$

$

Not available

4

Ariens 59105600

KIT, BUMPER ARIENS MAX ZOOM

$

$

Not available

5

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

7

Ariens 00298959

PANEL, INSPECTION

$81.99

$

Usually ships in 4-12 days

0

8

Ariens 04672751

BRKT, HEAT SHIELD - MUFFLER

$22.99

$

In Stock, only 1 left!

0

9

Ariens 04053651

PTO BELT FINGER WLDMT - BLK

$28.99

$

Usually ships in 4-12 days

0

10

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
