991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 030000 - 044999) Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

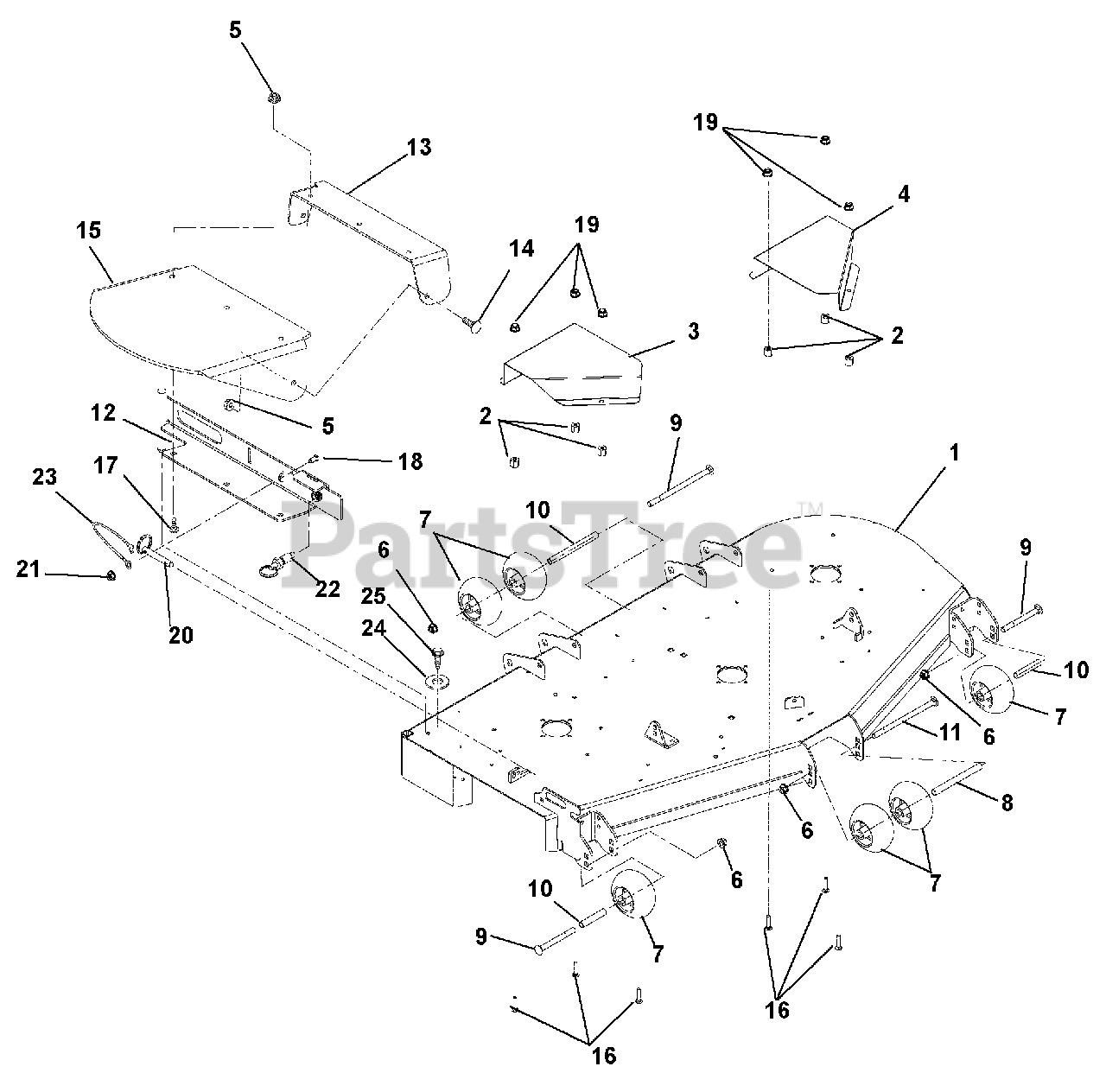

Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

  • Title

1

Ariens 59102700

KIT,DECK - 60" W/SAFETY DECALS

Note: (991087)

$896.99

$

Usually ships in 4-12 days

0

1

Ariens 59102800

KIT,DECK - 52" W/SAFETY DECALS

Note: (991086)

$1099.99

$

Usually ships in 4-12 days

0

1

Ariens 59102900

KIT,DECK - 48" W/SAFETY DECALS

Note: (991085)

$813.99

$

Usually ships in 4-12 days

0

2

Ariens 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 04728559

GUARD, DECK 60"-66" RH

Note: (991087)

$51.99

$

Usually ships in 4-12 days

0

3

Ariens 04742759

GUARD, DECK 44"-52" RH

Note: (991085, 086)

$63.99

$

Usually ships in 4-12 days

0

4

Ariens 04728659

GUARD, DECK 60"-66" LH

Note: (991087)

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 04742859

GUARD, DECK 44"-52" LH

Note: (991085, 086)

$62.99

$

Usually ships in 4-12 days

0

5

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991085)

$11.99

$

In Stock, Qty 20+

0

7

Ariens 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991086, 087)

$11.99

$

In Stock, Qty 20+

0

8

Ariens 00473800

SPACER, .510X.625X6.50

Note: (991085)

$21.99

$

In Stock, Qty 20+

0

8

Ariens 00473800

SPACER, .510X.625X6.50

Note: (991086, 087)

$21.99

$

In Stock, Qty 20+

0

9

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991085)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991086, 087)

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 00473700

SPACER, .510X.625X3.35

Note: (991085)

$18.99

$

In Stock, Qty 20+

0

10

Ariens 00473700

SPACER, .510X.625X3.35

Note: (991086, 087)

$18.99

$

In Stock, Qty 20+

0

11

Ariens 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991085)

$6.99

$

In Stock, Qty 20+

0

11

Ariens 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991086, 087)

$6.99

$

In Stock, Qty 20+

0

12

Ariens 04757459

WLDMT, DISCHARGE CHUTE 44"-48"

Note: (991085)

$99.99

$

Usually ships in 4-12 days

0

12

Ariens 04727959

WLDMT, DISCHARGE CHUTE 52"-60"

Note: (991086, 087)

$103.99

$

Usually ships in 4-12 days

0

13

Ariens 04728059

SUPPORT, CHUTE MOUNTING BRKT
(Superseded to 59106800)

$

$

Not available

14

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Ariens 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 15

0

16

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (991085)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

Note: (991085)

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (991085)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0

23

Ariens 06900321

CABLE, 6.0 LANYARD, NYLON

Note: (991085)

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 07500009

BUMPER,RECESSED1.50X.63 W/.31

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0
