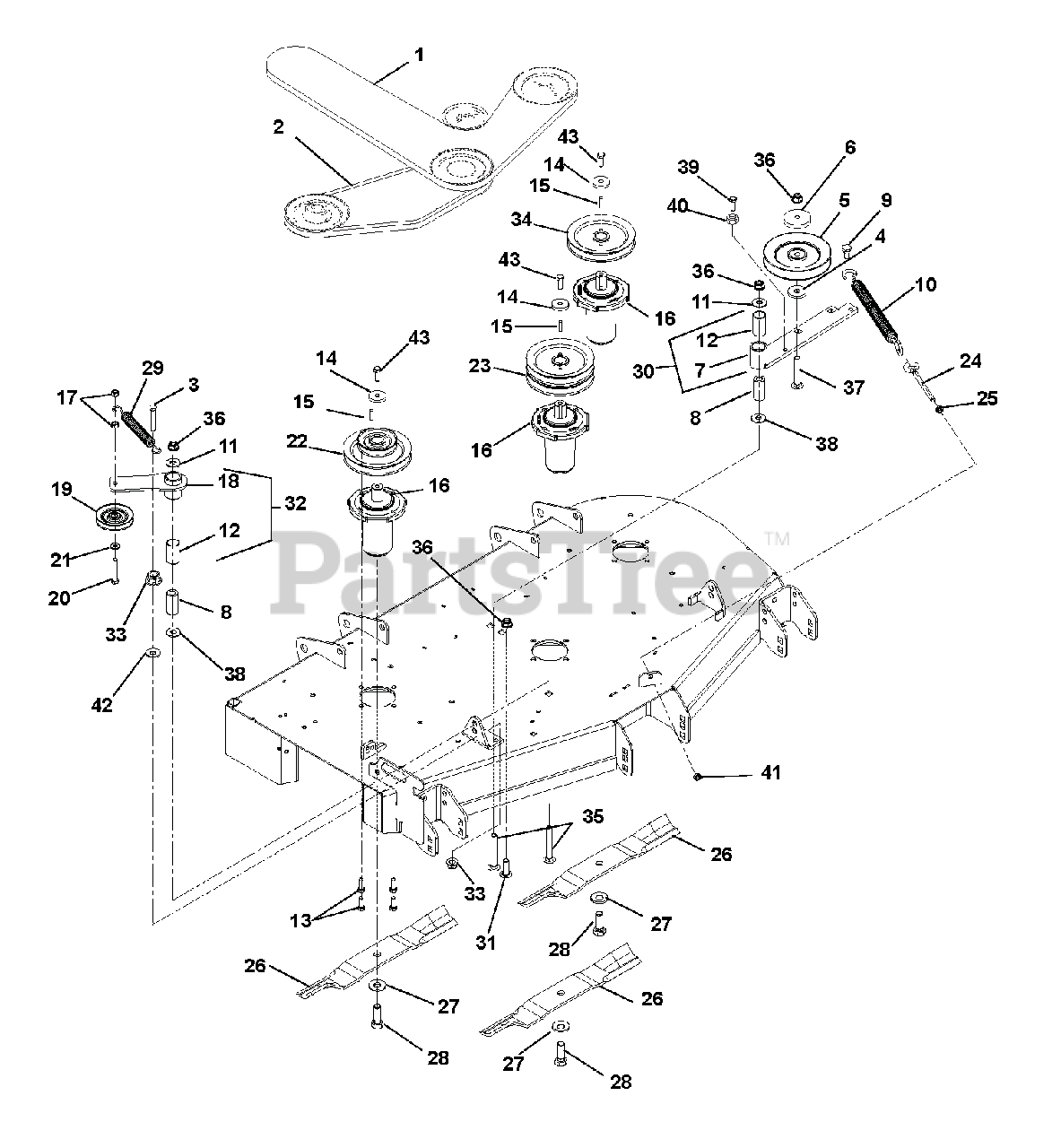

991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 020000 - 029999) Belts, Spindles, Idlers and Mower Blades- 48" Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

Belts, Spindles, Idlers and Mower Blades- 48" Parts Diagram

  • Title

1

Ariens 07200025

HEX BELT, BB-WRAPPED

Note: (PTO Belt)

$113.99

$

In Stock, only 1 left!

0

2

Ariens 07200035

V-BELT, B-COGGED

Note: (Deck Belt)

$54.99

$

In Stock, only 4 left!

0

3

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 18

0

5

Ariens 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$53.99

$

In Stock, Qty 20+

0

6

Ariens 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

7

Ariens 03774251

WMT, IDLER ARM

$68.99

$

In Stock, only 1 left!

0

8

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

9

Ariens 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

10

Ariens 08300505

SPRING, EXTENSION

Note: (PTO Deck Idler)

$25.99

$

In Stock, Qty 20+

0

11

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

12

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

13

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

15

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

16

Ariens 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

17

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03774100

WMT, IDLER ARM
(Superseded to 03774151)

$51.99

$

In Stock, only 1 left!

0

19

Ariens 07340100

IDLER, V-5.00"
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

20

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

21

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07329467

PULLEY, DBL-1"IDX5.75"&3.50"OD

$100.99

$

In Stock, only 1 left!

0

23

Ariens 07329267

PULLEY, DOUBLE-1"ID X 5.75"OD
(Superseded to 07329200)

$80.99

$

In Stock, only 1 left!

0

24

Ariens 07000030

BOLT, .38-16X4.50 .62 DIA EYE
(Superseded to 07001604)

$6.99

$

Usually ships in 4-12 days

0

25

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

27

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

28

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

29

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

Note: (Deck Belt Idler)

$26.99

$

In Stock, Qty 20+

0

30

Ariens 03796300

ASM, IDLER PIVOT ARM (PTO)
(Superseded to 59218300)

Note: (Includes item 7 and item 12)

$79.99

$

In Stock, only 1 left!

0

31

Ariens 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$5.99

$

In Stock, only 1 left!

0

32

Ariens 03796400

ASM, IDLER ARM (DECK)

Note: (Includes item 12 and item 18)

$62.99

$

Usually ships in 4-12 days

0

33

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

$68.99

$

In Stock, Qty 16

0

35

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

36

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06224900

@BLT-RDHDSQNK .50-13X3.00 G5YZ

$5.99

$

In Stock, Qty 16

0

38

Ariens 06400829

WSHR-FLT .640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

39

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

40

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

43

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0
