991084 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki (SN: 045000 - 049999) Deck, Belts, Blades And Spindles - 60" Parts Diagram

60" Zero-Turn Mower, Kawasaki

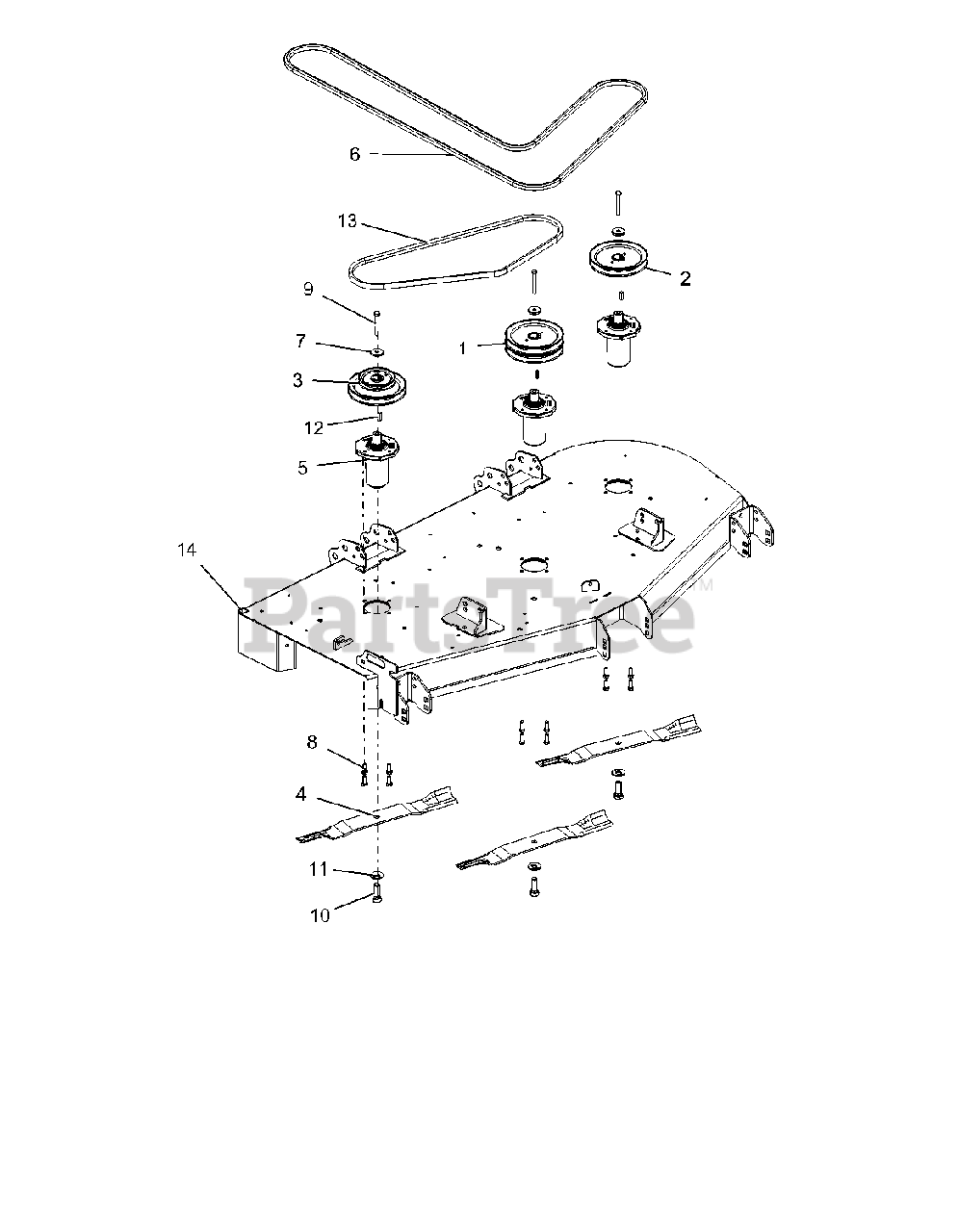

Deck, Belts, Blades And Spindles - 60" Parts Diagram

  • Title

1

Gravely 07328867

PULLEY, DOUBLE 1"ID X 6.75"OD-BLACK
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

2

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD-BLACK
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

3

Gravely 07329167

PULLEY, DOUBLE -1"X6.75"&4.25OD-BLACK

$84.99

$

In Stock, Qty 7

0

4

Gravely 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

5

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 07200028

V-Belt, BB-Wrapped Clutching

$133.99

$

In Stock, Qty 5

0

7

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, Qty 9

0

12

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

13

Gravely 07200038

BELT, B 63.00 RAW COGGED

$67.99

$

In Stock, Qty 20+

0

14

Gravely 59102300

KIT, 60" MOWER DECK W/SAFETY DECALS-RED

$1293.99

$

Usually ships in 4-12 days

0
