991084 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki (SN: 020000 - 029999) Vapor Recovery Vent Lines Parts Diagram

60" Zero-Turn Mower, Kawasaki

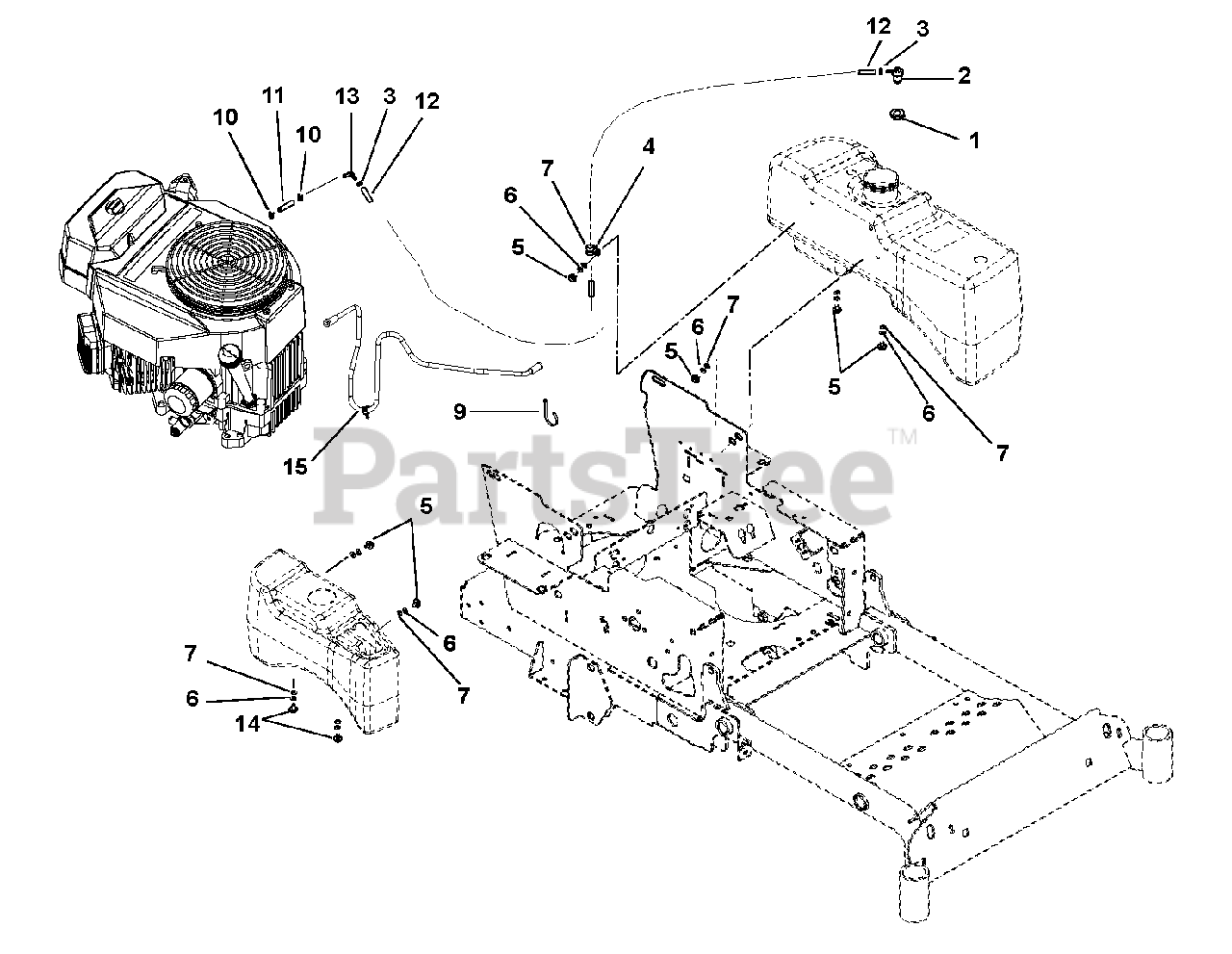

Vapor Recovery Vent Lines Parts Diagram

  • Title

1

Gravely 04082700

Grommet

$3.49

$

In Stock, Qty 10

0

2

Gravely 04068910

Valve
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

3

Gravely 03278800

Hose, Clamp (Serial No. 020000 – 024999)

Note: (Serial No. 020000 – 024999)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06908200

Clamp (Serial No. 020000 – 024999)

Note: (Serial No. 020000 – 024999)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 05947800

Bolt, .31-18 x .62
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 04192700

Cupholder, Snap-in 3.75 O.D.

$

$

Not available

9

Gravely 07517300

Tie, Cable LG 5.50

$

$

Not available

10

Gravely 04097700

Clamp, Spring .188 (Serial No. 020000 – 024999)

Note: (Serial No. 020000 – 024999)

$

$

Not available

11

Gravely 03375900

Hose, Fuel .18" (Serial No. 020000 – 024999)

Note: (Serial No. 020000 – 024999)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 03278100

Hose, Fuel .25" (Serial No. 020000 – 024999)

Note: (Serial No. 020000 – 024999)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 04097000

Fitting, 90° Vacuum .18 x .25 (Serial No. 020000 – 024999)

Note: (Serial No. 020000 – 024999)

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 06100213

Screw, Plastite .25-10 x .75 YZ
(Superseded to 06100231)

$1.49

$

In Stock, Qty 6

0

15

Gravely 04459400

Kawasaki, Line HD (Serial No. 025000 +)

Note: (Serial No. 025000 +)

$35.99

$

Usually ships in 4-12 days

0
