991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 050000 - 059999) Engine - Kawasaki FR Parts Diagram

48" Zero-Turn Mower, Kawasaki

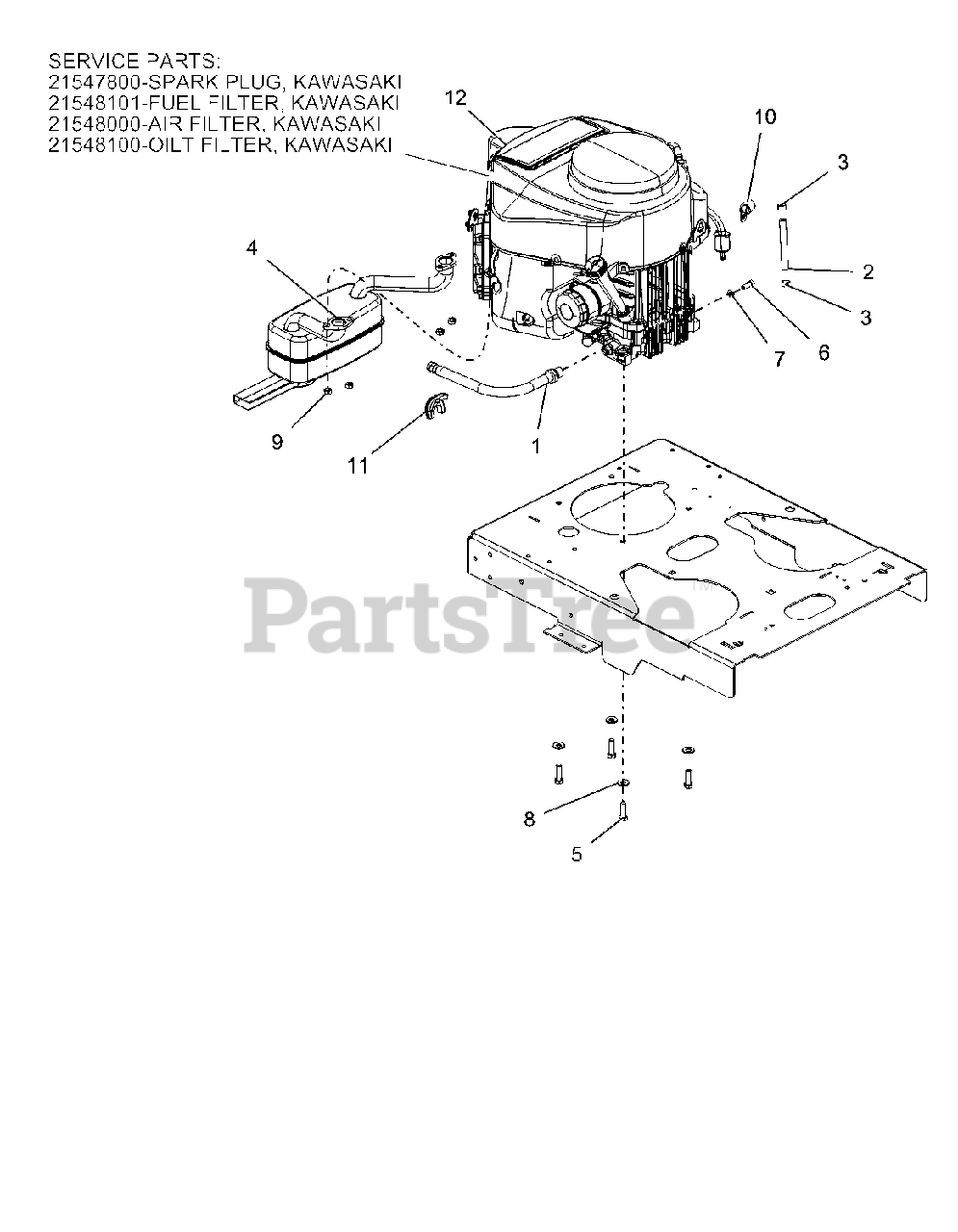

Engine - Kawasaki FR Parts Diagram

  • Title

1

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 4.00" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

5

Gravely 05901522

BLT-HEX .38-16X1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

6

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$

$

Not available

7

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

10

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 07500106

PROTECTOR, OIL DRAIN HOSE
(Superseded to 07500036)

$

$

Not available

12

Gravely 08200717

ENGINE, KAWASAKI FR SERIES

$

$

Not available

12

Gravely 21547800

SPARK PLUG, KAWASAKI
(Superseded to 21536100)

Note: SERVICE PART

$3.49

$

In Stock, only 2 left!

0

12

Gravely 21548101

FUEL FILTER, KAWASAKI
(Superseded to 21573800)

Note: SERVICE PART

$

$

Not available

12

Gravely 21548000

AIR FILTER, KAWASAKI

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0

12

Gravely 21548100

OIL FILTER, KAWASAKI
(Superseded to 49065-0721)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0
