991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 045000 - 049999) Seat Parts Diagram

48" Zero-Turn Mower, Kawasaki

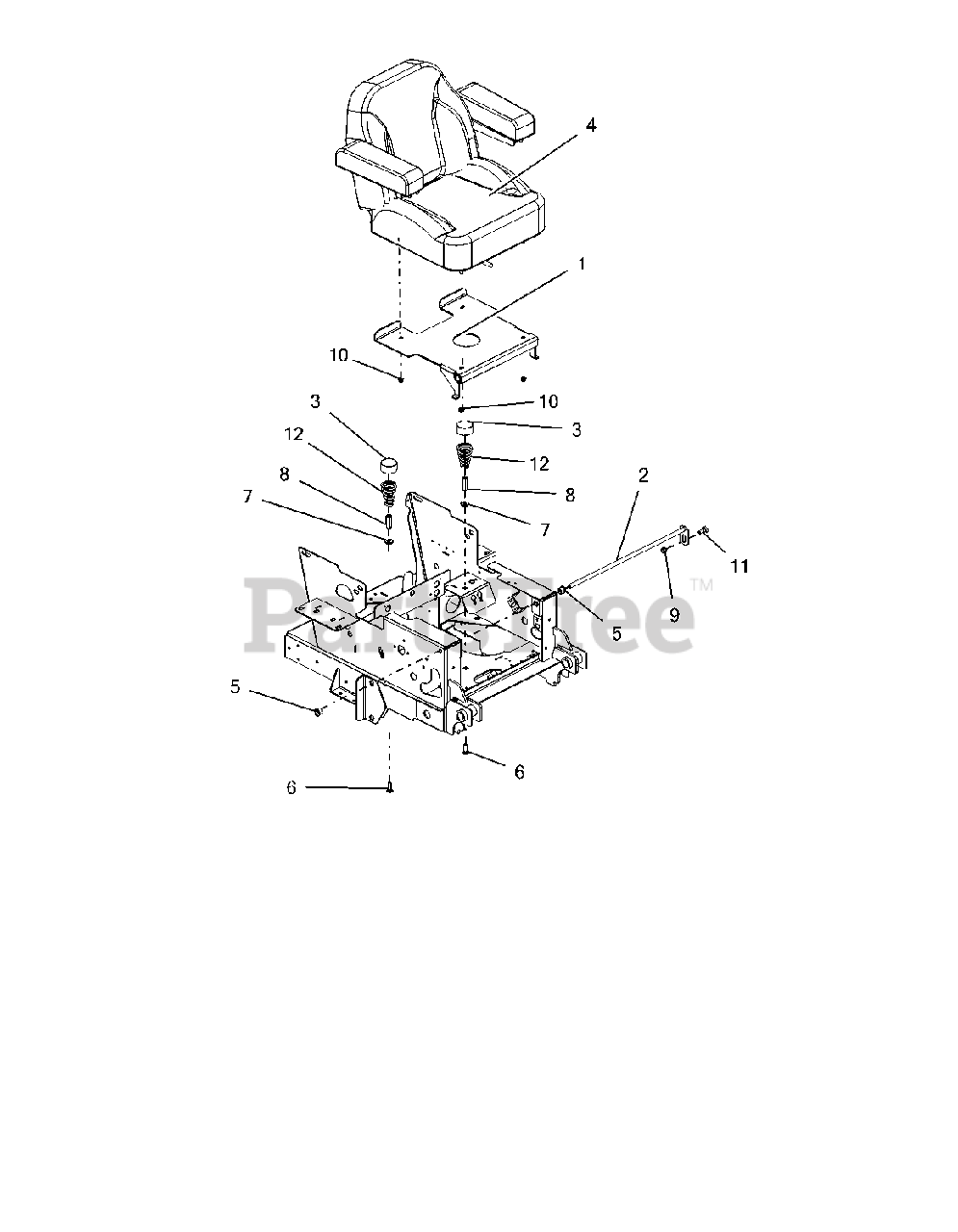

Seat Parts Diagram

  • Title

1

Gravely 02982751

-BLACK

$116.99

$

Usually ships in 4-12 days

0

2

Gravely 03255700

WLDMT, SEAT SHAFT

$

$

Not available

3

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

4

Gravely 04817700

SEAT, SK250 COOL GRAY W/ARMS

$581.99

$

Usually ships in 4-12 days

0

5

Gravely 05500901

BSHG, SHLDR EP .358-16X.30 HEX YZ

$5.99

$

In Stock, only 2 left!

0

6

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06533500

NUT-HEX COUPLING

$3.99

$

In Stock, Qty 6

0

9

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

12

Gravely 08300021

SPRG, COMPRESSION

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 59108600

KIT - LH & RH ARM REST REPLACE

Note: SERVICE PART

$

$

Not available
