991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 035000 - 044999) Mounting Arms Parts Diagram

48" Zero-Turn Mower, Kawasaki

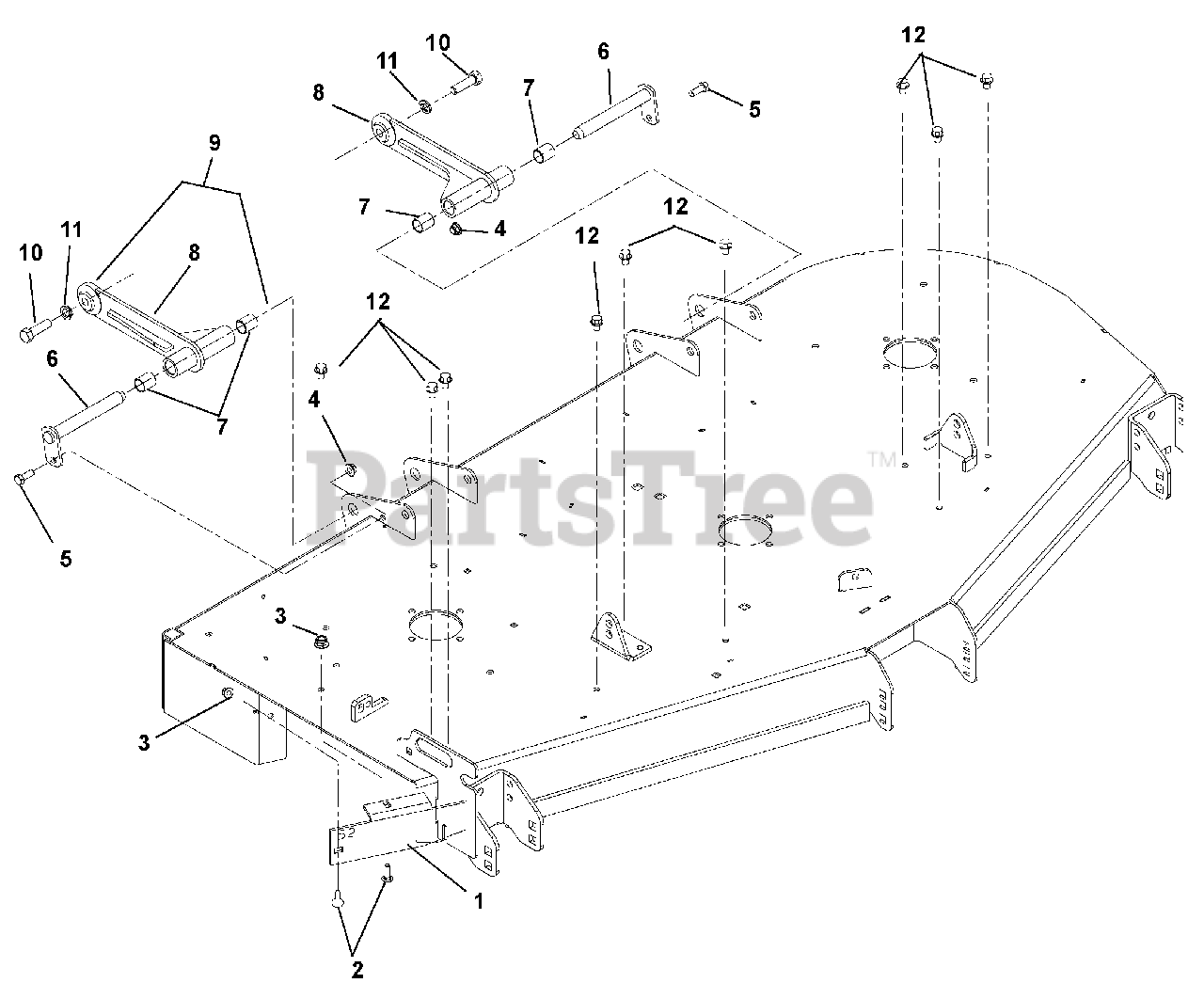

Mounting Arms Parts Diagram

  • Title

1

Gravely 04389353

Discharge Baffle, 44" & 48" (991082, 090, 098, 099, 107, 108)

Note: (991082, 090, 098, 099, 107, 108)

$71.99

$

Usually ships in 4-12 days

0

1

Gravely 04389553

Discharge Baffle, 60" (991084, 101, 110)

Note: (991084, 101, 110)

$

$

Not available

1

Gravely 04389453

Discharge Baffle, 52" (991083, 100, 109)

Note: (991083, 100, 109)

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

7

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 3 left!

0

8

Gravely 02989151

Deck Pusher Arm Weldment

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 03251800

Assembly, Mower Mount Arm (Includes items 7 and 8)

Note: (Includes items 7 and 8)

$125.99

$

In Stock, only 2 left!

0

10

Gravely 05901436

Bolt, Hex .50-13 x 1.75 Grade 5 EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
