991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 035000 - 044999) Frame Parts Diagram

48" Zero-Turn Mower, Kawasaki

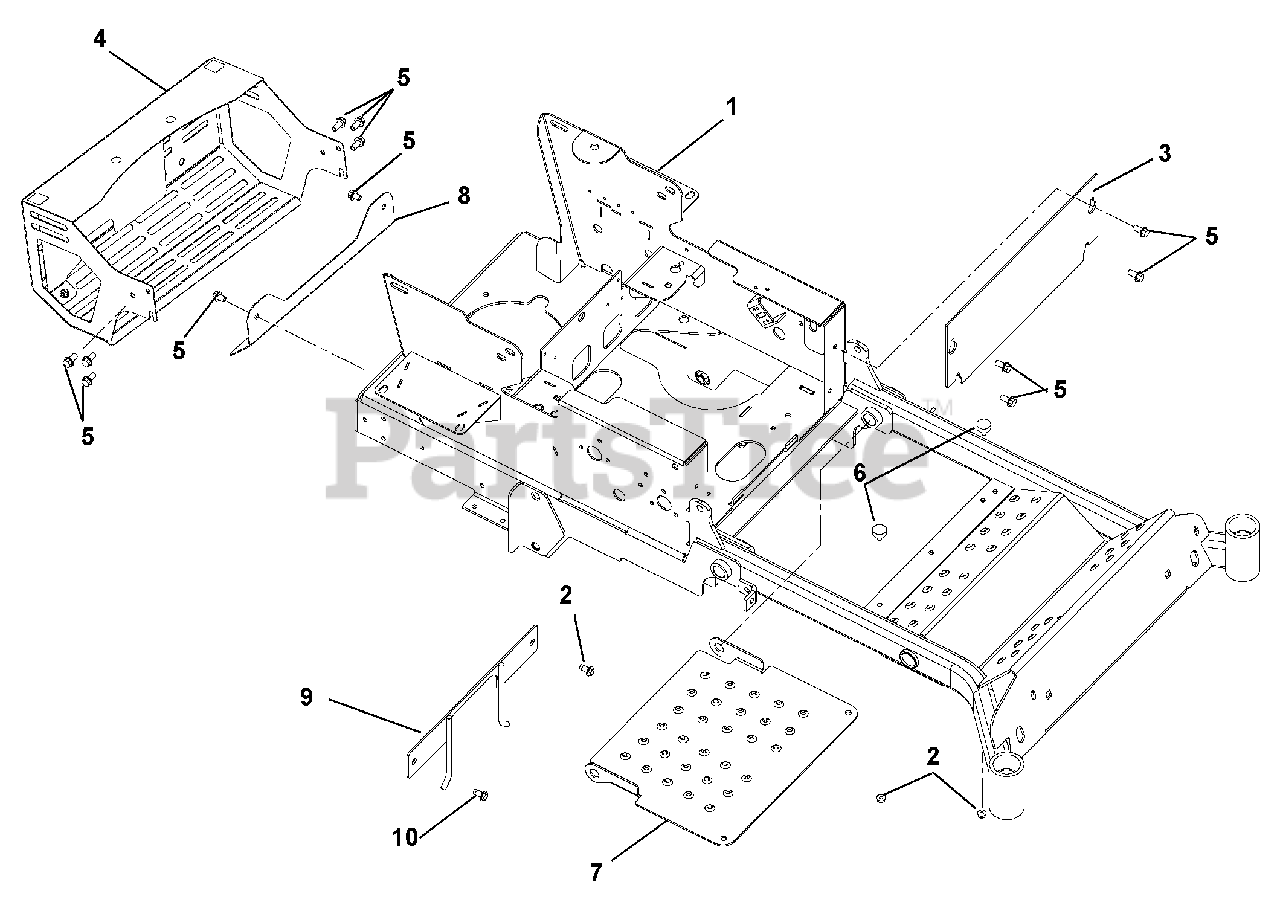

Frame Parts Diagram

  • Title

1

Gravely 03975051

Weldment, 44" – 48" HD Frame (991090, 082, 098, 099, 107, 108)

Note: (991090, 082, 098, 099, 107, 108)

$1739.99

$

Usually ships in 4-12 days

0

1

Gravely 00974951

Weldment, 52" – 60" HD Frame (991083, 084, 100, 101, 109, 110)

Note: (991083, 084, 100, 101, 109, 110)

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 02989053

Kick Plate

$

$

Not available

4

Gravely 59105700

Kit, Bumper Gravely HD

$193.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

7

Gravely 00298953

Panel, Inspection

$

$

Not available

8

Gravely 04672751

Bracket, Heat Shield — Muffler

$22.99

$

In Stock, only 1 left!

0

9

Gravely 04053651

Weldment, PTO Belt Finger

$28.99

$

Usually ships in 4-12 days

0

10

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
