991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 030000 - 034999) Hydro-Gear Hydrostatic Pump (Left Side) Parts Diagram

48" Zero-Turn Mower, Kawasaki

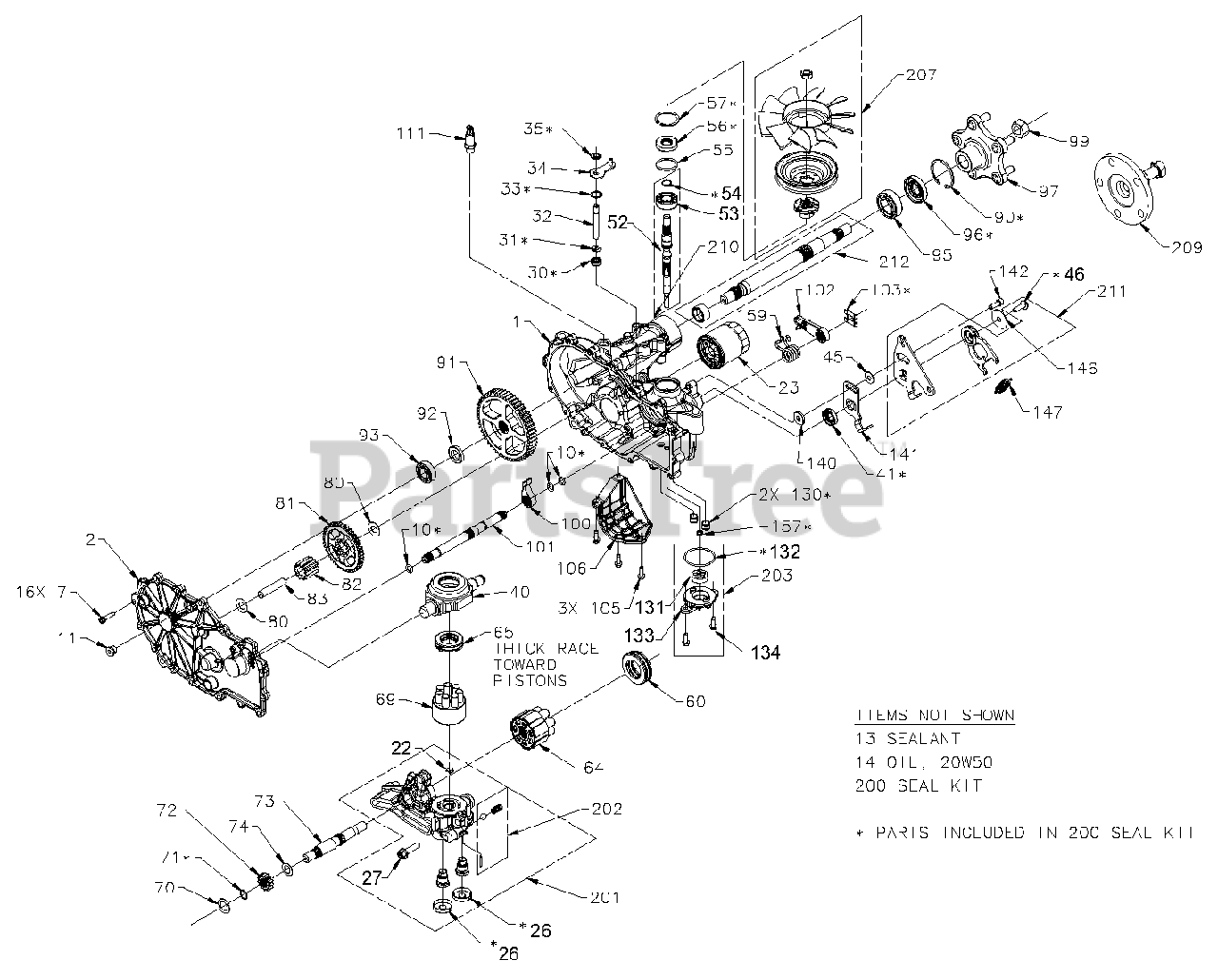

Hydro-Gear Hydrostatic Pump (Left Side) Parts Diagram

  • Title

1

KIT, MAIN HOUSING LEFT HAND

KIT, MAIN HOUSING LEFT HAND

Note: Hydro-Gear p/n 71421

$

$

Not available

2

KIT, SIDE HOUSING LEFT HAND

KIT, SIDE HOUSING LEFT HAND

Note: Hydro-Gear p/n 71574

$

$

Not available

7

Gravely 21543819

HFHCS 1/4-20 X 1.25

Note: Hydro-Gear p/n 53246

$3.49

$

Usually ships in 4-12 days

0

10

O-RING, 111 .103 X .424

O-RING, 111 .103 X .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

Gravely 08613700

PLUG, 9/16-18 (METAL)

Note: Hydro-Gear p/n 9005110-5600

$6.99

$

Usually ships in 4-12 days

0

NS

Gravely 21543771

SEALANT

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

NS

20W50 OIL

20W50 OIL

Note: N/A

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$

$

Not available

23

Gravely 21545100

FILTER, OIL

Note: Hydro-Gear p/n 52114

$

$

Not available

26

SEAL, PLUG 1.25 X .25

SEAL, PLUG 1.25 X .25

Note: Hydro-Gear p/n 52162

$

$

Not available

27

HFHCS, 3/8-16 X 1.5

HFHCS, 3/8-16 X 1.5

Note: Hydro-Gear p/n 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 X .75 X .25

Note: Hydro-Gear p/n 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RETENTION .375 EXTERNAL

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 14

0

32

ROD, BYPASS

ROD, BYPASS

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RETENTION .750 INTERNAL

Note: Hydro-Gear p/n 51627

$

$

Not available

34

ARM, BYPASS

ARM, BYPASS

Note: Hydro-Gear p/n 52370

$

$

Not available

35

Gravely 21543848

RING, RETENTION .375 EXT

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

41

SEAL, LIP 18 X 32 X 7

SEAL, LIP 18 X 32 X 7

Note: Hydro-Gear p/n 51140

$

$

Not available

45

Gravely 08611200

WASHER, .34 X .88 X .06

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

52

SHAFT, INPUT

SHAFT, INPUT

Note: Hydro-Gear p/n 52155

$

$

Not available

53

Gravely 21543738

BEARING, BALL 17 X 40 X 12 OPEN 6203

Note: Hydro-Gear p/n 50315

$19.99

$

Usually ships in 4-12 days

0

54

RING, RET WIRE .561 ID

RING, RET WIRE .561 ID

Note: Hydro-Gear p/n 2000022

$

$

Not available

55

Gravely 21543773

WASHER, 1.23 X 1.56 X .04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 X 40 X 7

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.59 INT

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

BEARING, THRUST

Note: Hydro-Gear p/n 51462

$

$

Not available

64

ASSEMBLY, CYLINDER BLOCK, 16CC

ASSEMBLY, CYLINDER BLOCK, 16CC

Note: Hydro-Gear p/n 71579

$

$

Not available

65

Gravely 08609100

BEARING, THRUST BALL 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

69

ASSEMBLY, BLOCK, 7 PISTON

ASSEMBLY, BLOCK, 7 PISTON

Note: Hydro-Gear p/n 70723

$

$

Not available

70

Gravely 21543708

WASHER, .63 X 1.0 X .05

Note: Hydro-Gear p/n 44371

$

$

Not available

71

Gravely 21543704

RING, RETAINING .625

Note: Hydro-Gear p/n 44145

$

$

Not available

72

GEAR, 13T, STEEL

GEAR, 13T, STEEL

Note: Hydro-Gear p/n 52342

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER, .72 X 1.16 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

80

Gravely 21543724

WASHER, .5 X 1.0 X .03

Note: Hydro-Gear p/n 50132

$

$

Not available

81

GEAR, 46T

GEAR, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

82

GEAR, 11T, STEEL

GEAR, 11T, STEEL

Note: Hydro-Gear p/n 52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RET 2.06 INT

Note: Hydro-Gear p/n 50859

$9.49

$

Usually ships in 4-12 days

0

91

GEAR, 54T

GEAR, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

SPACER, .75 X 1.0 X .257

SPACER, .75 X 1.0 X .257

Note: Hydro-Gear p/n 53336

$

$

Not available

93

BEARING, BALL .75 X 40 X 12

BEARING, BALL .75 X 40 X 12

Note: Hydro-Gear p/n 44121

$

$

Not available

95

Gravely 08614000

BEARING, BALL 1.0 X 52 X 15 OPEN 6205M

Note: Hydro-Gear p/n 53656

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP 25 X 52 X 10 TC (GRAY)

Note: Hydro-Gear p/n 53699

$16.99

$

In Stock, only 1 left!

0

97

KIT, HUB, 4 BOLT

KIT, HUB, 4 BOLT

Note: Hydro-Gear p/n 71446

$

$

Not available

99

Gravely 08621100

NUT, HEX LOCK 3/4-16

Note: Hydro-Gear p/n 50863

$7.49

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

PAWL, BRAKE

Note: Hydro-Gear p/n 52766

$

$

Not available

101

BRAKE SHAFT

BRAKE SHAFT

Note: Hydro-Gear p/n 52651

$

$

Not available

102

BRAKE HANDLE

BRAKE HANDLE

Note: Hydro-Gear p/n 52639

$

$

Not available

103

CLIP, RETAINING

CLIP, RETAINING

Note: Hydro-Gear p/n 52027

$

$

Not available

105

Gravely 21543759

HFHCS 1/4-20 X .75

Note: Hydro-Gear p/n 50752

$

$

Not available

106

GUARD, FILTER, RH

GUARD, FILTER, RH

Note: Hydro-Gear p/n 53655

$

$

Not available

111

FITTING, STR 9/16-18 SAE .5 BARB

FITTING, STR 9/16-18 SAE .5 BARB

Note: Hydro-Gear p/n 71393

$

$

Not available

130

TUBE, CONNECTING

TUBE, CONNECTING

Note: Hydro-Gear p/n 52157

$

$

Not available

131

Gravely 08611500

ASSEMBLY, GEROTOR TANG X 1.15 X .39

Note: Hydro-Gear p/n 50273

$27.99

$

Usually ships in 4-12 days

0

132

O-RING, -137, 0.103 X 2.05

O-RING, -137, 0.103 X 2.05

Note: Hydro-Gear p/n 52250

$

$

Not available

133

COVER, CHARGE PUMP

COVER, CHARGE PUMP

Note: Hydro-Gear p/n 52688

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20 X .75

Note: Hydro-Gear p/n 50752

$

$

Not available

140

SPACER, .320 X 1.00 X .179

SPACER, .320 X 1.00 X .179

Note: Hydro-Gear p/n 52527

$

$

Not available

141

ARM, NEUTRAL LEFT

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51946

$

$

Not available

142

Gravely 21543843

SHCS 5/16-24 X 1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 X 1.5 X .062

Note: Hydro-Gear p/n 51950

$6.49

$

Usually ships in 4-12 days

0

147

SPRING, EXTENSION RTN - 34 LBS

SPRING, EXTENSION RTN - 34 LBS

Note: Hydro-Gear p/n 51833

$

$

Not available

156

CAP, AXLE

CAP, AXLE

Note: Hydro-Gear p/n 53088

$

$

Not available

157

SEAL, LIP 8 X 12 X 3 VC

SEAL, LIP 8 X 12 X 3 VC

Note: Hydro-Gear p/n 53456

$

$

Not available

159

SPRING, TORSION CCW

SPRING, TORSION CCW

Note: Hydro-Gear p/n 53429

$

$

Not available

200

KIT, SEAL (*-PARTS INLCUDED IN THIS KIT)

KIT, SEAL (*-PARTS INLCUDED IN THIS KIT)

Note: Hydro-Gear p/n 71410

$

$

Not available

201

KIT, CENTER SECTION, RH, CHRG

KIT, CENTER SECTION, RH, CHRG

Note: Hydro-Gear p/n 71568

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n 71436

$

$

Not available

203

KIT, CHARGE PUMP (INCLUDES ITEMS 131, 132, 133, 134)

KIT, CHARGE PUMP (INCLUDES ITEMS 131, 132, 133, 134)

Note: Hydro-Gear p/n 71411

$

$

Not available

207

KIT, FAN AND PULLEY

KIT, FAN AND PULLEY

Note: Hydro-Gear p/n 72124

$

$

Not available

209

HUB PULLER, 4 BOLT

HUB PULLER, 4 BOLT

Note: Hydro-Gear p/n 71459

$

$

Not available

210

KIT, INPUT SHAFT (INCLUDES ITEMS 52, 53, 54)

KIT, INPUT SHAFT (INCLUDES ITEMS 52, 53, 54)

Note: Hydro-Gear p/n 71442

$

$

Not available

211

KIT, ARM CONTROL (INCLUDES ITEMS 44, 46, 145)

KIT, ARM CONTROL (INCLUDES ITEMS 44, 46, 145)

Note: Hydro-Gear p/n 71633

$

$

Not available

212

KIT, AXLE SHAFT (INCLUDES ITEMS 94, 109)

KIT, AXLE SHAFT (INCLUDES ITEMS 94, 109)

Note: Hydro-Gear p/n 71569

$

$

Not available
