991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Frame Parts Diagram

48" Zero-Turn Mower, Kawasaki

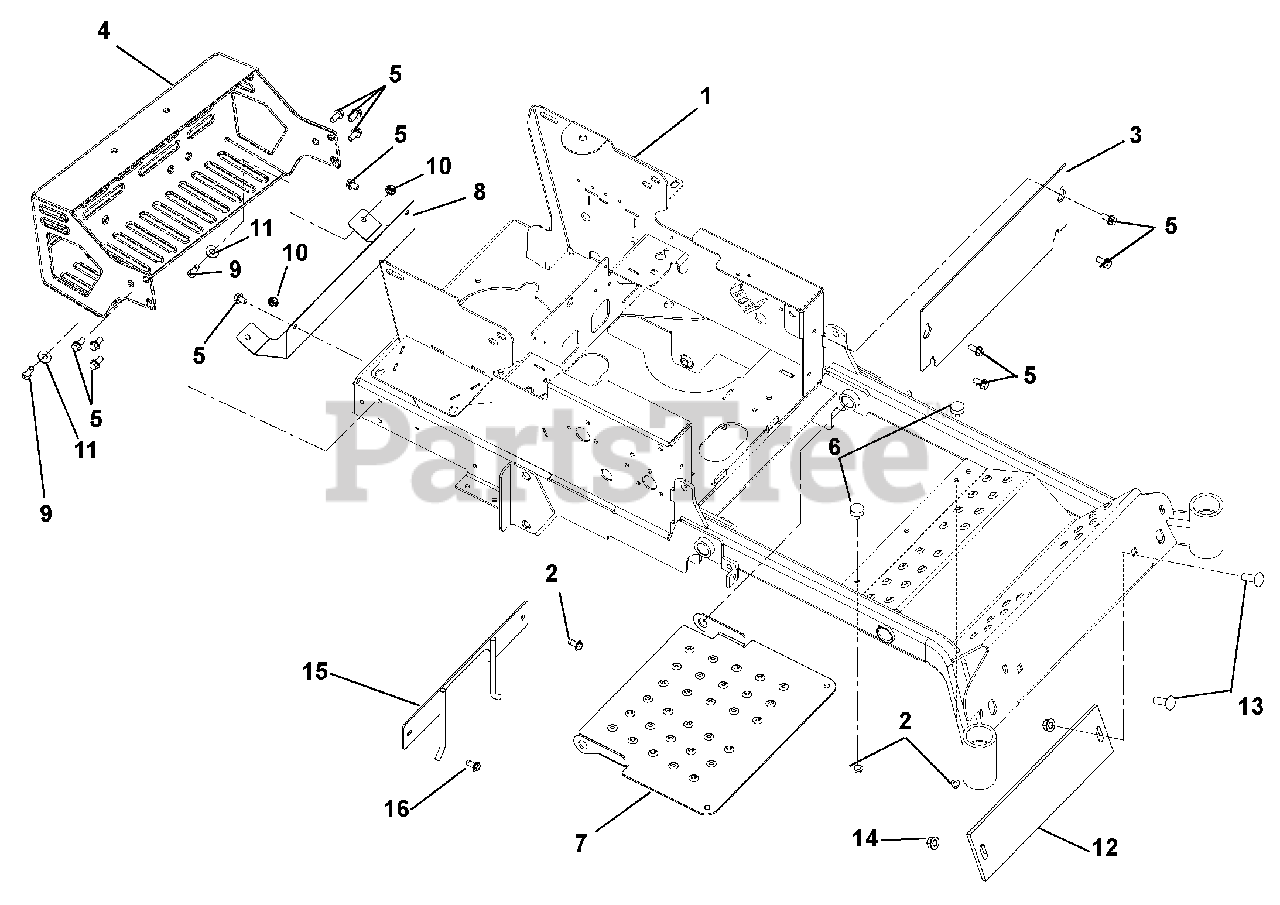

Frame Parts Diagram

  • Title

1

Gravely 03975051

Weldment, 44" – 48" HD Frame (991090, 082)

Note: (991090, 082)

$1739.99

$

Usually ships in 4-12 days

0

1

Gravely 03974951

Weldment, 52" – 60" HD Frame (991083, 084, 091)

Note: (991083, 084, 091)

$2106.99

$

Usually ships in 4-12 days

0

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 02989053

Kick Plate

$

$

Not available

4

Gravely 03994551

Bumper, Gravely HD

$167.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

7

Gravely 00298953

Panel, Inspection

$

$

Not available

8

Gravely 00462351

Heat Shield

$49.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 01922851

Counterweight CZ Front (991090, 082)

Note: (991090, 082)

$33.99

$

Usually ships in 4-12 days

0

13

Gravely 06200119

Bolt, Round Head Square Neck .50-13 x 2.25 Grade 5
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

14

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 04053651

Weldment, PTO Belt Finger

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
