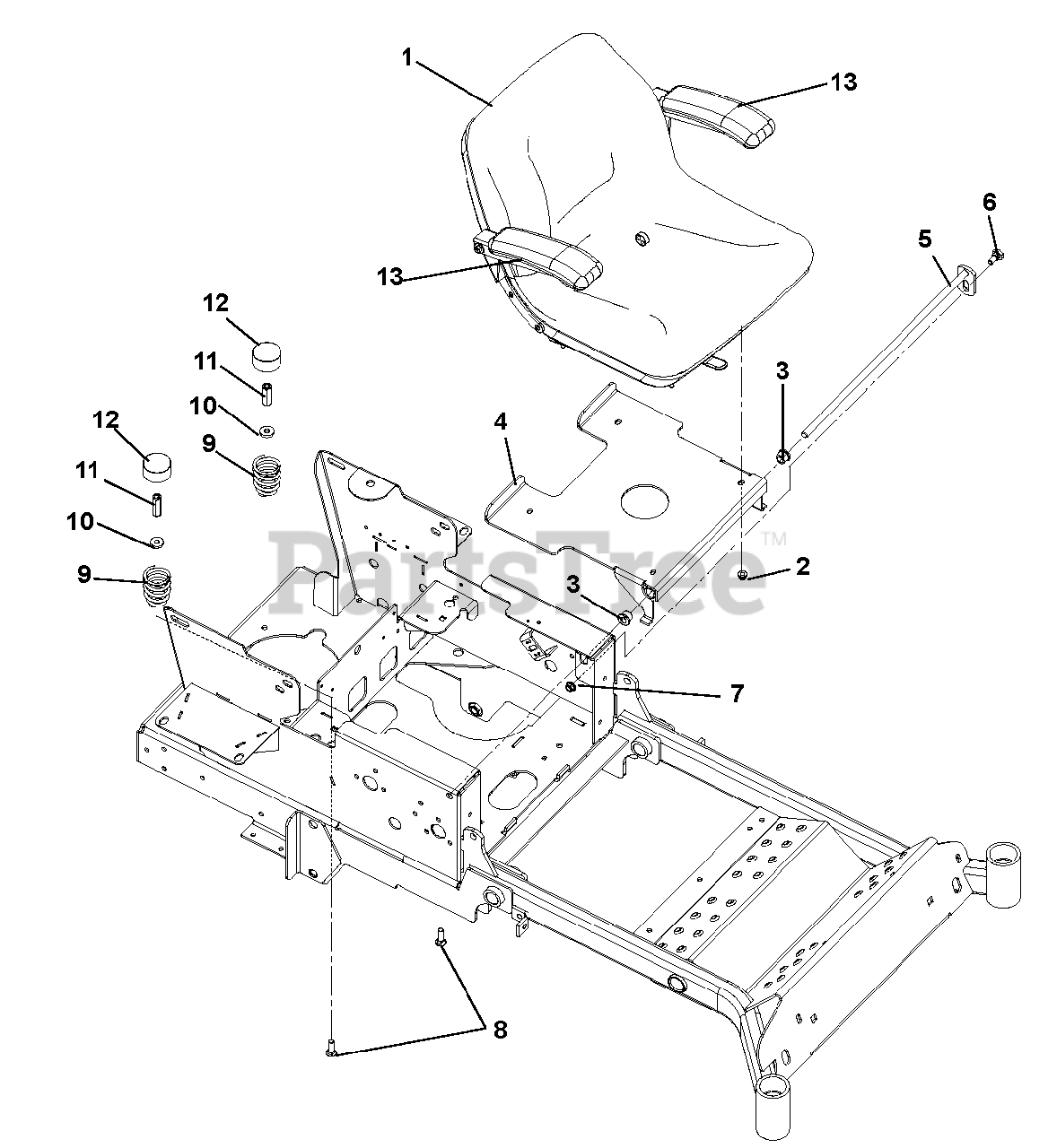

991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 009999) Seat Parts Diagram

48" Zero-Turn Mower, Kawasaki

Seat Parts Diagram

  • Title

1

3829400

Assembly, Seat with Armrests

$

$

Not available

2

Gravely 6545400

Nut, Nyloc Flange 5/16-18

$

$

Not available

3

5500901

Bushing, Flange .515 x .750 x .745 x 1.00

$

$

Not available

4

2982751

Weldment, Seat Plate

$

$

Not available

5

3255700

Weldment, Seat Shaft

$

$

Not available

6

Gravely 7000034

Bolt, Shoulder EP .38-16 x .30 Hex

$

$

Not available

7

Gravely 6534900

Nut, .38-16 Nyloc Flange

$

$

Not available

8

6224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5

$

$

Not available

9

8300021

Spring, Seat

$

$

Not available

10

6444000

Washer, Flat-Steel .406 x 1.00 x .188

$

$

Not available

11

6533500

Nut, Coupling .375-16 x 1.75

$

$

Not available

12

337700

Hub Cap

$

$

Not available

13

Gravely 71600500

Kit, Seat Arm Rests

$206.99

$

Usually ships in 4-12 days

0
