991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 009999) Electrical System Parts Diagram

48" Zero-Turn Mower, Kawasaki

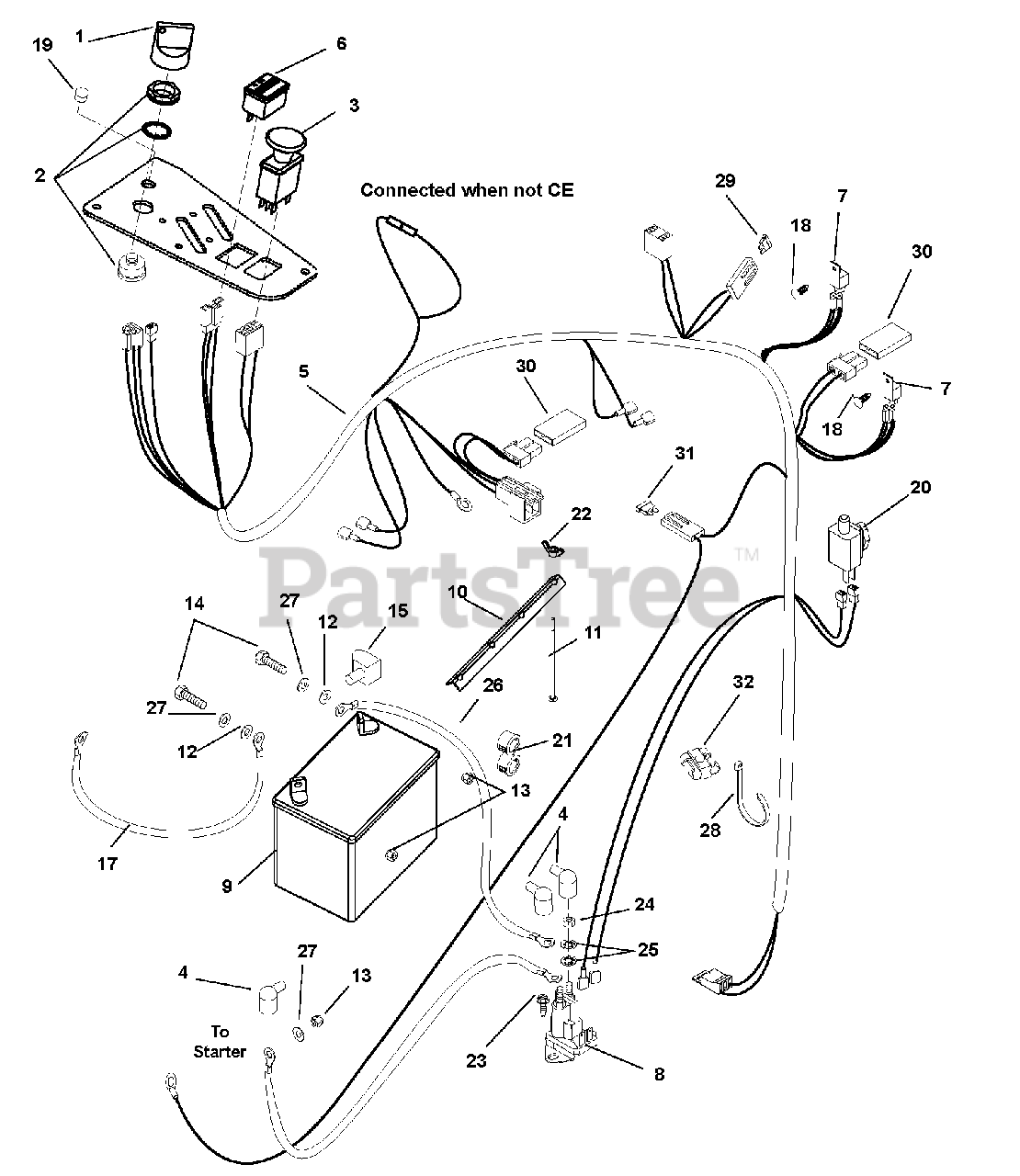

Electrical System Parts Diagram

  • Title

1

Gravely 09287000

Key, with Shield

$14.99

$

In Stock, Qty 20+

0

2

Gravely 04331700

Switch, Ignition

$43.99

$

In Stock, Qty 11

0

3

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

4

Gravely 00525800

Boot, Eyelet Terminal

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 03288500

Harness, CZ Remote SOL.
(Superseded to 04762400)

$155.99

$

In Stock, only 1 left!

0

6

Gravely 03966800

Hour Meter, with Maintenance
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

7

Gravely 00432100

Relay, Sealed with Diode
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 00696900

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

9

Gravely 01554800

Battery

$

$

Not available

10

Gravely 03494051

Hold Down

$11.99

$

In Stock, only 2 left!

0

11

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06437300

Washer, Flat Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

14

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 03286000

Cable, Positive Battery 9.00"

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 03288100

Cable, Negative Battery

$17.99

$

In Stock, only 2 left!

0

18

Gravely 07500125

Rivet, .25 Nylon Panel

$1.49

$

In Stock, Qty 16

0

19

Gravely 07527800

Plug, Hole .50 Diameter

$

$

Not available

20

Gravely 03252300

Switch, Single Pole (N.O.) – Brake Switch

Note: (N.O.) – Brake Switch

$13.99

$

In Stock, only 1 left!

0

21

Gravely 07500126

Bushing, Panel Snap .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

23

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

25

Gravely 06307200

Washer, Star Washer .31 x .078 Regular
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 03492500

Cable, Starter

$21.99

$

Usually ships in 4-12 days

0

27

Gravely 06308400

Washer, Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07517300

Tie, Cable LG 5.50

$

$

Not available

29

Gravely 00580600

Fuse 20AMP

$5.99

$

In Stock, Qty 12

0

30

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

31

Gravely 09351100

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

32

Gravely 07001622

Clip,T,.31-.38

$3.99

$

Usually ships in 4-12 days

0
