991081 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 041000 & Above) Deck And Mounting Arms, 60" Deck Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

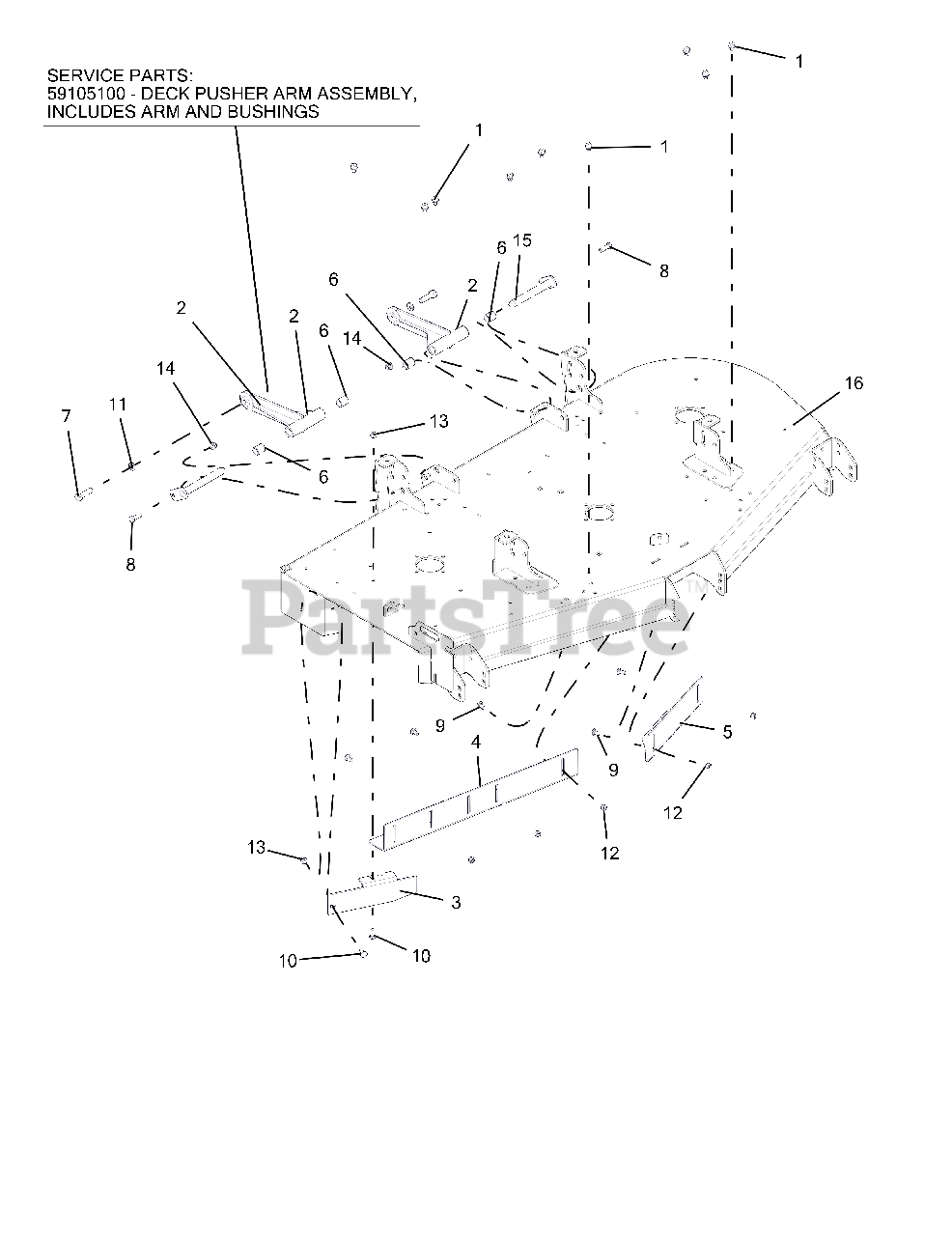

Deck And Mounting Arms, 60" Deck Parts Diagram

  • Title

1

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 04243551

WLDMT, DECK PUSHER ARM

$170.99

$

In Stock, only 1 left!

0

2

Gravely 59105100

DECK PUSHER ARM ASSEMBLY

$

$

Not available

3

Gravely 00374153

BAFFLE, 60" DISCHARGE

$28.99

$

In Stock, only 1 left!

0

4

Gravely 00952551

BAFFLE, 60" RH VACUUM
(Superseded to 05251951)

$51.99

$

In Stock, only 1 left!

0

5

Gravely 00952651

BAFFLE, 60" LH VACUUM
(Superseded to 05252051)

$44.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 3 left!

0

7

Gravely 05901436

BLT-HEX .50-13X1.75 GR5 YWZC EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

16

Gravely 59104200

KIT, PT160 MOWER DECK W/SAFETY DECALS-RED

$1384.99

$

Usually ships in 4-12 days

0
