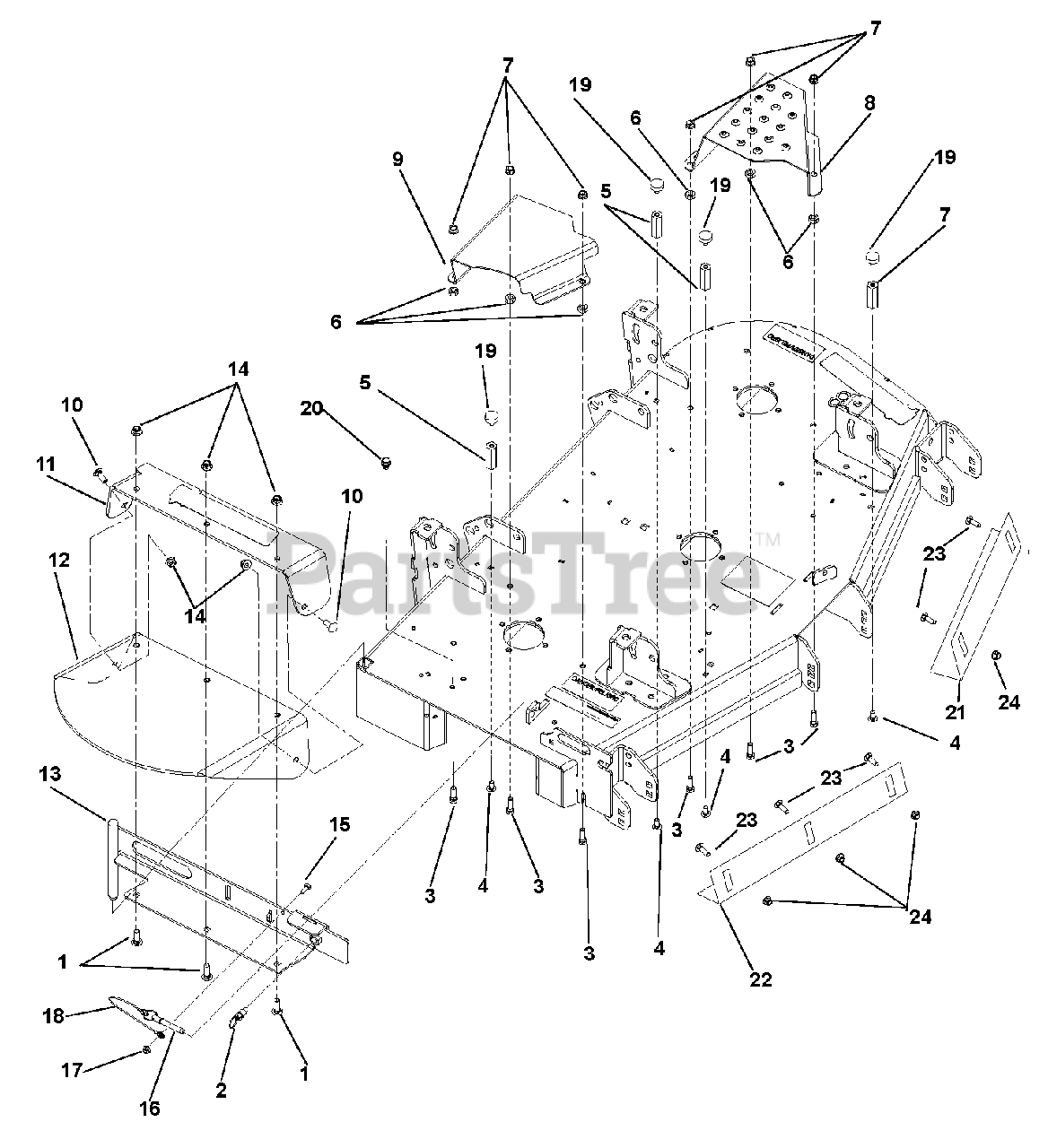

991080 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 021000 - 029999) Discharge Chute & Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

Discharge Chute & Belt Covers Parts Diagram

  • Title
1

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07000037

Pull Pin

$10.99

$

In Stock, only 1 left!

0

3

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

6

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03977151

Guard, Left Hand Deck Belt, 44 – 52 (991079, 080, 095, 096, 102, 103)

Note: (991079, 080, 095, 096, 102, 103)

$90.99

$

In Stock, only 1 left!

0

Gravely 03977251

Guard, Left Hand Deck Belt, 60 (991081, 097, 104)

Note: (991081, 097, 104)

$71.99

$

In Stock, only 2 left!

0

9

Gravely 04590251

Guard, Right Hand Deck Belt, 48 – 52 (991079, 080, 095, 096, 102, 103)

Note: (991079, 080, 095, 096, 102, 103)

$56.99

$

In Stock, only 2 left!

0

Gravely 03982251

Guard, Right Hand Deck Belt, 60 – 66 (991081, 097, 104)

Note: (991081, 097, 104)

$60.99

$

Usually ships in 4-12 days

0

10

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

11

Gravely 04551553

Rubber Discharge Chute Support

$90.99

$

Usually ships in 4-12 days

0

12

Gravely 04551600

Chute, Rubber Discharge

$68.99

$

In Stock, Qty 15

0

13

Gravely 00472453

Weldment, Discharge Chute Support, 48" (991079, 095, 102)
(Superseded to 04757453)

Note: (991079, 095, 102)

$112.99

$

Usually ships in 4-12 days

0

Gravely 00472553

Weldment, Discharge Chute Support, 52" – 60" (991080, 081, 096, 097, 103, 104)
(Superseded to 04727953)

Note: (991080, 081, 096, 097, 103, 104)

$129.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05946800

Bolt, Hex .25-20 x .75 (991079, 095, 102)
(Superseded to 05901716)

Note: (991079, 095, 102)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 01593500

Pin, Spring Ball .375OD x 1.50 (991079, 095, 102)

Note: (991079, 095, 102)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06543500

Nut, Locking Top Flange .25-20 (991079, 095, 102)
(Superseded to 06500903)

Note: (991079, 095, 102)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06900321

Cable, 6.0 Lanyard, Nylon (991079, 095, 102)

Note: (991079, 095, 102)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

20

Gravely 07412900

Screw, Self Tapping .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 04551051

Baffle, 48" Left Hand Vacuum (991079, 095, 102)
(Superseded to 05251651)

Note: (991079, 095, 102)

$21.99

$

Usually ships in 4-12 days

0

Gravely 00952951

Baffle, 52" Left Hand Vacuum (991080, 096, 103)
(Superseded to 05251851)

Note: (991080, 096, 103)

$36.99

$

In Stock, only 1 left!

0

Gravely 00952651

Baffle, 60" Left Hand Vacuum (991081, 097, 104)
(Superseded to 05252051)

Note: (991081, 097, 104)

$44.99

$

Usually ships in 4-12 days

0

22

Gravely 04550951

Baffle, 48" Right Hand Vacuum (991079, 095, 102)
(Superseded to 05251551)

Note: (991079, 095, 102)

$54.99

$

Usually ships in 4-12 days

0

Gravely 00952851

Baffle, 52" Right Hand Vacuum (991080, 096, 103)
(Superseded to 05251751)

Note: (991080, 096, 103)

$43.99

$

Usually ships in 4-12 days

0

Gravely 00952551

Baffle, 60" Right Hand Vacuum (991081, 097, 104)
(Superseded to 05251951)

Note: (991081, 097, 104)

$51.99

$

In Stock, only 1 left!

0

23

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06530200

Nut, Lock Nyloc .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
