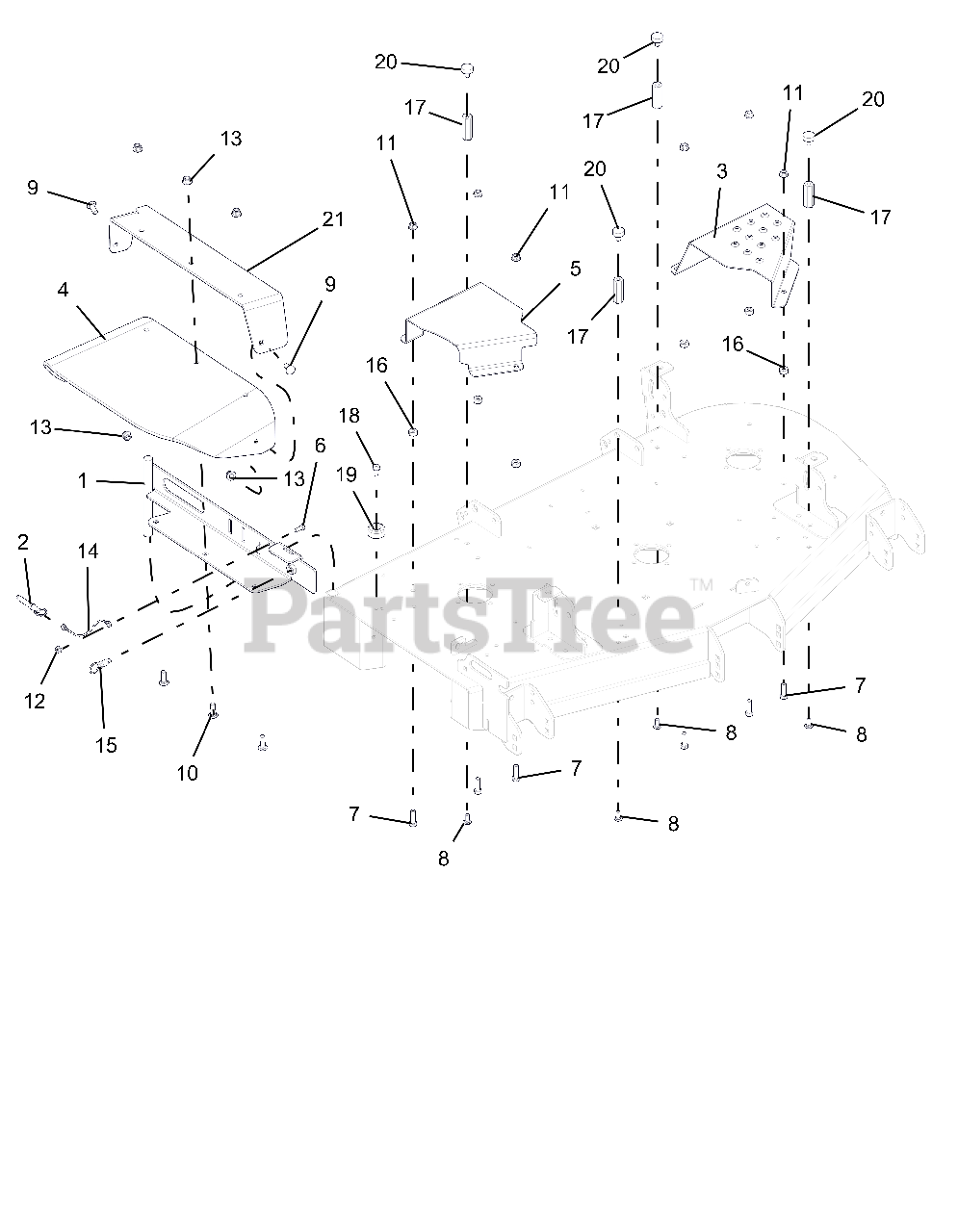

991079 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki (SN: 040000 - 040999) Chute & Belt Covers, 48" Deck Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki

Chute & Belt Covers, 48" Deck Parts Diagram

  • Title
1

Gravely 00980453

WLDMT, 44"-48" DISCH CHUTE MTG-RED
(Superseded to 04757453)

$112.99

$

Usually ships in 4-12 days

0

2

Gravely 01593500

PIN, SPRING BALL .375 OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 03977151

GUARD, 44-52" LH DECK BELT-BLACK

$90.99

$

In Stock, only 1 left!

0

4

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 15

0

5

Gravely 04590251

GUARD, 48"-52" RH DECK BELT-BLACK

$56.99

$

In Stock, only 2 left!

0

6

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06200002

BLT, RDHDSQNK .31-18X.75 LOCTITE
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

9

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

10

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0

16

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07001630

NUT, .31-18 X 2.25 LG COUPLING

$32.99

$

Usually ships in 4-12 days

0

18

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

19

Gravely 07500009

BUMPER, RECESSED 1.50 X .63 W/.31 HOLE

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

21

Gravely 59218500

DISCHARGE CHUTE SUPPORT W/SAFETY DECAL-RED

$102.99

$

Usually ships in 4-12 days

0
