991078 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

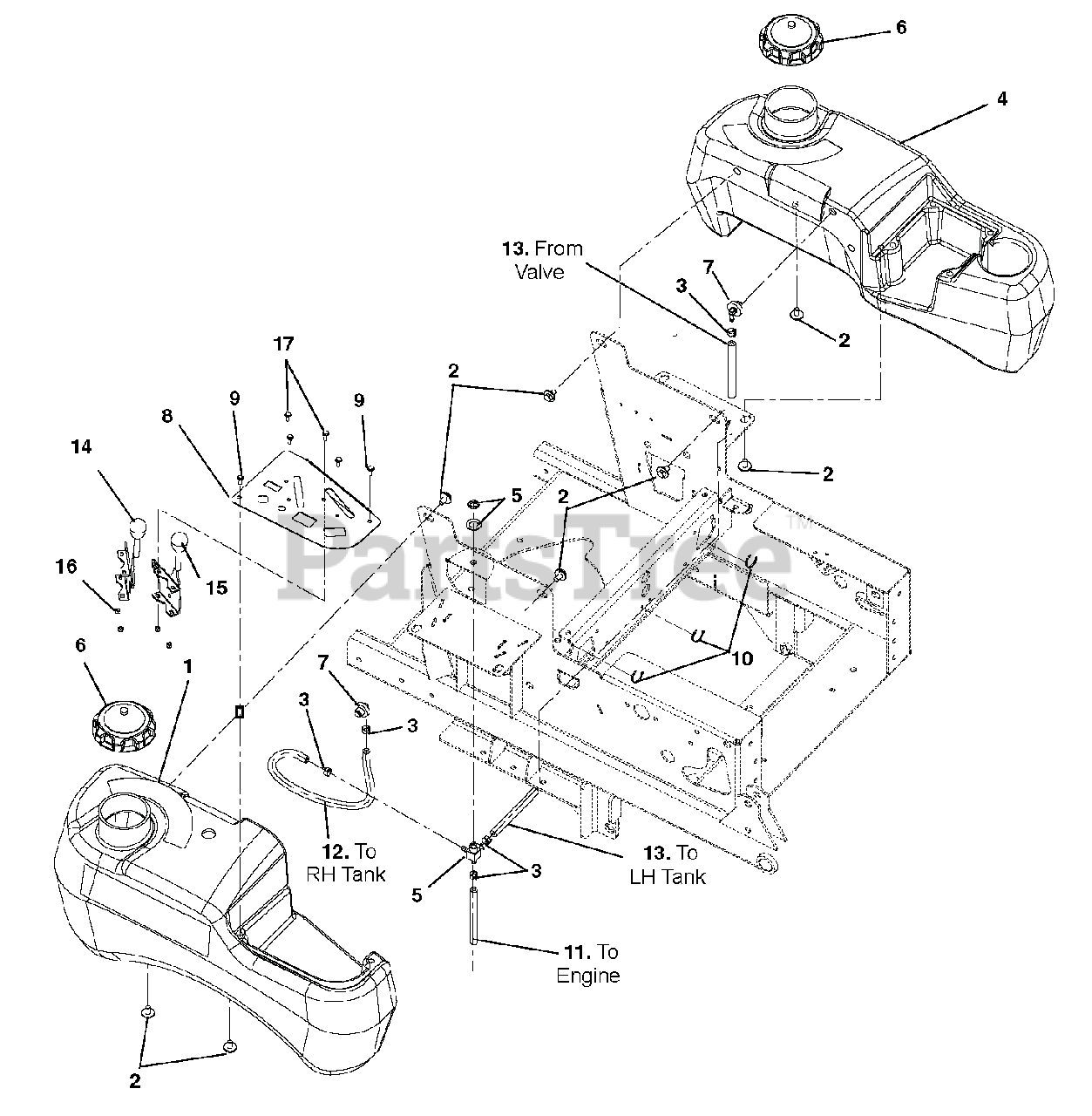

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 03973300

TANK,RH FUEL,100I

$276.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03973400

TANK,LH FUEL,100I

$276.99

$

In Stock, only 2 left!

0

5

Gravely 09258200

VALVE, FUEL

$47.99

$

In Stock, Qty 20+

0

6

Gravely 03859100

CAP, FUEL

$28.99

$

In Stock, Qty 16

0

7

Gravely 03900300

ASS'Y,MEDIUM TANK FUEL PICK-UP
(Superseded to 04320900)

$39.99

$

In Stock, Qty 20+

0

8

Gravely 04039151

PT100 CONTROL PANEL - BLACK

$30.99

$

Usually ships in 4-12 days

0

9

Gravely 06100137

SCR-MCH 10-24X.50 HWHSTAINLESS

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

11

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06900418

CABLE, PT 100 CHOKE CONTROL

$59.99

$

Usually ships in 4-12 days

0

15

Gravely 06900417

CABLE, PT100 THROTTLE CONTROL

$71.99

$

In Stock, Qty 5

0

16

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

Note: (Not Shown)

$11.99

$

In Stock, Qty 6

0
