991078 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

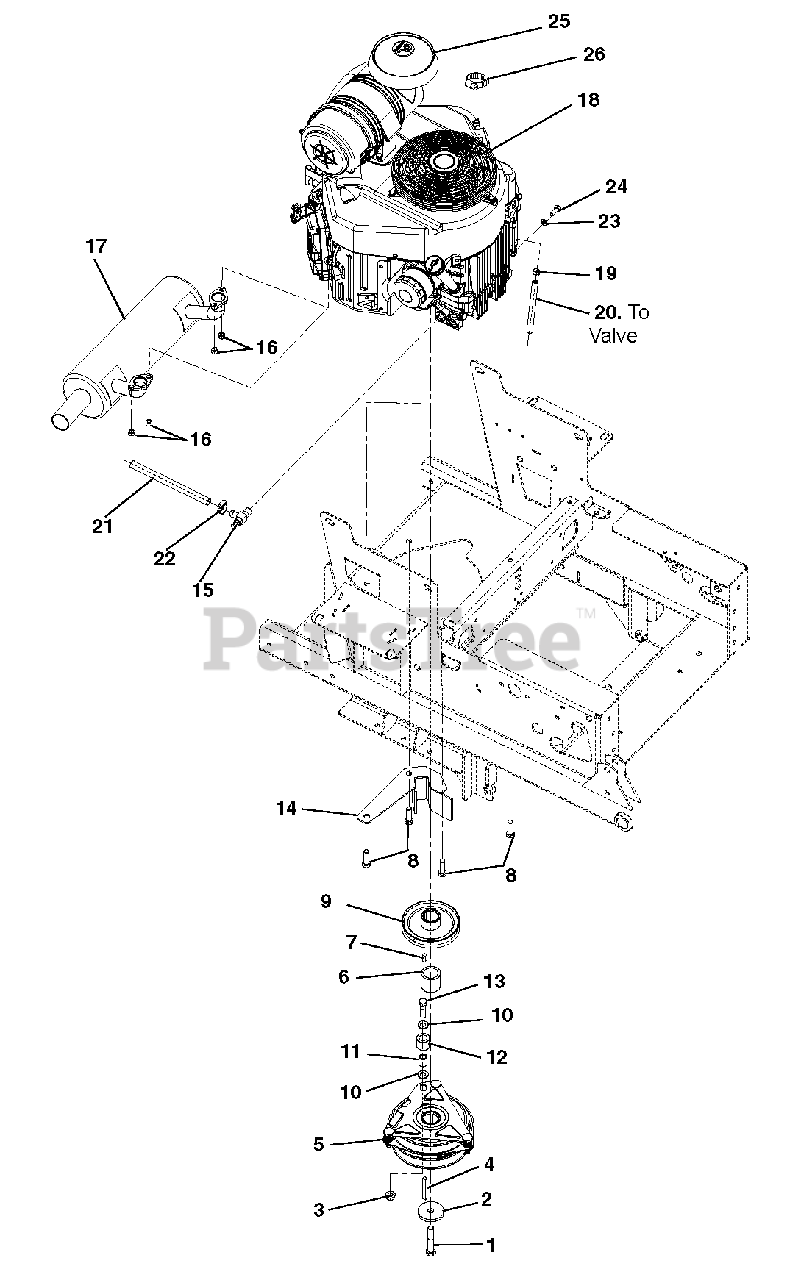

Engine And Clutch Parts Diagram

  • Title

1

Gravely 05900036

Bolt, Hex .44-20 x 2.50 Grade 5

$13.99

$

In Stock, only 1 left!

0

2

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

3

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06610300

Key .25 x .25 x 2.25

$2.99

$

In Stock, Qty 11

0

5

Gravely 03785000

Clutch, Ogura GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

6

Gravely 03829700

Spacer, 1.125 x 1.50 x 1.40

$20.99

$

In Stock, only 1 left!

0

7

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, only 3 left!

0

8

Gravely 05900125

Bolt, Hex .38-16 x 1.25 FTH Grade 5
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 07300106

Sheave, 4.831 x 1.127
(Superseded to 07331667)

$

$

Not available

10

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 08905500

Bushing, Sleeve .407 x .625 x .813 Steel

$13.99

$

In Stock, only 1 left!

0

12

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG Engine

$5.99

$

In Stock, only 2 left!

0

13

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

14

Gravely 03828051

100I Clutch Stop Weldment

$64.99

$

Usually ships in 4-12 days

0

15

Gravely 00429000

Drain, .50 Oil

$39.99

$

In Stock, only 1 left!

0

16

Gravely 06500018

Nut, Locking-Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

17

Gravely 03989000

Muffler, Kawasaki Fixed

$168.99

$

In Stock, only 1 left!

0

18

Gravely 08200432

Engine, Kawasaki FX691 (24HP) (076, 077)

Note: (24HP) (076, 077)

$

$

Not available

Gravely 08200431

Engine, Kawasaki FX730 (26HP) (078)

Note: (26HP) (078)

$

$

Not available

19

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

21

Gravely 01590900

Tube, Oil Drain 8" Clear Vinyl

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

In Stock, Qty 6

0

23

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05973300

Bolt, Hex M8-1.25 x 20
(Superseded to 05901628)

$

$

Not available

25

Gravely 04088900

Cap, Air Cleaner Rain

$59.99

$

Usually ships in 4-12 days

0

26

Gravely 06900426

Clamp, Hose 2.75 Dia. Worm

$

$

Not available

Gravely 03286700

Lead, Starter Solenoid (not shown)

Note: (not shown)

$9.49

$

Usually ships in 4-12 days

0

Gravely 21548800

Air Filter Element, Outer Primary (not shown)

Note: (not shown)

$27.99

$

In Stock, Qty 20+

0

Gravely 21548700

Air Filter Element, Inner Safety (not shown)

Note: (not shown)

$27.99

$

In Stock, Qty 20+

0

Gravely 21535800

Filter, Oil- Kawasaki # 49065-2078 (not shown)
(Superseded to 49065-0724)

Note: (not shown)

$18.99

$

In Stock, Qty 20+

0

Gravely 21536100

Plug, Spark- Kawasaki P/N 92070-7004 (not shown)

Note: (not shown)

$3.99

$

In Stock, Qty 20+

0

Gravely 21538400

Filter, Fuel- Kawasaki #49019-7001 (not shown)
(Superseded to 21573800)

Note: (not shown)

$

$

Not available
