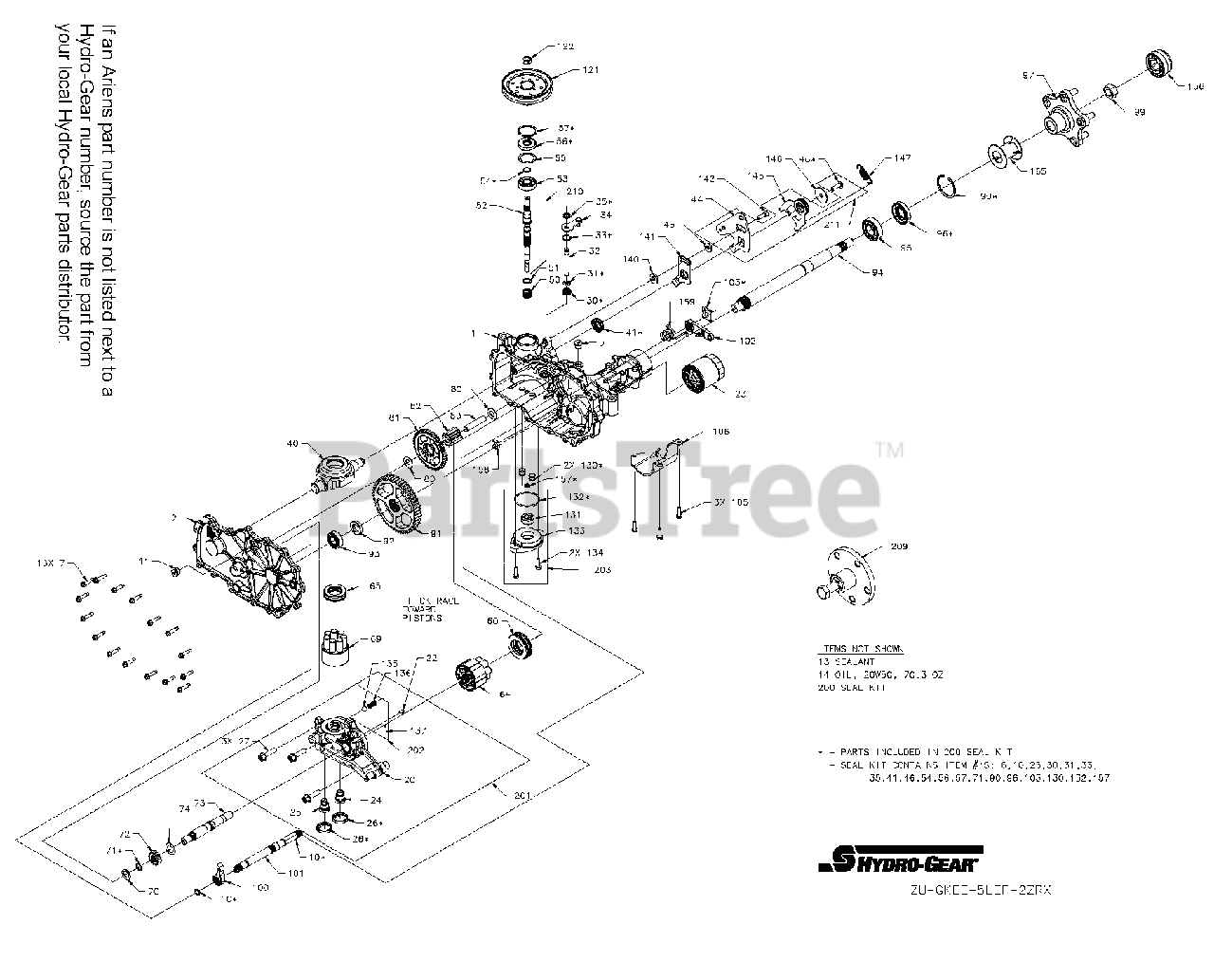

991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Transmission - RH Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

Transmission - RH Parts Diagram

  • Title

1

KIT, HOUSING,MAIN,RH,CHRG,CNTL

Note: Hydro-Gear p/n: 71984

$

$

Not available

1

Note: HOUSING, MAIN, RH, CHRG, CNTL

$

$

Not available

HOUSING, MAIN, RH, CHRG, CNTL

$

$

Not available

1

Note: BUSHING, .624 X .719 X .562

$

$

Not available

BUSHING, .624 X .719 X .562

$

$

Not available

BRG, JRNL .86 X .98 X .79

$

$

Not available

1

Note: BRG, JRNL .86 X .98 X .79

$

$

Not available

2

Note: PIN, .25 X .375

$

$

Not available

PIN, .25 X .375

$

$

Not available

(105)

3

Note: HFHCS 1/4-20 X .625

$

$

Not available

(105)

HFHCS 1/4-20 X .625

$

$

Not available

(134)

2

Note: HFHCS 1/4-20 X .625

$

$

Not available

(134)

HFHCS 1/4-20 X .625

$

$

Not available

2

KIT, COVER, SIDE, RH

Note: Hydro-Gear p/n: 71990

$

$

Not available

COVER, SIDE, RH

$

$

Not available

1

Note: COVER, SIDE, RH

$

$

Not available

BUSHING, .624 X .719 X .562

$

$

Not available

1

Note: BUSHING, .624 X .719 X .562

$

$

Not available

1

Note: BRG, JRNL .86 X .98 X .79

$

$

Not available

BRG, JRNL .86 X .98 X .79

$

$

Not available

5

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n: 9005110-5600

$

$

Not available

7

HFHCS 1/4-20 X 1.125"

Note: Hydro-Gear p/n: 53246

$

$

Not available

10

O-RING - 111 .103 X 424

Note: Hydro-Gear p/n: 51804

$

$

Not available

11

PLUG 9/16-18 (METAL)

Note: Hydro-Gear p/n: 9005110-5600

$

$

Not available

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n: 50928

$116.99

$

In Stock, only 1 left!

0

14

70.3oz

Note: OIL, 20W50

$

$

Not available

14

SYNTHETIC OIL, 15W50

$

$

Not available

22

PLATE, BYPASS

Note: Hydro-Gear p/n: 51448

$

$

Not available

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear p/n: 52114

$

$

Not available

26

SEAL, PLUG 1.250 X .250

Note: Hydro-Gear p/n: 52162

$

$

Not available

27

HFHCS 3/8-16X1.5 (PATCH)

Note: Hydro-Gear p/n: 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n: 51626

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n: 51628

$4.49

$

In Stock, Qty 14

0

32

ROD, BYPASS

Note: Hydro-Gear p/n: 52136

$

$

Not available

33

RING, RET .750 INTRNL

Note: Hydro-Gear p/n: 51627

$

$

Not available

34

ARM, BYPASS

Note: Hydro-Gear p/n: 51910

$

$

Not available

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n: 51630

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n: 51048

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

Note: Hydro-Gear p/n: 51140

$9.49

$

Usually ships in 4-12 days

0

45

WASHER .34X.88X.06

Note: Hydro-Gear p/n: 44130

$

$

Not available

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n: 51812

$2.99

$

Usually ships in 4-12 days

0

50

SPRING, BLOCK

Note: Hydro-Gear p/n: 2003014

$

$

Not available

51

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n: 2003017

$1.99

$

In Stock, only 1 left!

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n: 50951

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n: 51161

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n: 50329

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

Note: Hydro-Gear p/n: 51462

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

Note: Hydro-Gear p/n: 71579

$

$

Not available

65

BRG, THRUST PLASTIC CAGE

Note: Hydro-Gear p/n: 53502

$

$

Not available

69

ASS'Y, BLOCK 7 PISTON

Note: Hydro-Gear p/n: 71971

$

$

Not available

70

WASHER .63X1.0X.05

Note: Hydro-Gear p/n: 44371

$

$

Not available

71

RING, RETAINING_.625

Note: Hydro-Gear p/n: 44145

$

$

Not available

72

GEAR, 13T, STEEL

Note: Hydro-Gear p/n: 52342

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear p/n: 52150

$

$

Not available

74

WASHER .72X1.16X.04

Note: Hydro-Gear p/n: 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n: 50132

$

$

Not available

81

GEAR, 46T

Note: Hydro-Gear p/n: 52343

$

$

Not available

82

GEAR, 11T, STEEL

Note: Hydro-Gear p/n: 52586

$

$

Not available

83

JACK SHAFT (PIN)

Note: Hydro-Gear p/n: 51083

$

$

Not available

90

RING, RET 2.06 INT

Note: Hydro-Gear p/n: 50859

$

$

Not available

91

GEAR, 54T

Note: Hydro-Gear p/n: 53327

$

$

Not available

92

SPACER, .750 X 1.320 X .257

Note: Hydro-Gear p/n: 53336

$

$

Not available

93

BEARING, BALL, .75 X 40 X 12

Note: Hydro-Gear p/n: 44121

$

$

Not available

94

SHAFT, AXLE

Note: Hydro-Gear p/n: 53527

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n: 50771

$23.99

$

Usually ships in 4-12 days

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n: 50772

$16.99

$

In Stock, only 1 left!

0

97

KIT, HUB, 5 BOLT

Note: Hydro-Gear p/n: 71691

$

$

Not available

HUB, TAPER 3.56, 5 BOLT

$

$

Not available

STUD, 1/2-20 X 1.5 (RIB NECK)

Note: (RIB NECK)

$

$

Not available

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n: 50863

$7.49

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

Note: Hydro-Gear p/n: 52776

$

$

Not available

101

SHAFT, BRAKE

Note: Hydro-Gear p/n: 52640

$

$

Not available

102

KIT, HANDLE, ACTUATING

Note: Hydro-Gear p/n: 71980

$

$

Not available

103

CLIP, RETAINING

Note: Hydro-Gear p/n: 52027

$

$

Not available

105

SCREW, HEX FLANGE 1/4-20X.625

Note: Hydro-Gear p/n: 53464

$

$

Not available

106

GUARD, FILTER, RH

Note: Hydro-Gear p/n: 52257

$

$

Not available

121

PULLEY, 4.5 X 1.625

Note: Hydro-Gear p/n: 53218

$

$

Not available

122

Gravely 21543703

NUT, HEX 1/2-20 PATCH

Note: Hydro-Gear p/n: 44133

$4.99

$

In Stock, only 4 left!

0

130

TUBE, CONNECTING

Note: Hydro-Gear p/n: 52157

$

$

Not available

131

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: Hydro-Gear p/n: 50273

$

$

Not available

132

Gravely 21544005

O-RING HYDROGEAR 52250

Note: Hydro-Gear p/n: 52250

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

Note: Hydro-Gear p/n: 53468

$

$

Not available

134

SCREW, HEX FLANGE 1/4-20X.625

Note: Hydro-Gear p/n: 53464

$

$

Not available

140

SPACER .320 X 1.005 X .179

Note: Hydro-Gear p/n: 52527

$

$

Not available

141

ARM, NEUTRAL RIGHT

Note: Hydro-Gear p/n: 51945

$

$

Not available

142

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n: 51616

$

$

Not available

146

Gravely 21543871

WASHER

Note: Hydro-Gear p/n: 51950

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear p/n: 51833

$

$

Not available

157

SEAL, LIP 8 X 12 X 3 VC

Note: Hydro-Gear p/n: 53456

$

$

Not available

158

MAGNET, RING

Note: Hydro-Gear p/n: 51100

$

$

Not available

159

SPRING, TORSION CCW

Note: Hydro-Gear p/n: 53429

$

$

Not available

165

TUBE, AXLE 2.04

Note: Hydro-Gear p/n: 53496

$

$

Not available

200

KIT, SEAL

Note: Hydro-Gear p/n: 71976

$

$

Not available

PIN, .25 X .375

$

$

Not available

(10)

O-RING - 111 .103 X 424

$

$

Not available

(26)

SEAL, PLUG 1.250 X .250

$

$

Not available

(30)

SEAL, LIP .375X.75X.25

$

$

Not available

(31)

RING, RET .375 EXTRNL

$

$

Not available

(33)

RING, RET .750 INTRNL

$

$

Not available

(35)

RING, RTNG .375 EXT

$

$

Not available

(41)

SEAL, LIP 12 X 32 X 7

$

$

Not available

(46)

TWHCS 5/16-24 X 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

54

RING, RET. WIRE .561

$

$

Not available

(56)

SEAL, LIP 17X40X7

$

$

Not available

(57)

RING, RETAINING

$

$

Not available

(71)

RING, RETAINING_.625

$

$

Not available

(90)

RING, RET 2.06 INT

$

$

Not available

(96)

SEAL, LIP 1.000 X 2.049 X .375

$

$

Not available

(103)

CLIP, RETAINING

$

$

Not available

(130)

TUBE, CONNECTING

$

$

Not available

(132)

O-RING, -137, 0.103 X 2.050

$

$

Not available

(157)

SEAL, LIP 8 X 12 X 3 VC

$

$

Not available

201

KIT, CENTER SECTION, RH, CHRG

Note: Hydro-Gear p/n: 71972

$

$

Not available

20

CENTER SECTION, RH, CHRG

$

$

Not available

(22)

PLATE, BYPASS

$

$

Not available

24

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

25

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

(26)

SEAL, PLUG 1.250 X .250

$

$

Not available

(27)

HFHCS 3/8-16X1.5 (PATCH)

Note: (PATCH)

$

$

Not available

BEARING, JOURNAL .50X.59X.50

$

$

Not available

135

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 X .875

$

$

Not available

202

KIT, CHARGE RELIEF

Note: Hydro-Gear p/n: 71436

$

$

Not available

135

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 X .875

$

$

Not available

203

KIT, CHARGE PUMP

Note: Hydro-Gear p/n: 71977

$

$

Not available

(131)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

(132)

O-RING, -137, 0.103 X 2.050

$

$

Not available

(133)

COVER, CHARGE PUMP

$

$

Not available

(134)

HFHCS 1/4-20 X .75

$

$

Not available

209

HUB PULLER, 5 BOLT

Note: Hydro-Gear p/n: 71784

$

$

Not available

210

KIT, INPUT SHAFT

Note: Hydro-Gear p/n: 71978

$

$

Not available

52

SHAFT, INPUT

$

$

Not available

53

BRG, BALL 17X 40 X 12

$

$

Not available

54

RING, RET WIRE .561 ID

$

$

Not available

211

KIT, RTN, CW

Note: Hydro-Gear p/n: 71597

$

$

Not available

44

ARM, CONTROL, RH

$

$

Not available

(46)

TWHCS 5/16-24 X 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

145

ASSEMBLY, RTN, CW

$

$

Not available
