991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Seat Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

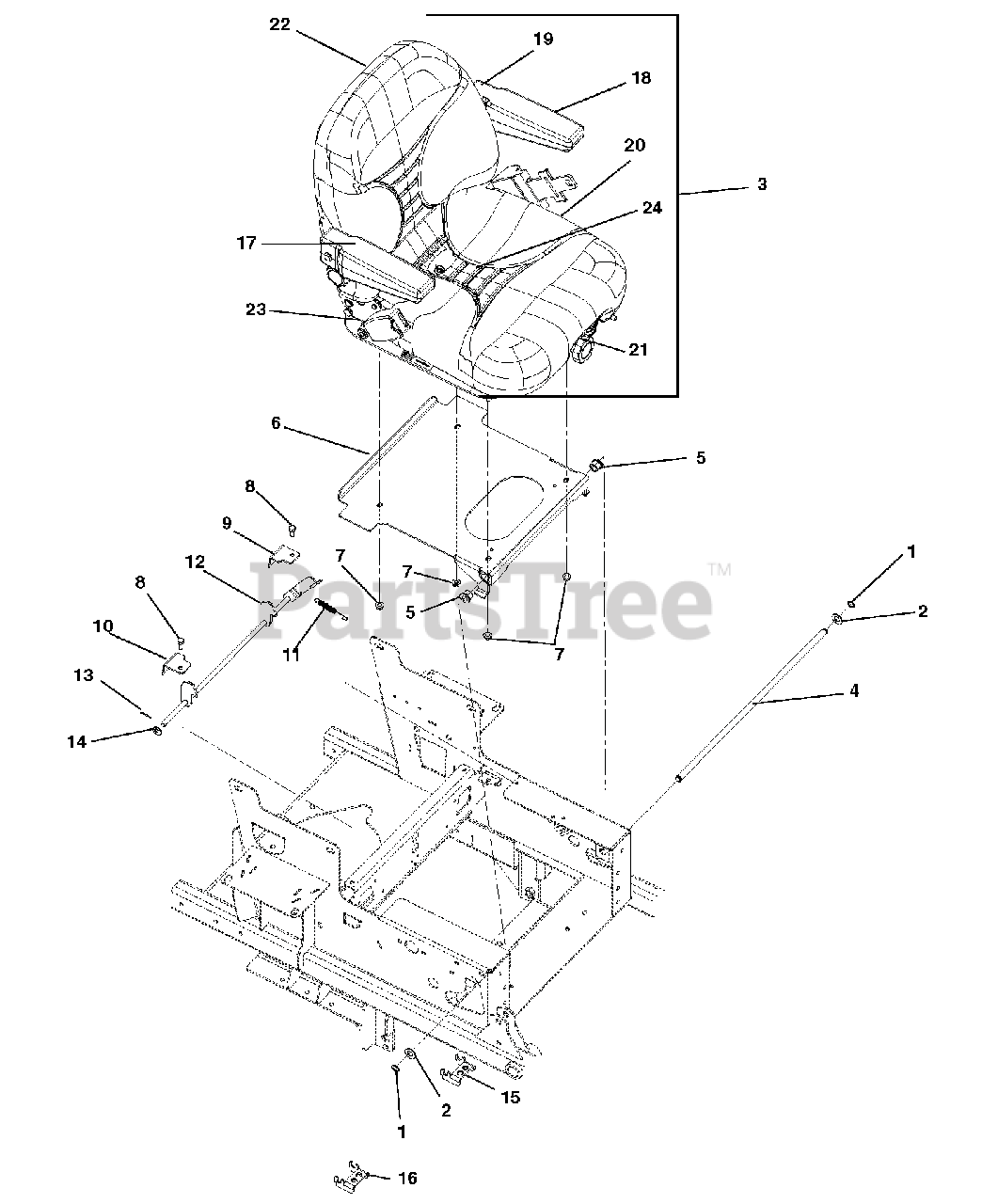

Seat Parts Diagram

  • Title
1

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

2

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04052900

SEAT,SUSP,W/SEAT BELT,LT GRY
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

4

Gravely 03837800

SHAFT, PT100 SEAT PIVOT

$

$

Not available

5

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

6

Gravely 03933251

PRO-TURN100 SEAT PLATE WMT-BLK

$153.99

$

Usually ships in 4-12 days

0

7

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03918551

PT100 LH TOP SEAT LATCH MNT-BL

$

$

Not available

10

Gravely 03917951

PT100 RH TOP SEAT LATCH MNT-BL

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

12

Gravely 03917751

PRO-TURN100 SEAT LATCH WMT-BLK

$64.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

14

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 03930451

PT100 RH SEAT LATCH MNT WMT-BL

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 03930551

PT100 LH SEAT LATCH MNT WMT-BL

$

$

Not available

17

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

18

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

19

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$423.99

$

Usually ships in 4-12 days

0

20

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$258.99

$

In Stock, only 3 left!

0

21

Gravely 59208000

KIT-SEAT KNOB

$

$

Not available

22

Gravely 59208100

KIT-SEAT BACK PANEL

$175.99

$

Usually ships in 4-12 days

0

23

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

24

Gravely 59207800

KIT-SPRING AND SADDLE

$175.99

$

Usually ships in 4-12 days

0
