991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Discharge Chute And Belt Covers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

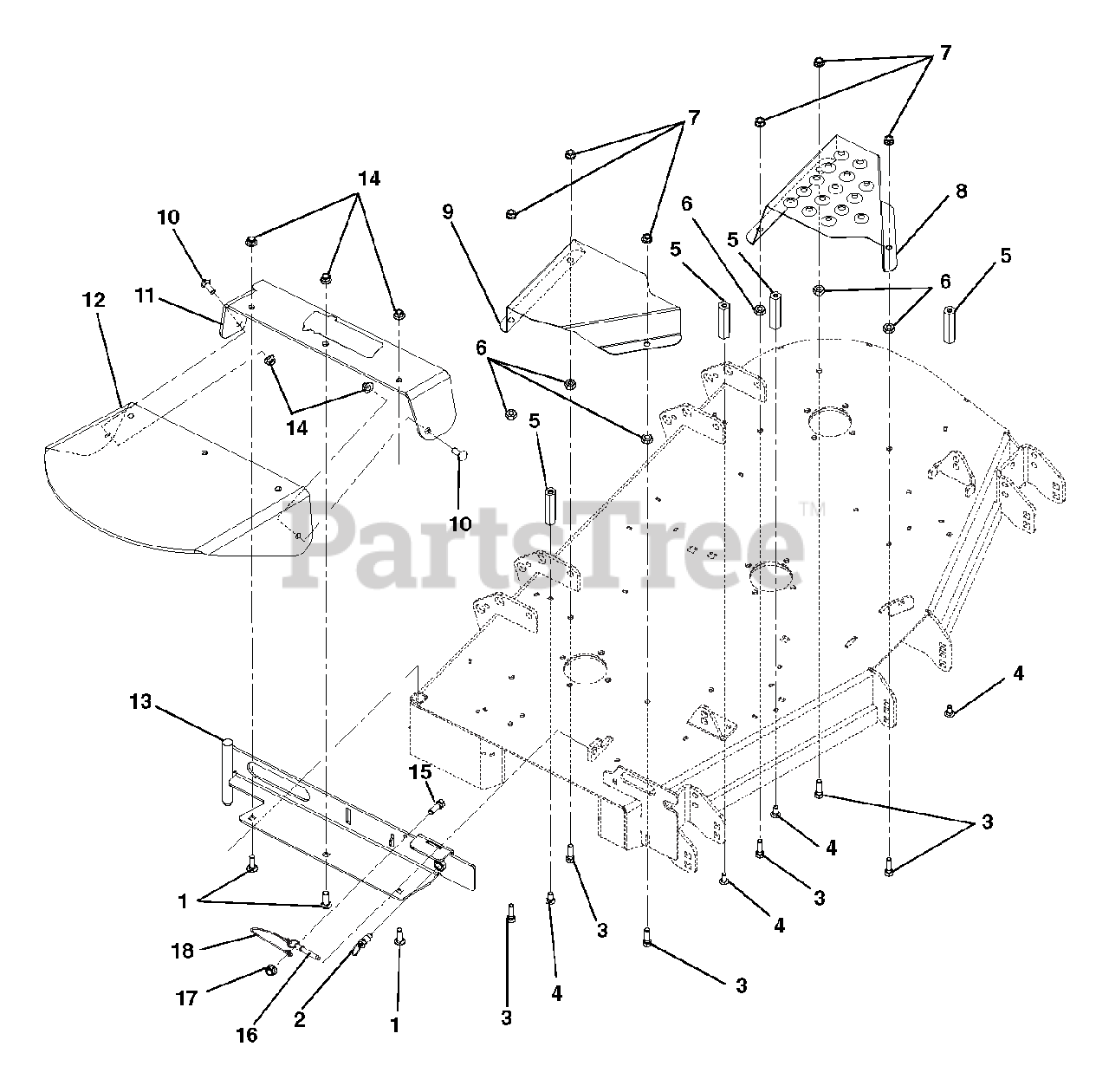

Discharge Chute And Belt Covers Parts Diagram

  • Title
1

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$10.99

$

In Stock, only 1 left!

0

3

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$22.99

$

In Stock, only 3 left!

0

6

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03977151

GUARD,LH DECK BELT,44-52

Note: (076, 077)

$90.99

$

In Stock, only 1 left!

0

Gravely 03977251

GUARD,LH DECK BELT,60

Note: (078)

$71.99

$

In Stock, only 2 left!

0

9

Gravely 04051251

GUARD-44-52 RH SPINDLE SHEAVE

Note: (076)

$60.99

$

Usually ships in 4-12 days

0

Gravely 03982151

GUARD,RH DECK BELT,44-52

Note: (077)

$49.99

$

Usually ships in 4-12 days

0

Gravely 03982251

GUARD,RH DECK BELT,60-66

$60.99

$

Usually ships in 4-12 days

0

10

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

11

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$110.99

$

Usually ships in 4-12 days

0

12

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, only 4 left!

0

13

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

Note: (076)

$112.99

$

Usually ships in 4-12 days

0

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (077, 078)

$129.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (076)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

Note: (076)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (076)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

Note: (076)

$5.99

$

Usually ships in 4-12 days

0
