991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Anti-Scalp Rollers Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

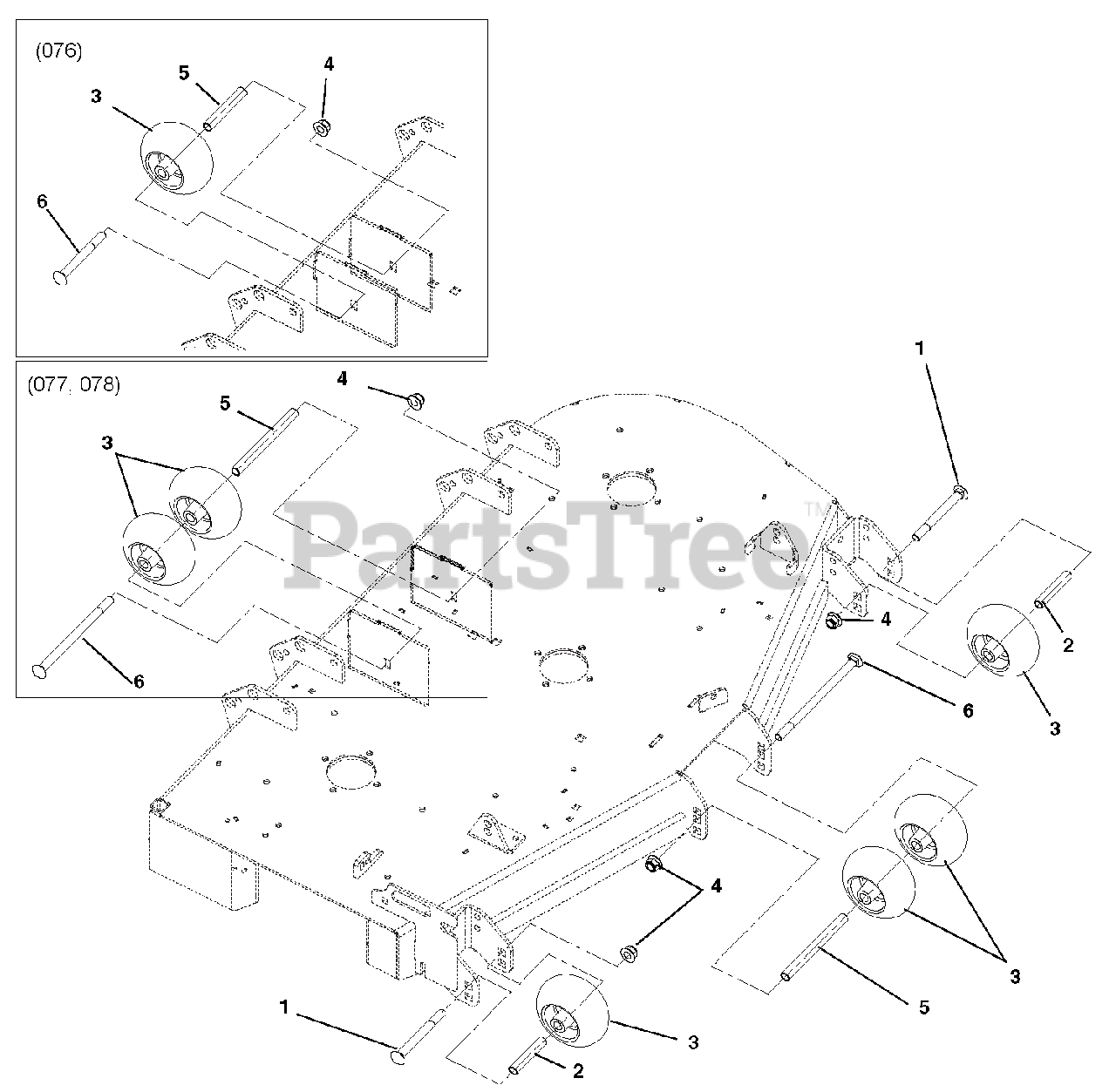

Anti-Scalp Rollers Parts Diagram

  • Title
1

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (076)

$5.99

$

Usually ships in 4-12 days

0

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (077, 078)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 00473700

SPACER, .510X.625X3.35

Note: (076)

$18.99

$

In Stock, Qty 20+

0

Gravely 00473700

SPACER, .510X.625X3.35

Note: (077, 078)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (076)

$11.99

$

In Stock, Qty 20+

0

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (077, 078)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00473800

SPACER, .510X.625X6.50

Note: (076)

$21.99

$

In Stock, Qty 20+

0

Gravely 00473800

SPACER, .510X.625X6.50

Note: (077, 078)

$21.99

$

In Stock, Qty 20+

0

6

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (076)

$6.99

$

In Stock, Qty 20+

0

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (077, 078)

$6.99

$

In Stock, Qty 20+

0
