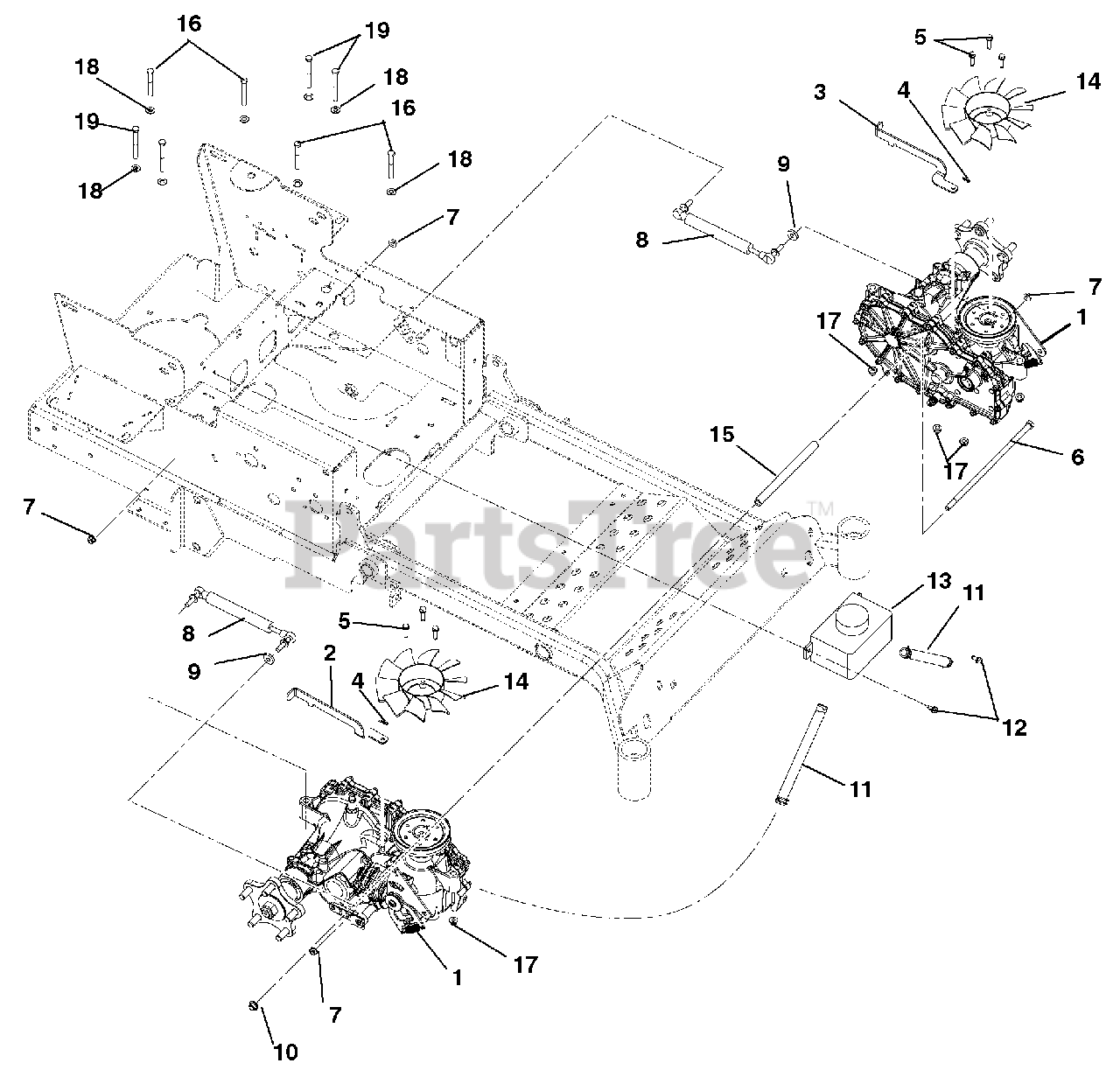

991075 - Ariens Max-Zoom HD 60" Zero-Turn Mower, 24hp Kawasaki (SN: 000101 & Above) Transmission Parts Diagram

Max-Zoom HD 60" Zero-Turn Mower, 24hp Kawasaki

Transmission Parts Diagram

  • Title

1

Ariens 03283700

TRANSAXLE, 3100 SERIES - LH
(Superseded to 04827700)

Note: (page 14)

$1571.99

$

Usually ships in 4-12 days

0

2

Ariens 03282851

RH DUMP VALVE LEVER - BLACK

$33.99

$

In Stock, only 1 left!

0

3

Ariens 03282951

LH DUMP VALVE LEVER - BLACK

$33.99

$

Usually ships in 4-12 days

0

4

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

5

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$7.99

$

In Stock, only 1 left!

0

7

Ariens 06500639

NUT, FLG PATCH M8-1.25 BLKZC

$2.99

$

In Stock, only 1 left!

0

8

Ariens 00188700

DAMPER

$97.99

$

In Stock, only 2 left!

0

9

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

10

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03251900

ASM, HYDRO OVERFLOW TANK HOSE

$17.99

$

In Stock, only 2 left!

0

12

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 02958700

TANK, EXPANSION

$31.99

$

In Stock, only 1 left!

0

14

Ariens 03283500

FAN, 2800 SERIES COOLING

$25.99

$

Usually ships in 4-12 days

0

15

Ariens 03367200

SPCR,.406 ID X .630 OD X 7.724

$14.99

$

In Stock, only 1 left!

0

16

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!
